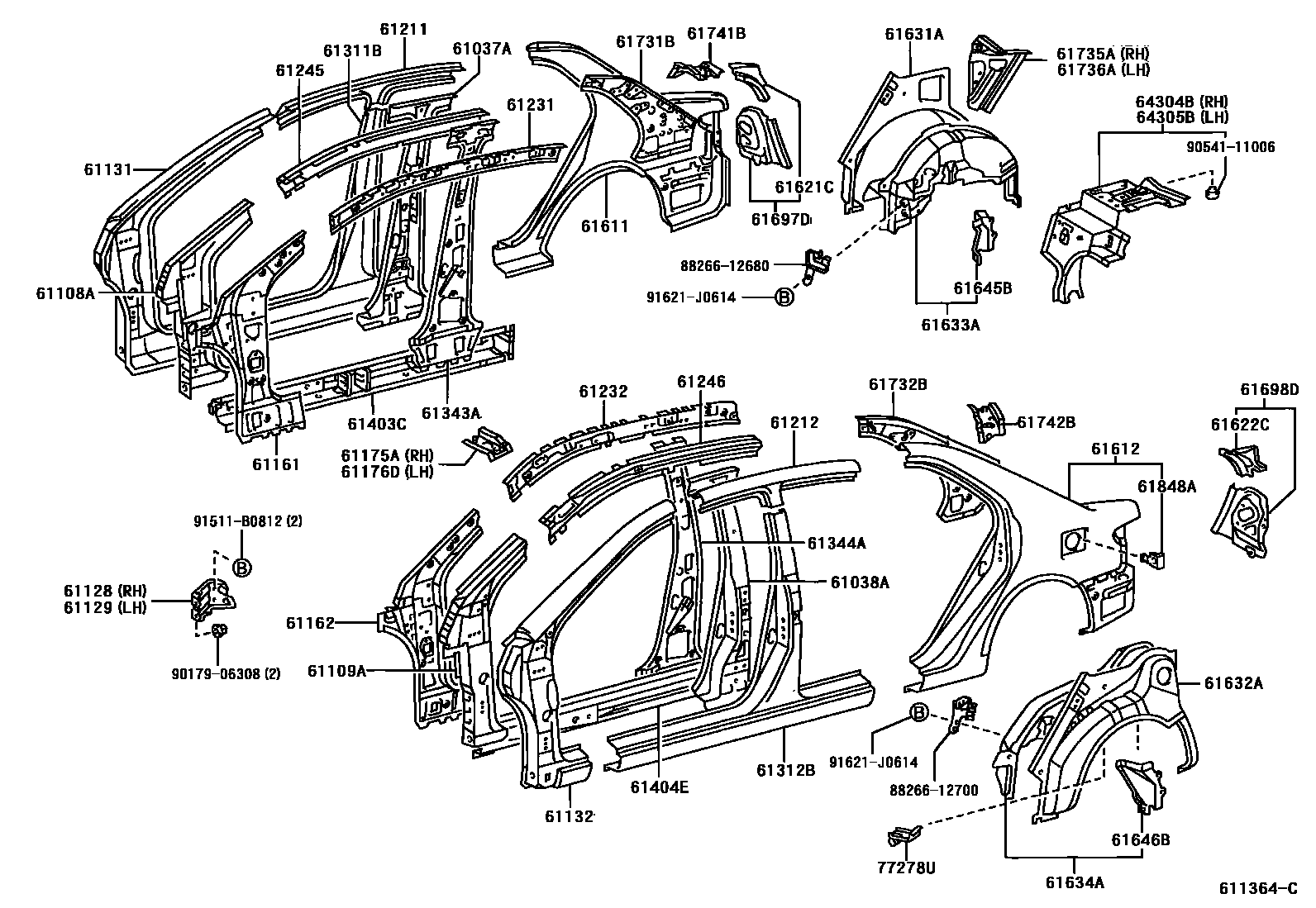

SIDE MEMBER

0001 1 0002 1HOLE PLUG

61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH

main61037-12904iZZE121..LHD..16J;NZE120,ZZE12#..16,16E,16G,18E,18G,18J,J200103-200310

main61037-12907iNZE120,ZZE12#..IDN,IND,MA,PHL,TH,VN200310-200508

61038AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH

main61038-12904iZZE121..16J..TH200103-200307

main61038-12907iNZE120,ZZE12#..IDN,IND,MA,PHL,TH,VN200310-200508

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-12230iNZE120,ZZE12#200103-200508

61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH

main61109-12220iZZE121..LHD..16J;NZE120,ZZE12#..16,16E,16G,18E,18G,18J,J200103-200508

61128REINFORCEMENT, COWL SIDE PANEL, RH

main61103-12190iNZE120,ZZE12#200103-200508

61129REINFORCEMENT, COWL SIDE PANEL, LH

main61104-12220iNZE120,ZZE12#200103-200508

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-12620iZZE122..IND,VN200310

main61131-12630iZZE121..16J..TH200105-200307

main61131-12640iZZE12#..MA200706-200801

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-12630iZZE122..TAIW200310-200712

main61132-12640iNZE120,ZZE121..LHD..(16J,J)200103-200403

main61132-12650iZZE12#..MA200706-200801

61161PILLAR, FRONT BODY, UPPER INNER RH

main61023-02901iNZE120,ZZE12#200211-200508

SOUTH AFLICA SPEC;ARGENTINA SPEC;BRAZIL SPEC

main61023-12300iNZE120,ZZE12#200205-200508

main61023-12320iNZE120,ZZE12#200103-200205

61162PILLAR, FRONT BODY, UPPER INNER LH

main61024-02901iNZE120,ZZE12#200211-200508

SOUTH AFLICA SPEC;ARGENTINA SPEC;BRAZIL SPEC

main61024-12300iZZE122;ZZE121..TAIW,TH;ZZE121..MTM..PHL;ZZE121..ATM..16E..(MA,PHL)200310-200808

main61024-12320iNZE120,ZZE12#200103-200205

61175AREINFORCEMENT, FRONT PILLAR, UPPER OUTER NO.2 RH

main61175-12140iNZE120,ZZE12#200103-200108

main61175-12170iZZE12#..IDN,TH200311-200801

main61175-12190iNZE120,ZZE12#..TAIW,VN200108-200403

61176DREINFORCE, FRONT BODY PILLAR, UPPER OUT NO.2 LH

main61176-12150iNZE120,ZZE12#200103-200108

main61176-12170iZZE12#..TAIW200310-200712

main61176-12180iZZE12#..IDN,IND,MA,PHL,TH200108-200508

61211RAIL, ROOF SIDE, OUTER RH

main61211-12420iZZE12#..TAIW200310-200712

61212RAIL, ROOF SIDE, OUTER LH

main61212-12420iZZE121..16J..TH200103-200307

61231RAIL, ROOF SIDE, INNER RH

main61231-1A100iZZE12#..IDN,IND,MA,PHL,TH200211-200308

W/O(MOON ROOF)

main61231-1A140iZZE12#..IDN,IND,MA,PHL,TH200310-200508

61232RAIL, ROOF SIDE, INNER LH

main61232-12870iZZE12#..IDN,IND,MA,PHL,TH200211-200308

W/O(MOON ROOF)

main61232-1A020iNZE120,ZZE12#..TAIW,VN200212-200508

61245REINFORCEMENT, ROOF SIDE RAIL, OUTER RH

main61245-12040iNZE120,ZZE12#200103-200508

61246REINFORCEMENT, ROOF SIDE RAIL, OUTER LH

main61246-12040iZZE121..16J..TH200103-200307

61311BPILLAR, CENTER BODY, OUTER RH

main61311-12340iZZE122..IND,VN200310

main61311-12350iZZE12#..(16E,18E,18G)..TH200311-200801

W(SIDE MUDGUARD)

61312BPILLAR, CENTER BODY, OUTER LH

main61312-12380iZZE12#..ATM..MA200310-200706

main61312-12390iZZE122..18E..TAIW200411-200712

W(SIDE MUDGUARD)

61343APILLAR, CENTER BODY, INNER RH

main61343-12190iNZE120,ZZE12#..TAIW,VN200108-200310

main61343-12240iNZE120,ZZE12#..TAIW,VN200103-200108

main61343-12250iNZE120,ZZE12#..IDN,IND,MA,PHL,TH,VN200310-200508

61344APILLAR, CENTER BODY, INNER LH

main61344-12190iNZE120,ZZE12#..TAIW,VN200108-200310

main61344-12240iNZE120,ZZE12#..TAIW,VN200103-200108

main61344-12250iZZE121..MTM..PHL;ZZE12#..ATM..(16E,18G)..PHL200311-200802

61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH

main61403-12030iZZE12#..(16,16E,18E,18G,18J)..(IDN,TH)200310-200801

61404EREINFORCE SUB-ASSY, ROCKER, OUTER LH

main61404-12030iZZE121..16J..TH200103-200307

61611PANEL, QUARTER, RH

main61601-12A00iZZE121..16J..TH200311-200801

main61601-1H140iZZE121..16J..TH200103-200307

main61601-1H150iZZE12#..MA200706-200801

61612PANEL, QUARTER, LH

main61602-12A00iZZE121..16J..TH200311-200801

main61602-1E870iZZE121..16;ZZE121..(16E,16J)..(MA,PHL,TAIW);NZE120,ZZE122..IDN,IND,MA,TAIW,VN200103-200508

main61602-1E880iZZE121..ATM..PHL200605-200802

W(SIDE MUDGUARD)

61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH

main61621-12470iNZE120,ZZE12#200103-200508

61622CTROUGH, LUGGAGE COMPARTMENT OPENING, LH

main61622-12470iZZE121..16J..TH200103-200307

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-12410iNZE120,ZZE12#200103-200508

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-12430iZZE121..16J..TAIW;NZE120,ZZE12#..IDN,IND,MA,PHL,TH,VN200103-200508

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61607-02914iZZE121..TAIW,TH200310-200407

W(FIXED TYPE REAR SEAT )

main61607-02915iZZE122..(18E,18G)..IND200412-200508

main61607-02916iZZE121..ATM..16E..TH200311-200407

W(FIXED TYPE REAR SEAT & ABS)

main61607-02917iZZE122..18E..TAIW;ZZE122..(18E,18G)..IND200211-200412

W(FOLDING REAR SEAT)

main61607-12923iZZE12#..(16J,18E)..TAIW200211-200310

BRAZIL SPEC

main61607-12924iZZE12#..(16E,18E,18G)..TAIW200103-200310

W(ABS)

main61607-12927iZZE121..16J..TAIW200103-200310

main61607-12928iZZE121..MA200605-200801

W(FIXED TYPE REAR SEAT & ABS)

main61607-12947iZZE122..(18E,18J)..(IDN,TAIW)200407-200801

W(FOLDING REAR SEAT)

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61608-02912iZZE12#..(16E,16J,18J)..(IND,TH)200211-200407

W(FIXED TYPE REAR SEAT )

main61608-02913iZZE122..(18E,18G)..(IDN,TH)200407-200801

main61608-02914iZZE121..ATM..16J..TH;ZZE121..MTM..(16E,16J)..TH200105-200211

main61608-02915iZZE122..(18E,18G)..IND;ZZE12#..(16J,18E)..TAIW200211-200412

W(FOLDING REAR SEAT)

main61608-12925iZZE121..TH200407-200801

W(FIXED TYPE REAR SEAT )

main61608-12926iZZE122..18J..IND200412-200508

61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH

main61645-12150iNZE120,ZZE12#200103-200508

61646BGUSSET, QUARTER WHEEL HOUSE, REAR LH

main61646-12140iNZE120,ZZE12#200103-200508

61697DHOUSING, QUARTER PANEL END, RH

main61697-02901iZZE12#..MA,PHL200103-200401

main61697-02904iZZE121..16E..(PHL,TH);ZZE121..MTM..16J..PHL;ZZE122..IDN,IND,MA,PHL,TH,VN;ZZE12#..ATM..(16E,16J,18E)..(MA,TAIW)200310-200808

61698DHOUSING, QUARTER PANEL END, LH

main61698-02901iZZE12#..(16J,18E,18G)..TAIW200103-200310

main61698-02904iZZE12#..(16J,18E)..TAIW200310-200712

61731BPANEL, ROOF SIDE, INNER RH

main61731-12680iNZE120,ZZE12#..(16J,18E,18G,J)..(TAIW,VN)200105-200308

main61731-12760iZZE122..IND200412-200508

61732BPANEL, ROOF SIDE, INNER LH

main61732-12640iNZE120,ZZE12#..TAIW,VN200108-200308

main61732-12710iNZE120,ZZE12#..TAIW,VN200105-200108

61735APANEL, ROOF SIDE, INNER REAR RH

main61735-12380iNZE120,ZZE12#200103-200508

61736APANEL, ROOF SIDE, INNER REAR LH

main61736-12380iNZE120,ZZE12#200103-200508

61741BREINFORCEMENT, BACK WINDOW OPENING, RH

main61741-12130iZZE122..IND,MA;ZZE121..ATM..MA200311

main61741-12150iNZE120,ZZE12#..TAIW,VN200108-200403

61742BREINFORCEMENT, BACK WINDOW OPENING, LH

main61742-12100iZZE12#..IDN,IND,MA,PHL,TH200105-200508

main61742-12110iZZE12#..TAIW200310-200712

61848ARETAINER, QUARTER PANEL, LH

main61848-52010iZZE12#..TAIW200310-200712

64304BREINFORCE SUB-ASSY, PACKAGE TRAY BRACKET, RH

main64304-02050iZZE122..(18E,18G)..IND200508

main64304-12040iZZE12#..IDN,TH200310-200801

64305BREINFORCE SUB-ASSY, PACKAGE TRAY BRACKET, LH

main64305-02050iZZE122..(18E,18G)..IND200412-200508

main64305-12040iZZE12#..TAIW200310-200712

77278UBRACKET, FUEL TANK FILLER PIPE PROTECTOR

main77278-32050iNZE120,ZZE12#200103-200508

8826612680CLAMP, AIR SUSPENSION SENSOR, NO.1

main88266-12680

8826612700CLAMP, AIR SUSPENSION SENSOR, NO.1

main88266-12700

9017906308

main90179-06308

9054111006

main90541-11006

91511B0812

main91511-B0812

91621J0614

main91621-J0614

52 parts on this diagram · 2 diagrams in section
