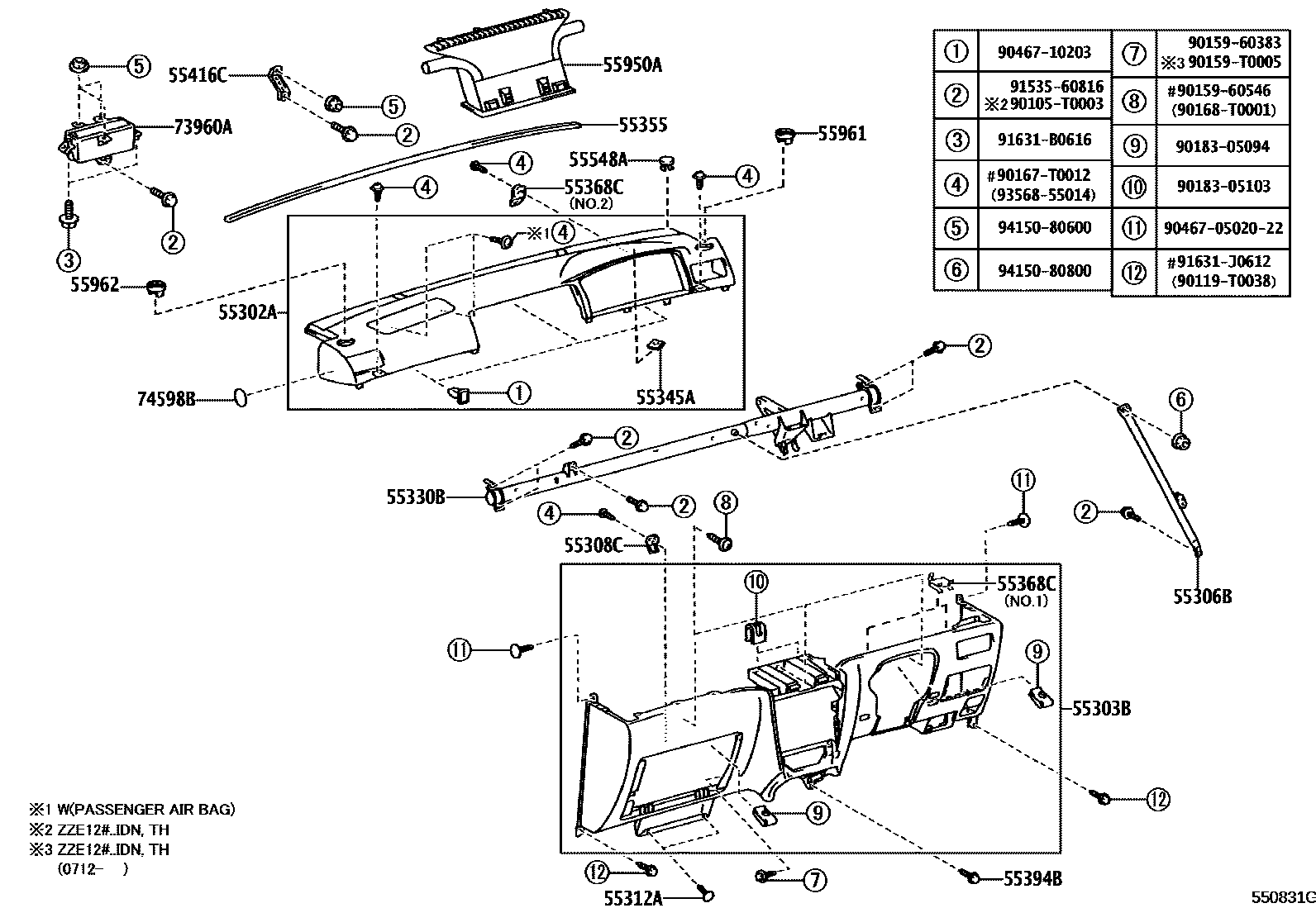

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE 0005 1 0006 1DRIVER SIDE 0007 1CENTER 0008 1PASSENGER SIDE

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-02020-B0iZZE121..(16,16J)..TH200311-200801

DK.GRAY,TRIM1#

main55302-02020-E0iZZE12#..(16E,18J)..(IDN,TH)200105-200311

SANDAL WOOD,TRIM0#

main55302-02040-B0iZZE122..18E..TAIW200103-200211

DK.GRAY,TRIM1#

main55302-02040-E0iZZE122..18G..TAIW200211-200310

SANDAL WOOD,TRIM0#

main55302-02041-B0iZZE121..MTM..PHL;ZZE121..ATM..16E..PHL200310-200802

DK.GRAY,TRIM1#

main55302-02041-E0iZZE122..TAIW200310-200712

SANDAL WOOD,TRIM0#

main55302-02050-B0iZZE122..18E..TH200105-200311

DK.GRAY,TRIM1#

main55302-02050-E0iZZE122..(18E,18G)..(IDN,TH)200311-200801

W(SRS AIR BAG,PASSENGER SIDE),SANDAL WOOD,TRIM0#

main55302-02060-B0iZZE12#..LHD..ATM..(16G,18G)200103-200309

W(SRS AIR BAG,PASSENGER SIDE),DK.GRAY,TRIM1#

main55302-02060-E0iZZE122..18G..TAIW200103-200309

W(SRS AIR BAG,PASSENGER SIDE),SANDAL WOOD,TRIM0#

main55302-02061-B0iZZE122..PHL200310-200802

W(SRS AIR BAG,PASSENGER SIDE),DK.GRAY,TRIM1#

main55302-02061-E0iZZE122..18G..TAIW200309-200310

W(SRS AIR BAG,PASSENGER SIDE),SANDAL WOOD,TRIM0#

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-02061-A0iZZE12#..RHD..(16E,18E,18G,18J)200105-200508

IVORY,TRIM0#

main55303-02061-B0iZZE121..(16,16J)..TH200105-200311

STONE,TRIM1#

main55303-02061-B1iZZE122..18E..TH200105-200311

DK.GRAY,TRIM1#

main55303-02061-B2iZZE121..(16,16J)..TH200311-200504

MD.GRAY,TRIM1#

main55303-02071-A0iZZE122..TAIW200310-200712

IVORY,TRIM0#

main55303-02071-B0iZZE122..18E..TAIW200103-200310

STONE,TRIM17

main55303-02071-B1iZZE122..18E..TAIW200411-200712

DK.GRAY,TRIM15

main55303-02071-B2iZZE121..MTM..PHL;ZZE12#..ATM..(16E,18G)..PHL200310-200802

MD.GRAY,TRIM1#

main55303-02180-A0iZZE12#..(16E,18E,18G,18J)..(IDN,TH)200504-200801

IVORY,TRIM0#

main55303-02180-B0iZZE121..(16,16J)..TH200504-200801

MD.GRAY,TRIM1#

55306BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL

main55306-02080iZZE12#..TAIW200310-200712

main55306-02090iZZE12#..MA200203-200401

main55306-12270iZZE12#..IDN,MA200107-200203

main55306-12310iNZE120,ZZE122..VN200107-200403

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-02080iZZE12#..MA200203-200401

main55308-12280iNZE120,ZZE122..VN200103-200403

55312ACLIP, INSTRUMENT PANEL

main90467-06089-C0×2iZZE121..TAIW; ZZE122..TAIW200310-200712

BLACK,TRIM0#,1#; BLACK,TRIM1#

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-02090iZZE121..16E..TAIW200103-200211

main55330-02100iZZE12#..TH200105-200311

main55330-02140iZZE12#..TAIW200310-200712

main55330-02150iZZE12#..IDN,TH200311-200504

main55330-02350iZZE12#..IDN,TH200504-200602

main55330-02351iZZE12#..IDN,TH200603-200801

main55330-12390iZZE12#..IDN,MA200107-200111

main55330-12400iNZE120,ZZE12#..PHL,VN200107-200111

main55330-12490iZZE122..IDN200111-200311

main55330-12510iNZE120,ZZE122..VN200111-200403

55345ACLIP, INSTRUMENT PANEL, NO.1

main55345-12060iNZE120,ZZE121;ZZE122..18E..TAIW;ZZE122..IDN,IND,MA,PHL,TH,VN200103-200508

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-02070iZZE12#..IDN,TH200311-200801

main55355-52012iZZE122..VN200310

55368CBRACKET, METER MOUNTING

main55362-02020×2iNZE120,ZZE12#..LHD200103-200403

NO.1

main55362-12050×2iZZE12#..IDN,MA200203-200401

NO.1

main55368-02070iZZE121..ATM..MA;ZZE122..IND,MA,VN200311

NO.2

main55368-12090iZZE12#..TAIW200310-200712

NO.2

55394BBOLT, INSTRUMENT PANEL

main55394-12010iZZE12#..TAIW200310-200712

OD=6

main55394-12020iZZE12#..MA200203-200401

OD=7

55416CRETAINER, INSTRUMENT CLUSTER FINISH PANEL

main55416-12030iZZE121..MTM..PHL;ZZE121..ATM..16E..PHL200310-200802

55548ACOVER, INSTRUMENT PANEL HOLE

main55548-02030-B0iZZE12#..(16E,18G)..(PHL,VN)200310-200605

DK.GRAY,TRIM1#

main55548-02030-E0iZZE122..IND;ZZE121..ATM..MA200311

SANDAL WOOD,TRIM0#

55950ANOZZLE ASSY, DEFROSTER

main55950-02030iZZE122..IND,MA;ZZE121..ATM..MA200311

main55950-02060iNZE120,ZZE122..VN200103-200403

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-02030-B0iZZE12#..(16J,18G)..TAIW; ZZE122..18E..TAIW200310-200712

DK.GRAY,TRIM1#; DK.GRAY,TRIM14,15

main55961-02030-E0iZZE122..TAIW200103-200310

SANDAL WOOD,TRIM0#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55961-02030-B0iZZE12#..(16J,18G)..TAIW; ZZE122..18E..TAIW200103-200310

DK.GRAY,TRIM1#; DK.GRAY,TRIM17,18

main55961-02030-E0iZZE122..TAIW200310-200712

SANDAL WOOD,TRIM0#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-02030iZZE121..ATM..16E..TH;ZZE122..(18E,18G)..(IDN,TH)200311-200801

main73960-12030iZZE12#..(16E,18G)..(IDN,MA)200107-200401

main73960-12060iZZE122..18G..TAIW200310-200712

74598BLABEL, PASSENGER AIRBAG CAUTION

main74598-02040iZZE121..ATM..MA;ZZE122..IND,MA,PHL200311-200802

main74598-20010iZZE122..IND200803

90105T0003

main90105-T0003

90119T0038

main90119-T0038

9015960383

main90159-60383

9015960546

main90159-60546

90159T0005

main90159-T0005

90167T0012

main90167-T0012

90168T0001

main90168-T0001

9018305094

main90183-05094

9018305103

main90183-05103

904670502022

main90467-0502022

9046710203

main90467-10203

9153560816

main91535-60816

91631B0616

main91631-B0616

91631J0612

main91631-J0612

9356855014

main93568-55014

9415080600

main94150-80600

9415080800

main94150-80800

34 parts on this diagram · 8 diagrams in section
