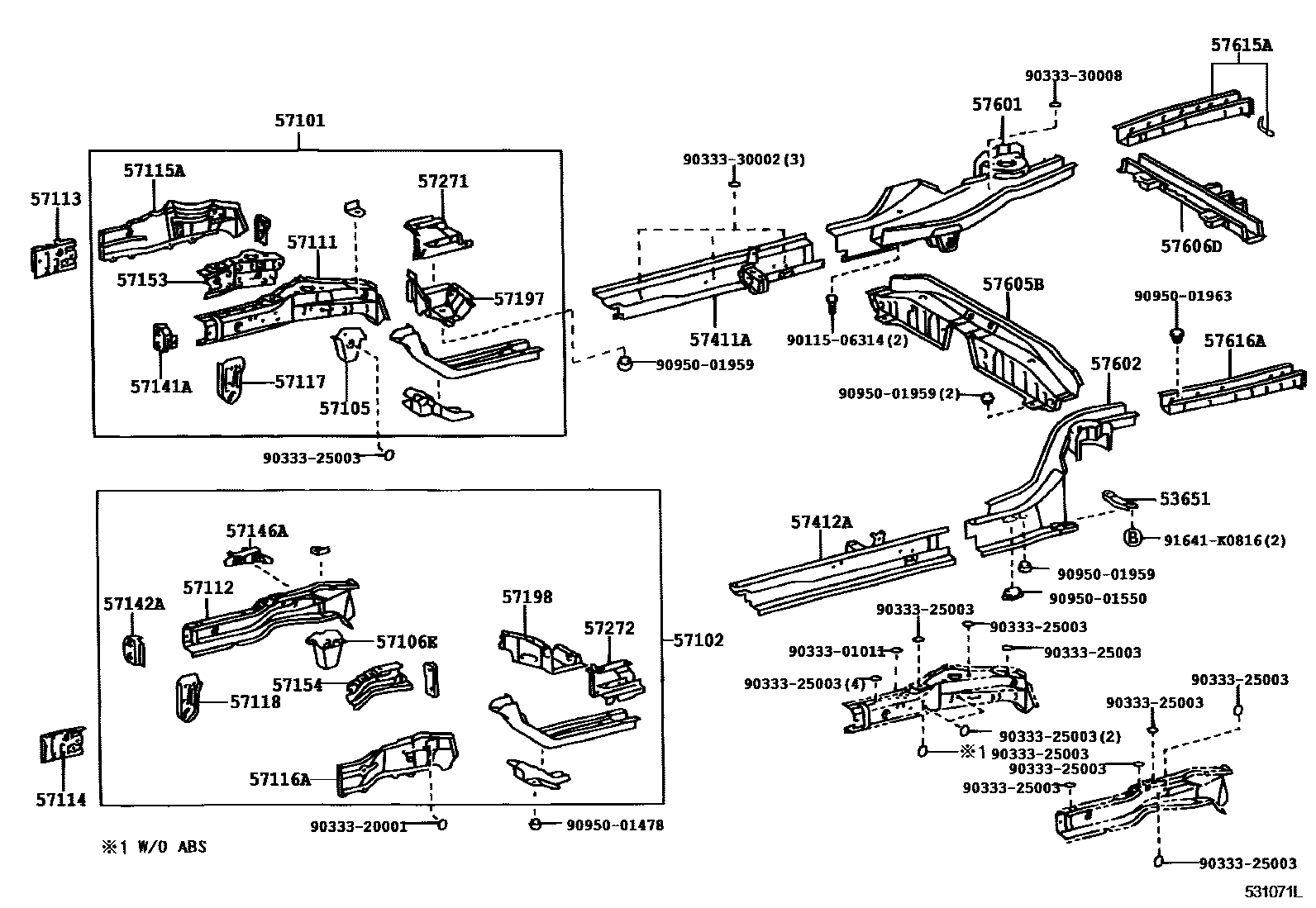

FLOOR SIDE MEMBER

53651BRACE, REAR FLOOR SIDE MEMBER

main53651-32010×2iZZE121..MTM..PHL;ZZE12#..ATM..(16E,18G)..PHL200310-200802

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-02260iZZE122..IND200412-200508

main57101-02270iZZE122..IND200508

main57101-12890iZZE121..16200311-200801

main57101-12A00iZZE121..MTM..PHL;ZZE12#..ATM..(16E,18G)..PHL200311-200802

main57101-1A020iZZE12#..TAIW200103-200310

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-12810iNZE120,ZZE12#..IDN,IND,MA,PHL,TH,VN200105-200508

main57102-12830iZZE12#..TAIW200310-200712

main57102-12A00iZZE121..ATM..MA;ZZE122..IND,MA,VN200311

main57102-12A10iZZE12#..PHL200401-200802

57105BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT RH

main57105-12140iZZE12#..IDN,TH200310-200801

57106EBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT LH

main57106-12130iZZE121..MTM..PHL;ZZE12#..ATM..(16E,18G)..PHL200310-200802

57111MEMBER, FRONT SIDE, RH

main57111-02080iZZE122..IND200508

main57111-12210iZZE12#..TAIW200310-200712

57112MEMBER, FRONT SIDE, LH

main57112-12170iZZE12#..IDN,IND,MA,TAIW,TH200103-200508

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-12190iNZE120,ZZE12#200103-200508

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-12160iZZE121..MTM..PHL;ZZE12#..ATM..(16E,18G)..PHL200310-200802

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-12080iNZE120,ZZE12#200103-200508

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-12080iNZE120,ZZE12#200103-200508

57117PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT RH

main57117-12130iZZE12#..IDN,TH200310-200801

57118PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT LH

main57118-12130iNZE120,ZZE12#..PHL,VN200107-200403

57141ASUPPORT, FRONT BUMPER ARM, RH

main57141-12050iNZE120,ZZE12#..IDN,IND,MA,PHL,TH,VN200105-200508

main57141-12060iZZE12#..TAIW200103-200310

main57141-12090iZZE121..MTM..PHL;ZZE12#..ATM..(16E,18G)..PHL200311-200802

57142ASUPPORT, FRONT BUMPER ARM, LH

main57142-12060iNZE120,ZZE12#..IDN,IND,MA,PHL,TH,VN200105-200508

main57142-12070iZZE12#..TAIW200310-200712

main57142-12100iZZE121..ATM..MA;ZZE122..IND,MA,VN200311

57146AREINFORCEMENT, FRONT SIDE MEMBER, REAR LH

main57146-12020iNZE120,ZZE12#..PHL,VN200107-200403

57153REINFORCEMENT, FRONT SIDE MEMBER, NO.2 RH

main57016-12080iZZE12#..TAIW200103-200310

57154REINFORCEMENT, FRONT SIDE MEMBER, NO.2 LH

main57017-12060iNZE120,ZZE12#..PHL,VN200107-200403

57197BOX, TORQUE, FRONT RH

main57197-12030iNZE120,ZZE12#..IDN,IND,MA,PHL,TH,VN200105-200508

57198BOX, TORQUE, FRONT LH

main57198-12030iZZE12#..TAIW200310-200712

57271EXTENSION, STEERING GEAR BOX SUPPORT MEMBER, RH

main57271-12090iNZE120,ZZE12#..IDN,IND,MA,PHL,TH,VN200105-200508

57272EXTENSION, STEERING GEAR BOX SUPORT MEMBER, LH

main57272-12090iZZE12#..IDN,TH200310-200801

57411AMEMBER, FLOOR SIDE, INNER RH

main57401-02200iZZE12#..MA,PHL200607-200802

main57401-12570iZZE121..MTM..PHL;ZZE12#..ATM..(16E,18G)..(MA,PHL)200310-200607

57412AMEMBER, FLOOR SIDE, INNER LH

main57402-02200iZZE12#..MA,PHL200607-200802

main57402-12570iZZE12#..TAIW200310-200712

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-02150iZZE121..TAIW200310-200603

main57601-02160iZZE121..TAIW200310-200712

W(FIXED TYPE REAR SEAT)

main57601-02908iZZE121..16J..PHL;ZZE12#..(16,16E,16J,18J)..(IND,TH)200105-200409

W(FIXED TYPE REAR SEAT)

main57601-02909iZZE12#..(16E,16G,18J)..(IDN,MA,PHL);ZZE122..(18E,18G)..(IDN,IND,MA,PHL,TH)200105-200409

W(SPLIT TYPE REAR SEAT)

main57601-13916iZZE122..18J..IND200409-200508

main57601-1A440iNZE120,ZZE121..(16J,J)..(TAIW,VN)200103-200403

W(FIXED TYPE REAR SEAT)

main57601-1A480iZZE121..TAIW200211-200310

W(SPLIT TYPE REAR SEAT)

main57601-1A907iZZE121..ATM..16E..TH200603-200801

W(SPLIT TYPE REAR SEAT)

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-02150iZZE122..TAIW200310-200712

main57602-02160iZZE121..TAIW200310-200712

W(FIXED TYPE REAR SEAT)

main57602-02906iZZE12#..(16E,16G,18J)..(IDN,MA,PHL);ZZE122..(18E,18G)..(IDN,IND,MA,PHL,TH)200105-200409

W(SPLIT TYPE REAR SEAT)

main57602-02907iZZE121..TH;ZZE121..MTM..16J..PHL200311-200407

W(FIXED TYPE REAR SEAT)

main57602-12964iZZE121..TH200407-200801

main57602-1A340iNZE120,ZZE121..(16J,J)..(TAIW,VN)200103-200403

W(FIXED TYPE REAR SEAT)

main57602-1A380iZZE121..TAIW200211-200310

W(SPLIT TYPE REAR SEAT)

main57602-1A905iZZE12#..(16E,16G,18J)..(IDN,MA,PHL);ZZE122..(18E,18G)..(IDN,IND,MA,PHL,TH)200105-200508

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-12180iZZE121..16E..TAIW200103-200211

57606DMEMBER SUB-ASSY, REAR ABSORBER MOUNTING

main57606-02070iZZE12#..TAIW200411-200712

main57606-12130iNZE120,ZZE12#200103-200508

main57606-12190iZZE12#..IDN,TH200310-200801

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-02905iZZE12#..TAIW200310-200311

main57615-02906iZZE121..TH;ZZE121..MTM..PHL;ZZE122..IDN,MA,PHL,TH;ZZE121..ATM..16E..(MA,PHL)200311-200503

CKD SPEC

main57615-12905iZZE122..IND200409-200508

main57801-12130iZZE122..MA,VN;ZZE121..ATM..MA200311

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-02904iNZE120,ZZE12#..TAIW,VN200103-200403

main57616-02905iZZE121..TH;ZZE121..MTM..PHL;ZZE122..IDN,MA,PHL,TH;ZZE121..ATM..16E..(MA,PHL)200311-200503

CKD SPEC

main57616-12909iZZE12#..IDN,IND,MA,PHL,TH200105-200508

9011506314

main90115-06314

9033301011

main90333-01011

9033320001

main90333-20001

9033325003

main90333-25003

9033330002

main90333-30002

9033330008

main90333-30008

9095001478

main90950-01478

9095001550

main90950-01550

9095001959

main90950-01959

9095001963

main90950-01963

91641K0816

main91641-K0816

41 parts on this diagram · 1 diagram in section
