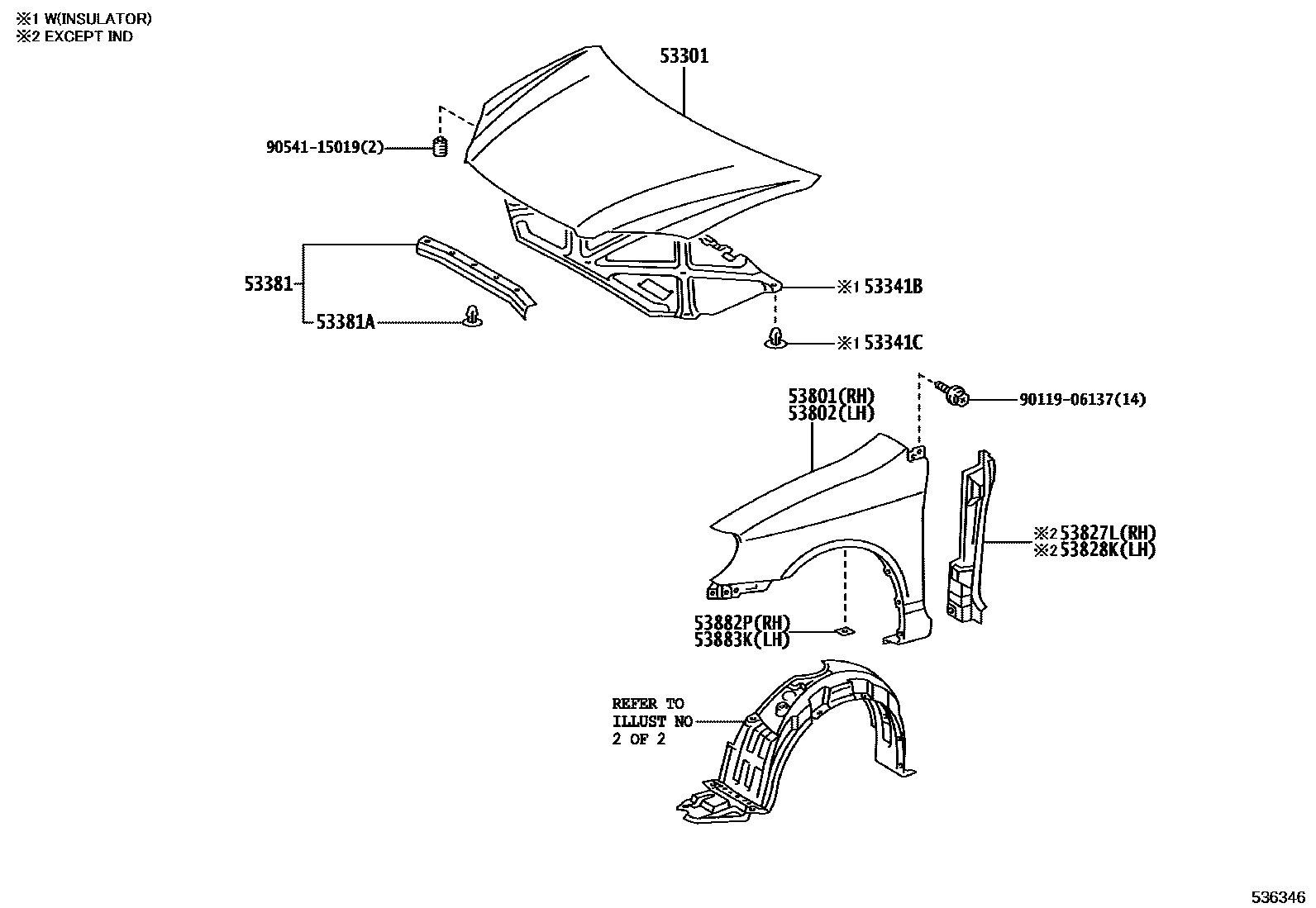

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53301HOOD SUB-ASSY

main53301-12880iNZE120,ZZE12#200103-200802

53341BINSULATOR, HOOD

main53341-02090iZZE121..MTM..PHL;ZZE12#..ATM..(16E,18G)..PHL200109-200802

main53341-02210iZZE122..IND200705

main53341-12150iZZE12#..TAIW200103-200712

53341CCLIP(FOR HOOD INSULATOR)

main90467-08124iZZE12#..IND,MA,VN200509-200802

(J)

main90467-08124iZZE121..MTM..PHL;ZZE121..(16E,16J)..TH;ZZE121..ATM..16E..(MA,PHL);ZZE122..IDN,IND,MA,PHL,TH,VN200103-200712

main90467-T0014iZZE122..IND200509-200801

(L)

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-02040iNZE120,ZZE12#200103-200802

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iZZE121..MTM..PHL;ZZE12#..ATM..(16E,18G)..PHL200103-200802

53801FENDER SUB-ASSY, FRONT RH

main53811-1H140iZZE122..IDN;ZZE121..ATM..16E..TH;ZZE12#..(16,16J,18E)..TH200103-200802

main53811-1H170iZZE12#..(16E,18E,18G)..TH200105-200802

W(SIDE MUDGUARD)

main53811-1H170iZZE12#..MA200706-200801

53802FENDER SUB-ASSY, FRONT LH

main53812-1H020iZZE122..IDN;ZZE121..ATM..16E..TH;ZZE12#..(16,16J,18E)..TH200103-200802

main53812-1H050iZZE121..ATM..PHL200105-200802

W(SIDE MUDGUARD)

main53812-1H050iZZE12#..MA200706-200801

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-12050iZZE12#..TAIW200103-200802

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-12050iNZE120,ZZE12#..IDN,MA,PHL,TAIW,TH,VN200103-200802

53882PSEAL, FRONT FENDER, RH

main53882-16030iNZE120,ZZE12#200103-200802

53883KSEAL, FRONT FENDER, LH

main53882-16030iNZE120,ZZE12#200103-200802

9011906137

main90119-06137

9054115019

main90541-15019

13 parts on this diagram · 2 diagrams in section
