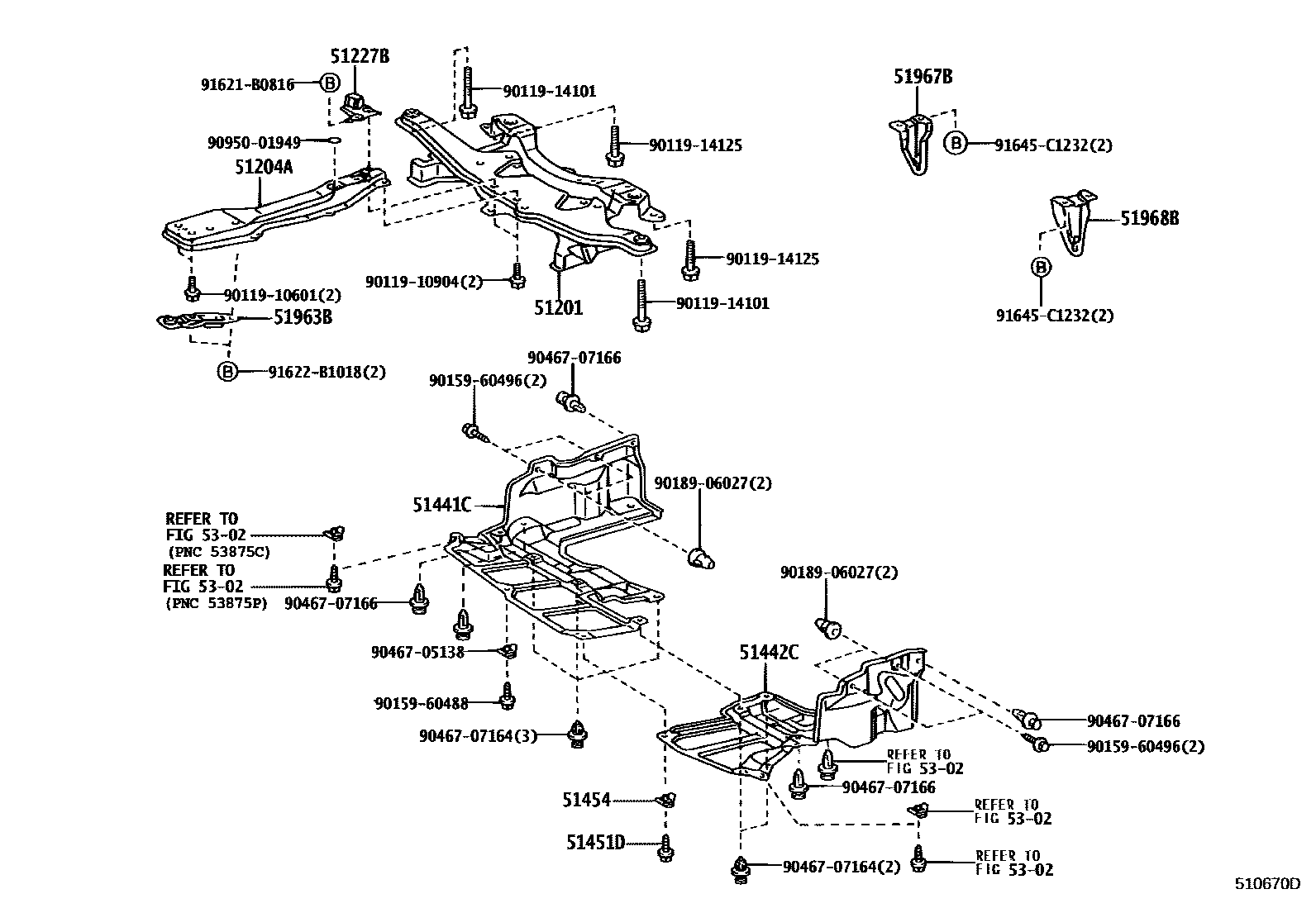

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-12430iNZE120,ZZE12#200111-200303

main51201-12431iZZE12#..TAIW200303-200802

main51201-20350iNZE120,ZZE12#200103-200111

51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER

main51204-12130iZZE121..TH200103-200802

main51204-12150iZZE122..IND,MA,VN200103-200802

51227BDAMPER, FRONT SUSPENSION MEMBER DYNAMIC

main51227-12070iZZE122200103-200802

51441CCOVER, ENGINE UNDER, RH

main51441-02061iZZE12#..IDN,TH200103-200802

main51441-02130iZZE122..IND200301-200508

main51441-02160iZZE12#..TAIW200310-200712

51442CCOVER, ENGINE UNDER, LH

main51442-02091iNZE120,ZZE12#..MTM..(IDN,MA,PHL,TH,VN)200105-200802

main51442-02101iZZE12#..ATM..(IDN,MA,PHL,TAIW,TH)200103-200802

main51442-02220iZZE122..IND200301-200508

main51442-02250iZZE12#..TAIW200310-200712

51451DSCREW, NO.1

main90159-60488iNZE120,ZZE12#200103-200508

51454CLIP

main90467-05138iNZE120,ZZE12#200103-200508

51963BHOOK, TRANSPORT, FRONT RH

main51963-02070iZZE12#..IND,TH200202-200801

main51963-12240iZZE121..MTM..PHL;ZZE12#..ATM..(16E,18G)..PHL200103-200802

51967BHOOK, TRANSPORT, REAR RH

main51967-12270iZZE12#..IDN,IND,MA,PHL200107-200802

51968BHOOK, TRANSPORT, REAR LH

main51968-02060iZZE121..MTM..PHL;ZZE12#..ATM..(16E,18G)..PHL200202-200802

main51968-12170iZZE12#..IDN,MA,PHL200105-200203

main51968-12200iNZE120,ZZE12#..TAIW,VN200103-200712

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

9011910601

main90119-10601

9011910904

main90119-10904

9011914101

main90119-14101

9011914125

main90119-14125

9015960488

main90159-60488

9015960496

main90159-60496

9018906027

main90189-06027

9046705138

main90467-05138

9046707164

main90467-07164

9046707166

main90467-07166

9095001949

main90950-01949

91621B0816

main91621-B0816

91622B1018

main91622-B1018

91645C1232

main91645-C1232

25 parts on this diagram · 2 diagrams in section
