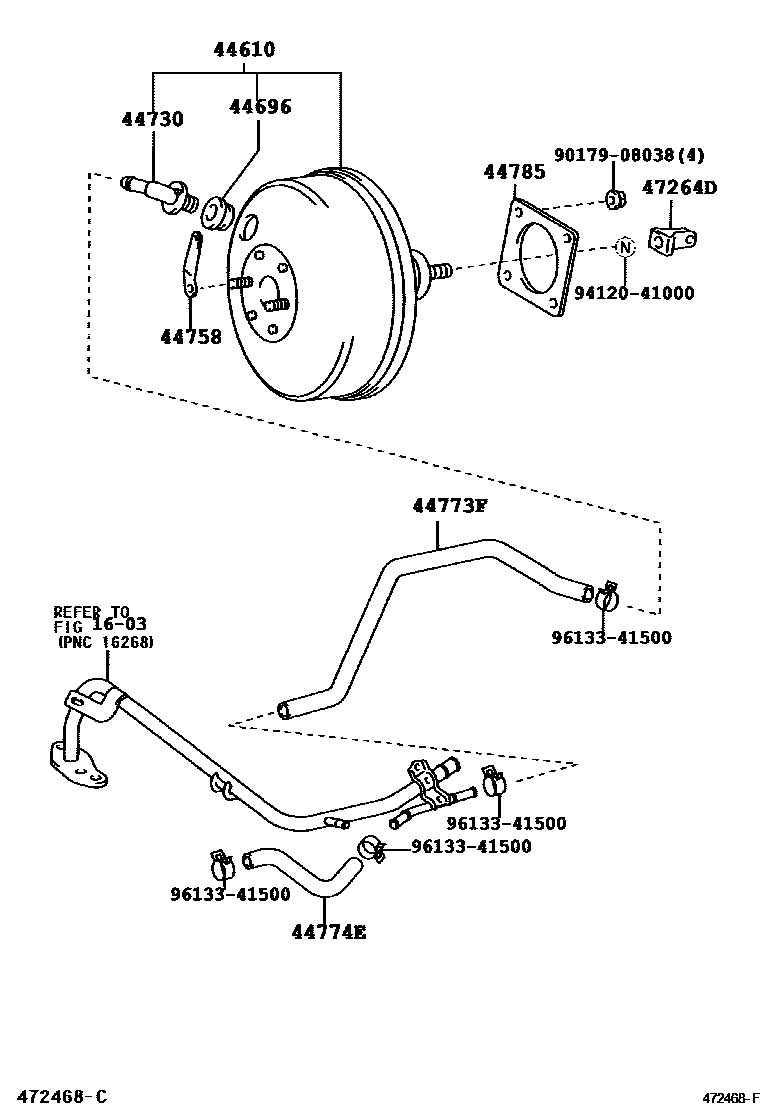

BRAKE BOOSTER & VACUUM TUBE

0001 1 0003 1 0004 1 0007 1 0009 1 0010 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

44610BOOSTER ASSY, BRAKE

main44610-02110iZZE121..MA200105-200401

main44610-02120iZZE122..VN200107-200403

main44610-02130iZZE121..ATM..16E..TH; ZZE121..ATM..16J..TH;ZZE12#..MTM..(16,16E,16J,18J)..(IDN,TH)200311-200801

W/O(ABS)

main44610-02140iZZE121..16J..PHL200107-200401

main44610-02220iZZE122..IND200508

main44610-12A00iZZE122..IND200301-200412

main44610-1E540iZZE122..18G..(MA,TH)200311-200801

main44610-1E550iZZE121..16E..TAIW200103-200211

main44610-1E560iZZE122..18G..TAIW200310-200712

main44610-1E580iZZE122..18E..TAIW200211-200310

W/O(ABS)

44696GROMMET, CHECK VALVE

main90080-48050iZZE12#..MA,PHL200105-200401

main90480-24439iZZE122..IND200103-200412

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-02030iZZE122..IND200412-200508

main44730-12070iZZE12#..IDN,TH200103-200311

44758BRACKET, VACUUM CHECK VALVE

main44758-02020iZZE12#..(16J,18E)..TAIW200310-200712

main44758-02030iZZE122..18G..TAIW200310-200712

main44758-42010iZZE12#..PHL200401-200802

44773FHOSE, UNION TO CHECK VALVE

main44773-12700iNZE120200107-200403

main44773-12710iZZE122..VN200103-200403

44774HOSE, UNION TO CONNECTOR TUBE

main44774-12420iZZE12#..IDN,TH200311-200801

44774EHOSE, UNION TO CONNECTOR TUBE

main44774-12470iZZE121..16E..TAIW200103-200211

main44774-20310iZZE122..VN200103-200403

44785GASKET, BRAKE BOOSTER

main44785-20020iZZE121..16E..TAIW200103-200211

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-02010iZZE122..MA,VN;ZZE121..ATM..MA200311

main47264-02040iZZE122..IND200508

main47264-12060iZZE12#..TAIW200310-200712

9017908038

main90179-08038

9412041000

main94120-41000

9613341500

main96133-41500

13 parts on this diagram · 6 diagrams in section
