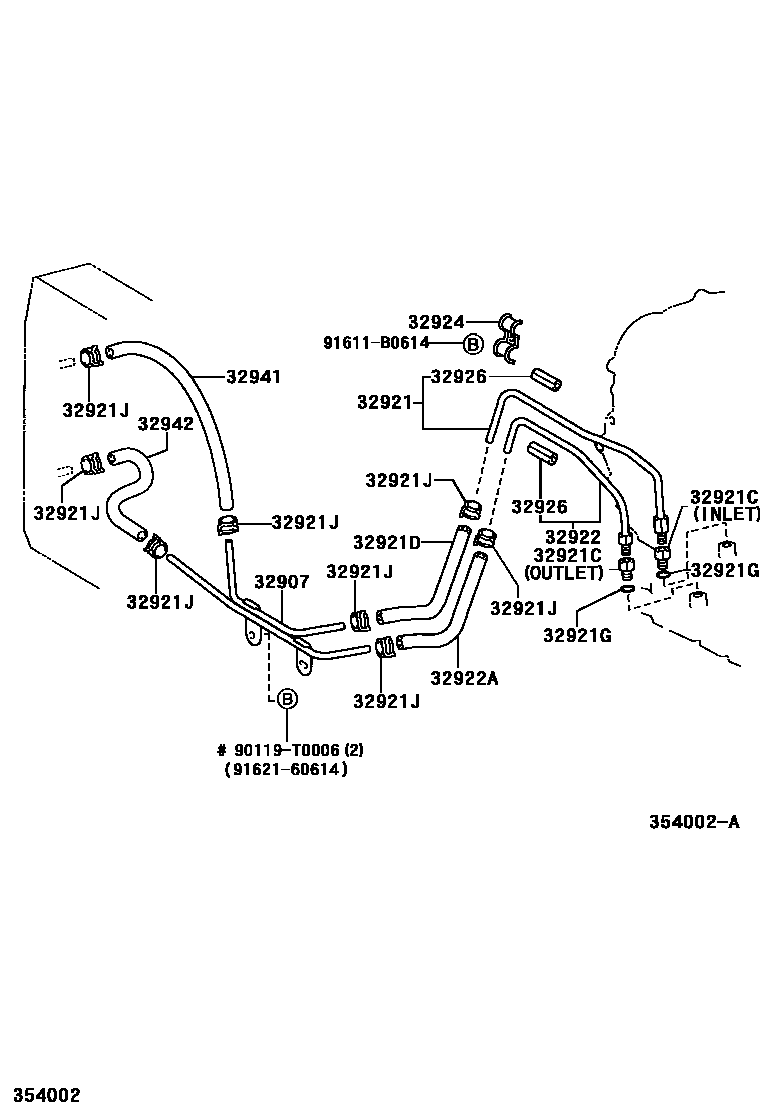

OIL COOLER & TUBE (ATM)

32907TUBE SUB-ASSY, OIL COOLER OUTLET, NO.2

main32907-02010iZZE12#..TAIW200310-200712

main32907-02020iZZE12#..ATM..TH200105-200311

main32907-12020iZZE12#..MA200401-200708

32921TUBE, OIL COOLER INLET, NO.1

main32921-02180iZZE121..TAIW200310-200712

main32921-02190iZZE122..TAIW200103-200310

main32921-12430iZZE121..ATM..TH200311-200801

main32921-12460iZZE122..MA,PHL200108-200508

main32921-13030iZZE122..MA200511-200708

32921CUNION(FOR OIL COOLER TUBE)

main90404-14007iZZE122..18G..(IND,MA)200310

OUTLET

main90404-14019×2iZZE121..ATM..16E..(MA,PHL)200310-200802

main90407-14003iZZE122..ATM..(IND,MA,PHL,TAIW,TH)200103-200508

INLET

32921DHOSE(FOR OIL COOLER INLET)

main32943-12010iZZE122..18G..(IND,MA,PHL)200401-200511

main32943-12020iZZE122..ATM..IDN;ZZE121..ATM..(MA,PHL)200108-200401

L=225

main90080-44120iZZE121..ATM..TH200311-200801

main90080-44122iZZE122..TH200105-200311

main90445-15042iZZE122..18G..IND200511

main90445-15050iZZE122..ATM..IDN;ZZE121..ATM..(MA,PHL)200103-200108

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189×2iZZE122..18G..(IND,MA)200310

main90301-11006×2iZZE121..ATM..TH200310-200801

32921JCLIP(FOR OIL COOLER HOSE)

main96135-51300×8iZZE122..MA,PHL200108-200508

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-02140iZZE121..TAIW200103-200310

main32922-02150iZZE122..TAIW200103-200310

main32922-12300iZZE122..ATM..IDN;ZZE121..ATM..(MA,PHL,TH)200105-200401

main32922-12350iZZE122..ATM..(IDN,TH)200311-200801

main32922-13040iZZE122..18G..IND200511

32922AHOSE(FOR OIL COOLER OUTLET)

main90080-44120iZZE121..ATM..TH200311-200801

main90080-44122iZZE122..TH200105-200311

main90445-15020iZZE122..PHL200401-200802

main90445-15034iZZE121..MA200401-200708

L=225

main90445-15042iZZE122..TAIW200310-200712

main90445-15050iZZE121..MA200401-200708

L=220

32924CLAMP, OIL COOLER TUBE, NO.2

main90462-10127iZZE12#..ATM200103-200508

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-10010×2iZZE121..ATM;ZZE122..ATM..(IDN,IND,TAIW,TH)200103-200508

L=30,ID=8

32941HOSE, OIL COOLER INLET, NO.1

main90080-44121iZZE12#..ATM..TH200105-200311

main90445-15039iZZE12#..ATM..PHL200401-200802

main90445-15058iZZE12#..TAIW200103-200310

32942HOSE, OIL COOLER OUTLET, NO.1

main90080-44120iZZE12#..ATM..TH200105-200311

main90445-15034iZZE12#..ATM..PHL200401-200802

main90445-15050iZZE12#..TAIW200310-200712

90119T0006

main90119-T0006

91611B0614

main91611-B0614

9162160614

main91621-60614

15 parts on this diagram · 1 diagram in section
