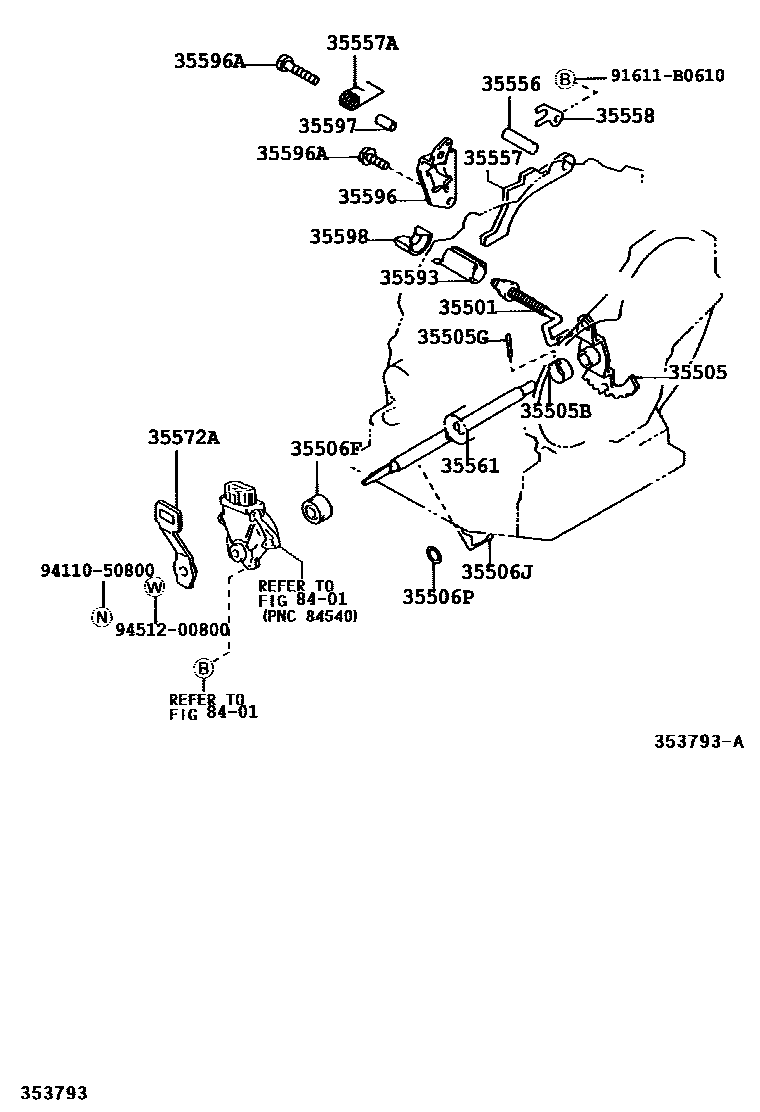

THROTTLE LINK & VALVE LEVER (ATM)

0001 1A245E 0003 1U341E

35501ROD SUB-ASSY, PARKING LOCK

main35501-12030iZZE121..ATM..TH200103-200802

main35501-52020iZZE122..TAIW200103-200802

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-12100iZZE121..ATM;ZZE122..ATM..IDN200103-200802

main35505-20030iZZE122..ATM..(IDN,TH)200103-200802

35505BSPACER (FOR MANUAL VALVE LEVER)

main90560-20006iZZE122..ATM..(IND,MA,PHL,TAIW,TH)200103-200802

35505GPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER)

main90254-04011iZZE121..16E..TAIW200103-200802

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iZZE121..ATM;ZZE122..ATM..IDN200103-200802

35506JSPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)

main90524-09001iZZE122..18G..(IND,MA)200103-200802

main90524-11001iZZE121..ATM..TH200103-200802

35506PWASHER, PLATE (FOR MANUAL VALVE LEVER SHAFT)

main90201-12028iZZE121..16J..TAIW200103-200802

35556SHAFT, PARKING LOCK PAWL

main35556-12020iZZE121..ATM;ZZE122..ATM..IDN200103-200802

main35556-32020iZZE122..TAIW200103-200802

35557PAWL, PARKING LOCK

main35557-12030iZZE121..ATM;ZZE122..ATM..IDN200103-200802

main35557-52020iZZE122..TAIW200103-200802

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90949-03060iZZE121..ATM;ZZE122..ATM..IDN200103-200802

main90949-03089iZZE122..PHL200103-200802

35558CLAMP, PAWL SHAFT

main35558-12010iZZE121..16J..TAIW200103-200802

35561SHAFT, MANUAL VALVE LEVER

main35561-12040iZZE121..ATM;ZZE122..ATM..IDN200103-200802

main35561-52020iZZE122..TAIW200103-200802

35572ALEVER, TRANSMISSION CONTROL SHAFT

main35572-12150iZZE121..ATM;ZZE122..ATM..IDN200103-200802

main35572-20250iZZE122..TAIW200103-200802

35593SLEEVE, CAM GUIDE

main35593-12010iZZE121..ATM;ZZE122..ATM..IDN200103-200802

main35593-52010iZZE122..TAIW200103-200802

35596PLATE, PAWL STOPPER

main35596-12010iZZE121..16E..TAIW200103-200802

35596ABOLT (FOR PAWL STOPPER PLATE)

main90105-08070iZZE121..ATM;ZZE122..ATM..IDN200103-200401

*8-1.25PX17-13.5

main90105-08333iZZE121..ATM;ZZE122..ATM..IDN200103-200802

*8-1.25PX35-30

35597SLEEVE, SPRING GUIDE

main35597-12010iZZE121..16E..TAIW200103-200802

35598SLEEVE, PARKING LOCK

main35598-12010iZZE121..16E..TAIW200103-200802

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

91611B0610

main91611-B0610

9411050800

main94110-50800

9451200800

main94512-00800

22 parts on this diagram · 2 diagrams in section
