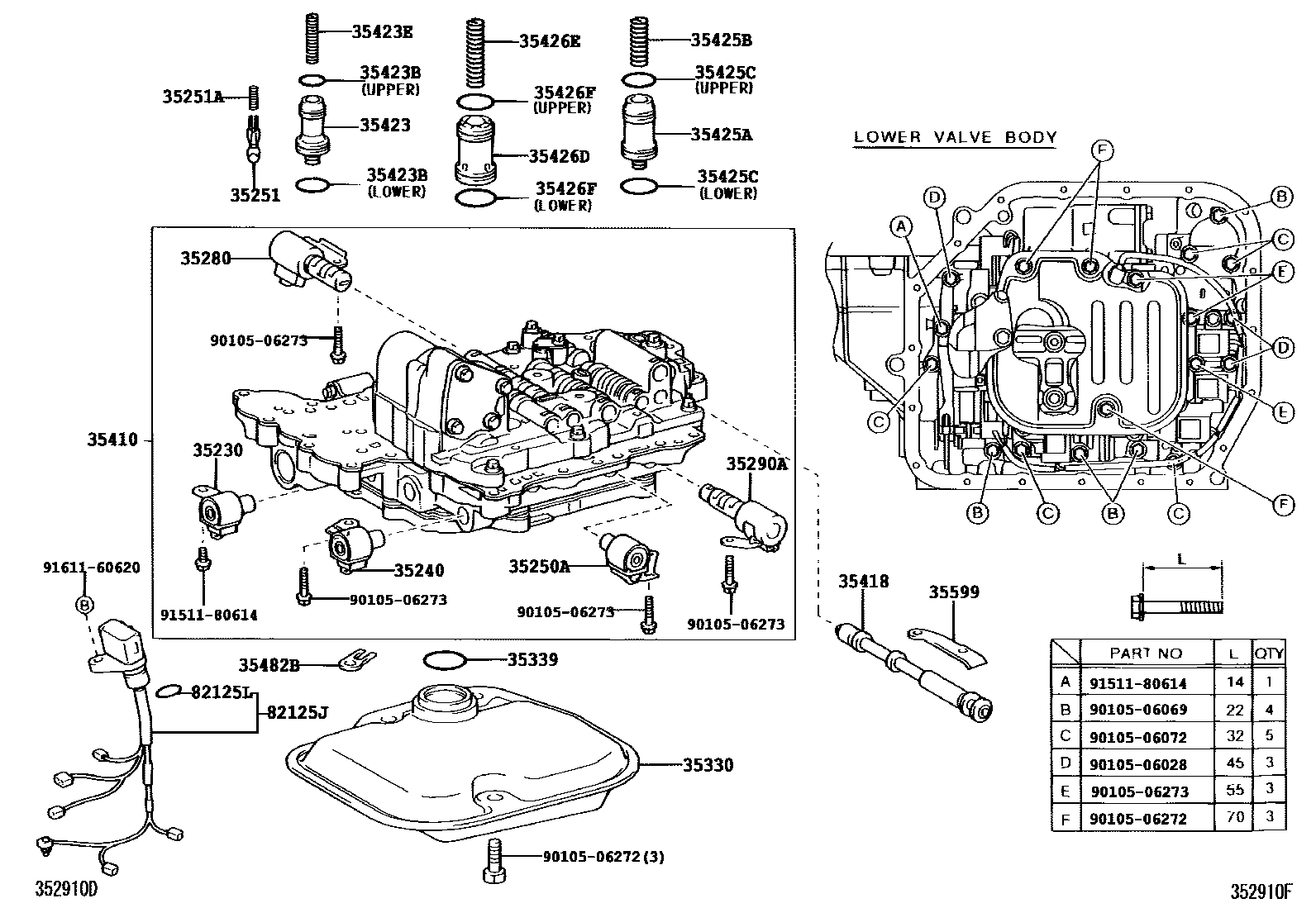

VALVE BODY & OIL STRAINER (ATM)

0001 1U341E 0003 1A245E 0005 1A245E

35230SOLENOID ASSY, TRANSMISSION 3WAY, NO.2

main35230-52010iZZE122..MA,PHL,TAIW,TH200103-200109

main35230-52011iZZE122..ATM..(IND,MA,PHL,TAIW,TH)200109-200508

main35230-52020iZZE122..TAIW200508-200712

35240SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY

main35240-52010iZZE122..MA,PHL,TAIW,TH200103-200109

main35240-52011iZZE122..ATM..(IDN,MA,PHL,TAIW,TH)200310-200508

main35240-52050iZZE122..TAIW200508-200712

35250ASOLENOID ASSY, TRANSMISSION, NO.3

main35250-12030iZZE121..ATM..TH200310-200801

main35250-52010iZZE122..ATM..(IDN,MA,PHL,TAIW,TH)200310-200508

main35250-52080iZZE122..TAIW200508-200712

35251BODY, CHECK BALL

main35251-30020iZZE121..ATM;ZZE122..ATM..IDN; ZZE122..ATM..(IND,MA,PHL,TAIW,TH)200103-200508

35251ASPRING, COMPRESSION (FOR CHECK BALL BODY)

main90501-03005iZZE121..ATM;ZZE122..ATM..IDN; ZZE122..ATM..(IND,MA,PHL,TAIW,TH)200103-200508

35280SOLENOID ASSY, LOCK UP CONTROL

main35270-52010iZZE122..MA,PHL,TAIW,TH200103-200109

main35270-52011iZZE122..TAIW200310-200712

35290ASOLENOID ASSY, LINE PRESSURE CONTROL

main35290-12020iZZE121..ATM;ZZE122..ATM..IDN200103-200401

main35290-52020iZZE122..ATM..(IDN,TH)200310-200801

35330STRAINER ASSY, VALVE BODY OIL

main35330-0W020iZZE122..18G..(IND,MA)200310

main35330-12040iZZE121..ATM..TH200310-200801

35339GASKET, OIL STRAINER

main35339-12020iZZE121..TAIW200310-200712

main90301-32010iZZE122..PHL200310-200802

35410BODY ASSY, TRANSMISSION VALVE

main35410-12681iZZE122..ATM..IDN200107-200311

main35410-12690iZZE121..ATM200103-200107

main35410-12691iZZE121..ATM..16E..PHL;ZZE121..ATM..(MA,TAIW,TH)200310-200604

main35410-12840iZZE121..TAIW200604-200712

main35410-52040iZZE122..MA,PHL,TAIW,TH200103-200211

main35410-52041iZZE122..ATM..(IND,MA,PHL,TAIW,TH)200211-200303

main35410-52042iZZE122..ATM..(IDN,MA,PHL,TAIW,TH)200310-200508

main35410-52170iZZE122..18G..(IND,MA)200508

35418VALVE, MANUAL

main35418-52020iZZE122..ATM..(IND,MA,PHL,TAIW,TH)200103-200508

35423PISTON, B-2 ACCUMULATOR

main35403-52020iZZE122..MA200606

main35423-12020iZZE121..TAIW200310-200712

35423BRING, O (FOR B-2 ACCUMULATOR PISTON)

main90301-20010iZZE122..ATM..(IND,MA,PHL,TAIW,TH)200103-200508

UPPER

main90301-21012iZZE121..ATM..16E..(MA,PHL)200310-200802

UPPER

main90301-29011iZZE121..ATM..MA;ZZE122..18G..IND200310

LOWER

35423ESPRING, COMPRESSION (FOR B-2 ACCMULATOR PISTON)

main90501-18119iZZE122..PHL200310-200802

35425APISTON, C-2 ACCUMULATOR

main35405-52020iZZE122..PHL200606-200802

main35425-12050iZZE121..TAIW200310-200712

35425BSPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)

main90501-22057iZZE122..ATM..IDN200107-200311

main90501-24028iZZE121..ATM200103-200401

main90501-24036iZZE122..PHL200310-200802

35425CRING, O (FOR C-2 ACCUMULATOR PISTON)

main90301-22010iZZE122..18G..IND200508

UPPER

main90301-26012iZZE121..ATM..16E..(MA,PHL)200310-200802

UPPER

main90301-29011iZZE121..ATM..TH200310-200801

LOWER

main90301-35004iZZE122..ATM..(IND,MA,PHL,TAIW,TH)200103-200508

LOWER

35426DPISTON, C-3 ACCUMULATOR

main35423-12020iZZE121..TAIW200310-200712

main35426-52020iZZE122..ATM..(IND,MA,PHL,TAIW,TH)200103-200508

35426ESPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON)

main90501-20134iZZE121..ATM..TH200310-200801

INNER

main90501-23129iZZE121..ATM..16E..(MA,PHL)200310-200802

OUTER

main90501-23149iZZE122..ATM..(IND,MA,PHL,TAIW,TH)200103-200508

35426FRING, O (FOR C-3 ACCUMULATOR PISTON)

main90301-21012iZZE121..ATM..16E..(MA,PHL)200310-200802

UPPER

main90301-24016iZZE122..18G..IND200508

UPPER

main90301-29011iZZE121..ATM;ZZE122..ATM..IDN; ZZE122..ATM..(IND,MA,PHL,TAIW,TH)200103-200508

LOWER

35482BCLAMP, TEMPERATURE SENSOR

main35482-52020iZZE122..18G..IND200508

35599COVER, MANUAL DETENT SPRING

main35599-12020iZZE121..ATM;ZZE122..ATM..IDN200103-200401

main35599-12040iZZE121..TAIW200701-200712

main35599-52010iZZE122..18G..IND200508

82125JWIRE, TRANSMISSION

main82125-12380iZZE121..16E..TAIW200103-200210

main82125-20270iZZE122..ATM..(IDN,MA,PHL,TAIW,TH)200310-200508

main82125-52110iZZE122..18G..(IND,MA)200508

82125LRING, O(FOR TRANSMISSION WIRE)

main90301-21009iZZE121..16E..TAIW200103-200210

9010506028

main90105-06028

9010506069

main90105-06069

9010506072

main90105-06072

9010506272

main90105-06272

9010506273

main90105-06273

9151180614

main91511-80614

9161160620

main91611-60620

31 parts on this diagram · 3 diagrams in section
