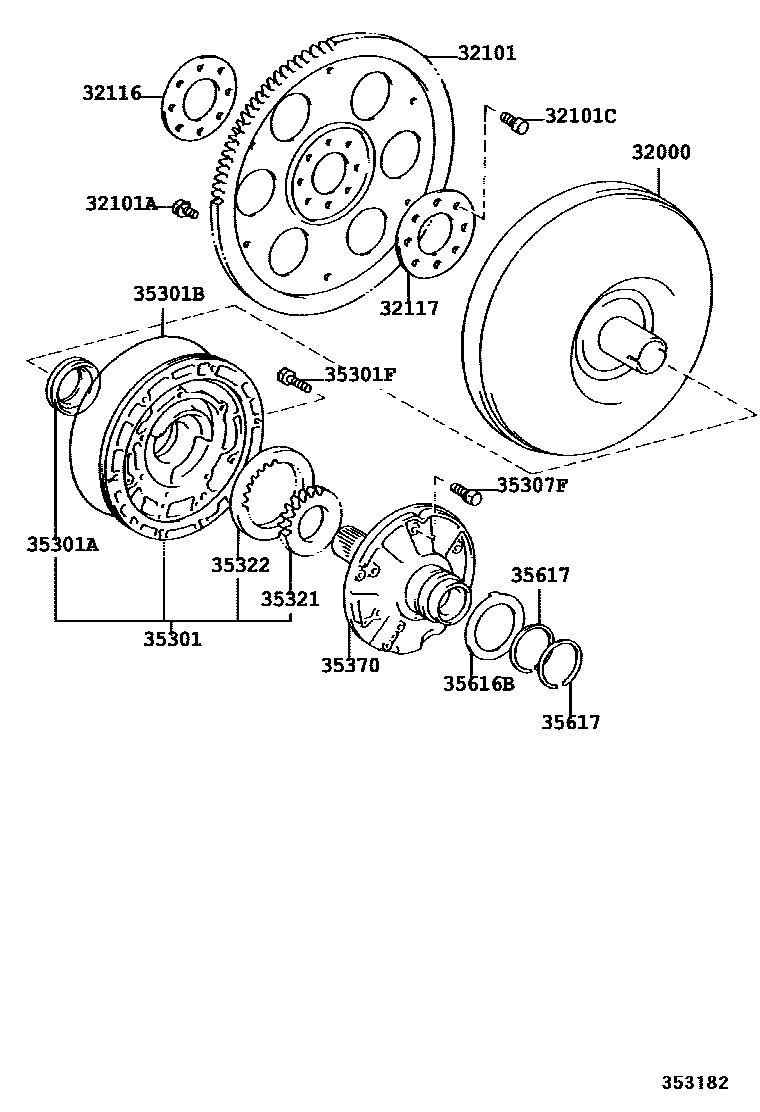

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

0001 1A245E 0003 1U341E

32000CONVERTER ASSY, TORQUE

main32000-12350iZZE121..ATM..TH200310-200801

main32000-12360iZZE122..ATM..IDN200107-200311

main32000-32160iZZE122..PHL200310-200802

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-12090iZZE122..ATM;ZZE121..16J..TAIW;ZZE121..ATM..(MA,PHL,TH)200103-200302

main32101-12091iZZE122..18G..IND200302-200508

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08107iZZE12#..ATM..(IDN,TH)200310-200801

*8-1.25PX12-8.4,GREEN

main90109-08113iZZE12#..ATM..(MA,PHL)200103-200401

*8-1.25PX12-8.4,GREEN

main90119-08269×5iZZE122..18G..IND200301-200508

*8-1.25PX12-8,BLACK

main90119-08498×5iZZE121..ATM..(MA,PHL); ZZE122..MA,PHL200103-200401

*8-1.25PX12-8,YELLOW GREEN

main90119-T0069×5iZZE12#..ATM..(IDN,TH)200311-200801

*8-1.25PX12-8,(L),BLACK

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048×8iZZE12#..(16J,18E,18G)..TAIW200103-200310

*10-1.25PX18-13

32116SPACER, DRIVE PLATE, FRONT

main32116-12020iZZE12#..ATM..(IDN,TH)200310-200801

32117SPACER, DRIVE PLATE, REAR

main32117-12030iZZE121..16E..TAIW200103-200211

35301BODY SUB-ASSY, FRONT OIL PUMP

main35035-20010iZZE121..ATM;ZZE122..ATM..IDN200103-200401

main35035-52040iZZE122..ATM..(IND,MA,PHL,TAIW,TH)200103-200508

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38020iZZE121..ATM..16E..(MA,PHL)200310-200802

ORANGE

main90311-38064iZZE122..ATM..(IND,MA,PHL,TAIW,TH)200103-200508

main90311-38082iZZE121..TAIW200310-200712

BROWN

35301BRING, O (FOR FRONT OIL PUMP BODY)

main90301-99024iZZE121..ATM;ZZE122..ATM..IDN200103-200401

main90301-99124iZZE122..ATM..(IND,MA,PHL,TAIW,TH)200103-200508

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90105-08198×6iZZE121..ATM;ZZE122..ATM..IDN200103-200401

*8-1.25PX28-28

main90105-08301×7iZZE122..ATM..(IND,MA,PHL,TAIW,TH)200103-200508

*8-1.25PX22-20

35307FBOLT (FOR STATOR SHAFT)

main90119-06559×11iZZE121..TAIW200310-200712

main90148-60027×10iZZE122..18G..IND200508

35321GEAR, FRONT OIL PUMP DRIVE

main35321-12070iZZE121..ATM..TH200310-200801

T=9.440-9.449

main35321-12080iZZE121..ATM..16E..(MA,PHL)200310-200802

T=9.450-9.459

main35321-12090iZZE121..ATM..TH200310-200801

T=9.460-9.470

main35321-12100iZZE121..TAIW200310-200712

T=9.471-9.480

main35321-12110iZZE121..ATM..TH200310-200801

T=9.481-9.490

main35321-52060iZZE122..18G..IND200508

T=9.44-9.449,MARK 1

main35321-52070iZZE122..ATM..(IND,MA,PHL,TAIW,TH)200103-200508

T=9.45-9.459,MARK 2

main35321-52080iZZE122..18G..IND200508

T=9.46-9.47,MARK 3

main35321-52090iZZE122..ATM..(IND,MA,PHL,TAIW,TH)200103-200508

T=9.471-9.48,MARK 4

main35321-52100iZZE122..18G..IND200508

T=9.481-9.49,MARK 5

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-12060iZZE121..ATM..TH200310-200801

T=9.440-9.449

main35322-12070iZZE121..TAIW200310-200712

T=9.450-9.459

main35322-12080iZZE121..ATM..TH200310-200801

T=9.460-9.470

main35322-12090iZZE121..ATM..TH200310-200801

T=9.471-9.480

main35322-12100iZZE121..ATM..16E..(MA,PHL)200310-200802

T=9.481-9.490

main35322-52060iZZE122..18G..IND200508

T=9.44-9.449,MARK 1

main35322-52070iZZE122..ATM..(IND,MA,PHL,TAIW,TH)200103-200508

T=9.45-9.459,MARK 2

main35322-52080iZZE122..ATM..(IND,MA,PHL,TAIW,TH)200103-200508

T=9.46-9.47,MARK 3

main35322-52090iZZE122..18G..IND200508

T=9.471-9.48,MARK 4

main35322-52100iZZE122..ATM..(IND,MA,PHL,TAIW,TH)200103-200508

T=9.481-9.49,MARK 5

35370SHAFT ASSY, STATOR

main35370-12050iZZE121..ATM;ZZE122..ATM..IDN200103-200110

main35370-32060iZZE121..ATM;ZZE122..ATM..IDN200110-200401

main35370-52030iZZE122..18G..IND200508-200601

main35370-52070iZZE122..PHL200601-200802

35616BWASHER, CLUTCH DRUM THRUST (FOR STATOR SHAFT)

main35616-32010iZZE121..TAIW200310-200712

35617RING, CLUTCH DRUM OIL SEAL

main35613-52010×2iZZE122..ATM..(IND,MA,PHL,TAIW,TH)200103-200508

main35613-52020×2iZZE122..ATM..(IDN,TH)200612-200801

main35617-32011×2iZZE121..ATM..TH200310-200801
