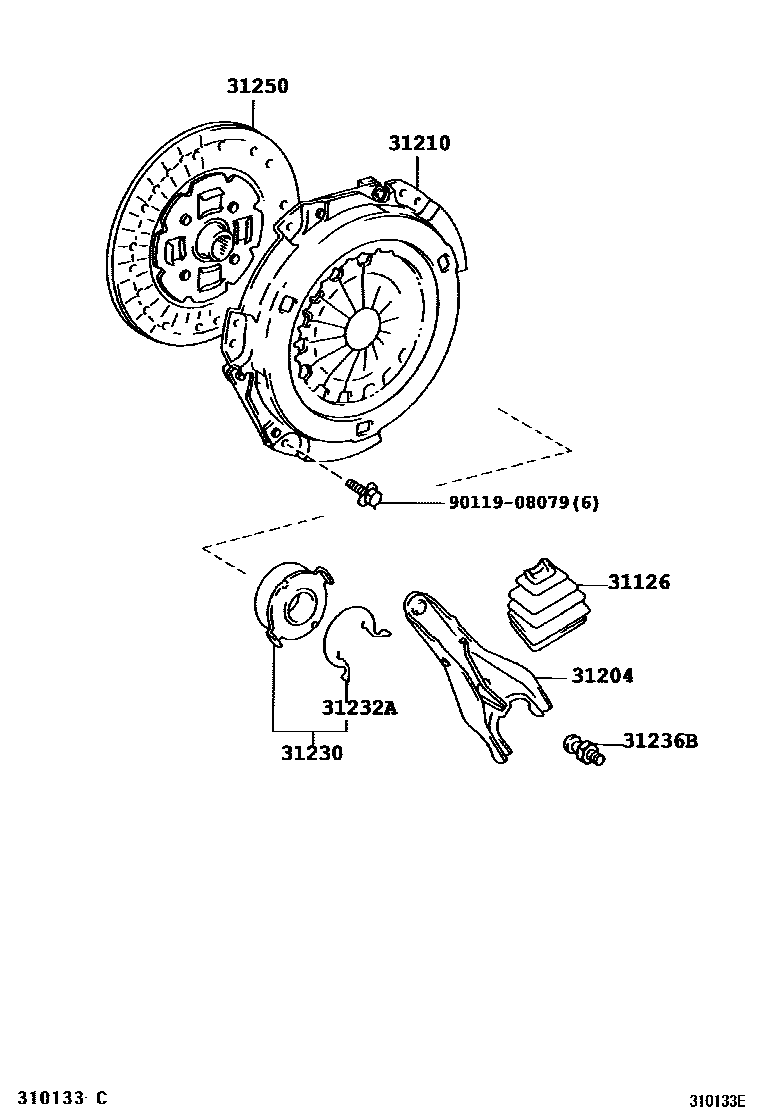

CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-12051iZZE122..MTM..IND200311-200706

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-17010iZZE122..VN200311

main31204-52010iNZE120200107-200403

31210COVER ASSY, CLUTCH

main31210-02050iZZE121..MTM..TH200105-200311

main31210-02060iZZE122..MTM..IDN200311

main31210-02170iZZE122..MTM..IND200508

main31210-12210iNZE120200107-200403

main31210-12221iZZE122..VN200403-200708

main31210-12310iZZE122..VN200709

31230BEARING ASSY, CLUTCH RELEASE

main31230-12180iNZE120200107-200403

main31230-12191iZZE122..MTM..IND200311-200706

31232ACLIP, RELEASE BEARING HUB

main31232-12070iZZE12#..MTM200105-200508

main31232-12080iNZE120200107-200403

31236BSUPPORT, RELEASE FORK

main31236-12020iZZE122..VN200311

31250DISC ASSY, CLUTCH

main31250-02110iZZE122..MTM..IND200508

main31250-0A010iZZE12#..MTM..(IDN,PHL,TH)200311-200501

main31250-0A011iZZE12#..MTM..(IDN,PHL,TH)200502

main31250-12360iZZE122..VN200107-200403

main31250-12391iNZE120200107-200206

main31250-12392iNZE120200206-200403

main31250-12540iZZE122..VN200512

9011908079

main90119-08079

8 parts on this diagram · 1 diagram in section
