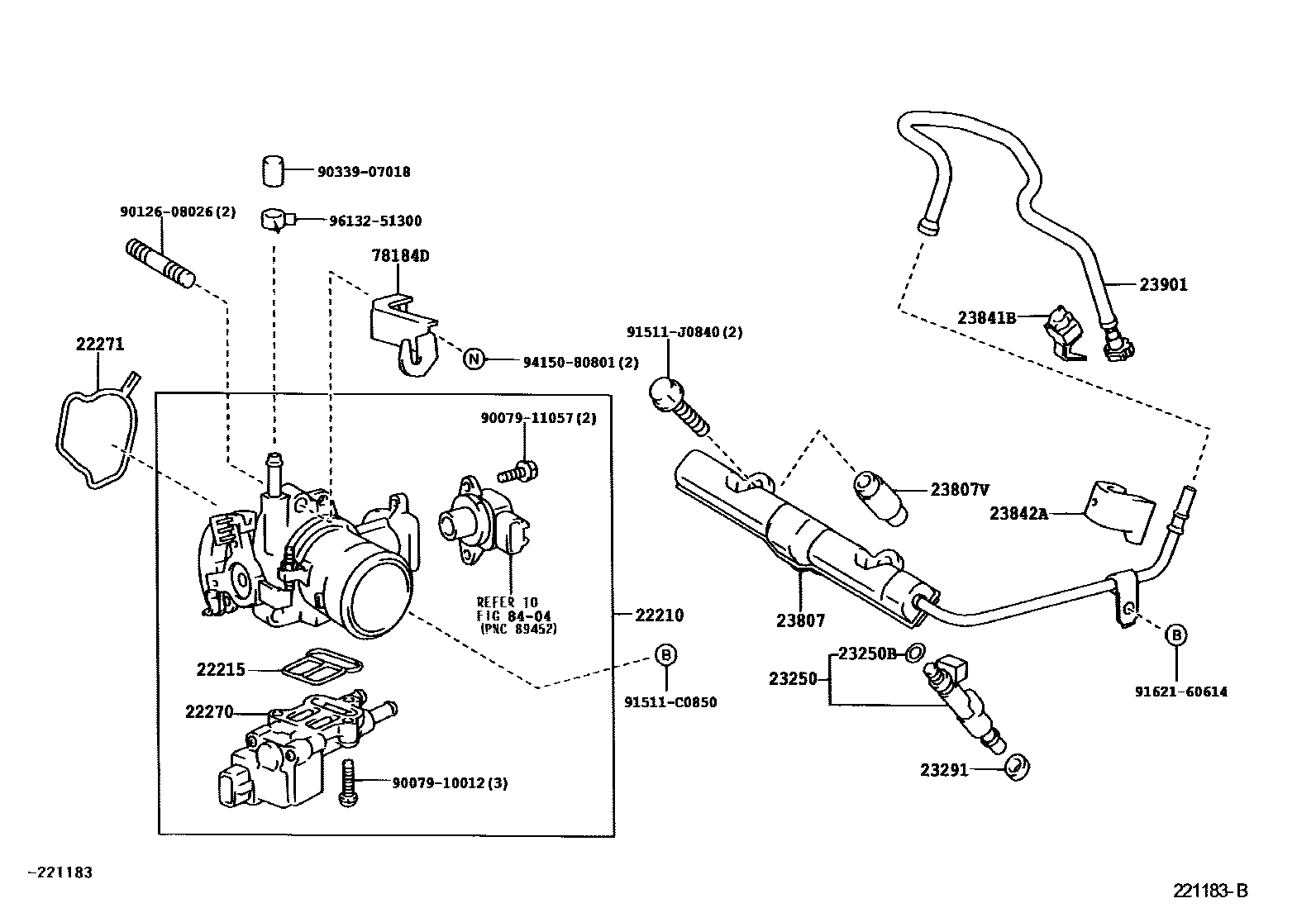

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1 0005 1

22210BODY ASSY, THROTTLE

main22210-0D070i1ZZFE..ZZE122..PHL200310-200802

main22210-0D080i3ZZFE..ZZE121..MTM..PHL;3ZZFE..ZZE121..ATM..16E..PHL;3ZZFE..ZZE121..ATM..(MA,TAIW)200310-200802

(L)

main22210-21020i1NZFE..NZE120200107-200403

main22210-22060i3ZZFE..ZZE121200103-200110

(J)

main22210-22080i1ZZFE..ZZE122200103-200106

(J)

main22210-22130i1ZZFE..ZZE122..IND200508

main22210-22150i3ZZFE..ZZE121..MTM..PHL;3ZZFE..ZZE121..ATM..16E..PHL;3ZZFE..ZZE121..ATM..(MA,TAIW)200310-200802

(J)

22215GASKET, THROTTLE BODY COVER

main22215-0D070i1ZZFE..ZZE122..IDN,MA,PHL,TAIW,TH200103-200401

(L)

main22215-0D080i3ZZFE..ZZE121200103-200401

(L)

main22215-74400i3ZZFE..ZZE121..MTM..PHL;3ZZFE..ZZE121..ATM..16E..PHL;3ZZFE..ZZE121..ATM..(MA,TAIW)200310-200802

(J)

main22215-7A680i1ZZFE..ZZE122..MA,VN200310

(J)

22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)

main22270-0D020i1ZZFE..ZZE122..IDN,MA,PHL,TAIW,TH200211-200401

(L),MARK 22270-0D020

main22270-0D030i3ZZFE..ZZE121..TH200310-200801

(L)

main22270-0D040i1ZZFE..ZZE122..IND200508-200511

(L)

main22270-21010i1NZFE..NZE120200107-200303

main22270-21011i1NZFE..NZE120200303-200403

main22270-22050i3ZZFE..ZZE121..TH200310-200801

(J)

main22270-22060i1ZZFE..ZZE122200211-200303

(J)

main22270-22061i1ZZFE..ZZE122..TAIW200603-200712

22271GASKET, THROTTLE BODY

main22271-21020i1NZFE..NZE120200107-200403

main22271-22030i3ZZFE..ZZE121200103-200105

main22271-22040i1ZZFE..ZZE122..IND,MA,VN200310

main22271-22070i3ZZFE..ZZE121..MA,PHL200609-200802

23250INJECTOR ASSY, FUEL

main23209-0D030×4i3ZZFE..ZZE121200103-200401

main23209-21020×4i1NZFE..NZE120200107-200403

main23209-22020×4i1ZZFE..ZZE122..IDN,VN200107-200403

main23209-22040×4i1ZZFE..ZZE122..IND,MA,VN200310

23250BRING, O(FOR FUEL INJECTOR)

main90301-07024×4i1ZZFE..ZZE122200310-200607

main90301-07030×4i3ZZFE..ZZE121..TH200310-200801

main90301-07037×4i1ZZFE..ZZE122..IND,MA,VN200607

23291INSULATOR, INJECTOR VIBRATION

main23291-22010×4i3ZZFE..ZZE121..TH200310-200801

main23291-22020×4i1ZZFE..ZZE122..IND,MA,VN200310

main23291-41010×4i1NZFE..NZE120200107-200403

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-21010i1NZFE..NZE120200107-200403

main23807-22030i1ZZFE,3ZZFE..ZZE12#200103-200508

main23807-22060i1ZZFE,3ZZFE..ZZE12#..MA,VN200712

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23891-21010×2i1NZFE..NZE120200107-200403

main90561-08055×2i1ZZFE,3ZZFE..ZZE12#200103-200508

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21050i1ZZFE,3ZZFE..ZZE12#..IND,MA,VN200705

main23841-28010i1ZZFE,3ZZFE..ZZE12#200103-200508

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-22020i1NZFE..NZE120200107-200403

23901TUBE SUB-ASSY, FUEL

main23901-21030i1NZFE..NZE120200107-200403

main23901-22140i1ZZFE,3ZZFE..ZZE12#200103-200508

78184DBRACKET, ACCELERATOR CONTROL CABLE

main78184-12380iNZE120200107-200403

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

9007910012

main90079-10012

9007911057

main90079-11057

9012608026

main90126-08026

9033907018

main90339-07018

91511C0850

main91511-C0850

91511J0840

main91511-J0840

9162160614

main91621-60614

9415080801

main94150-80801

9613251300

main96132-51300

23 parts on this diagram · 5 diagrams in section
