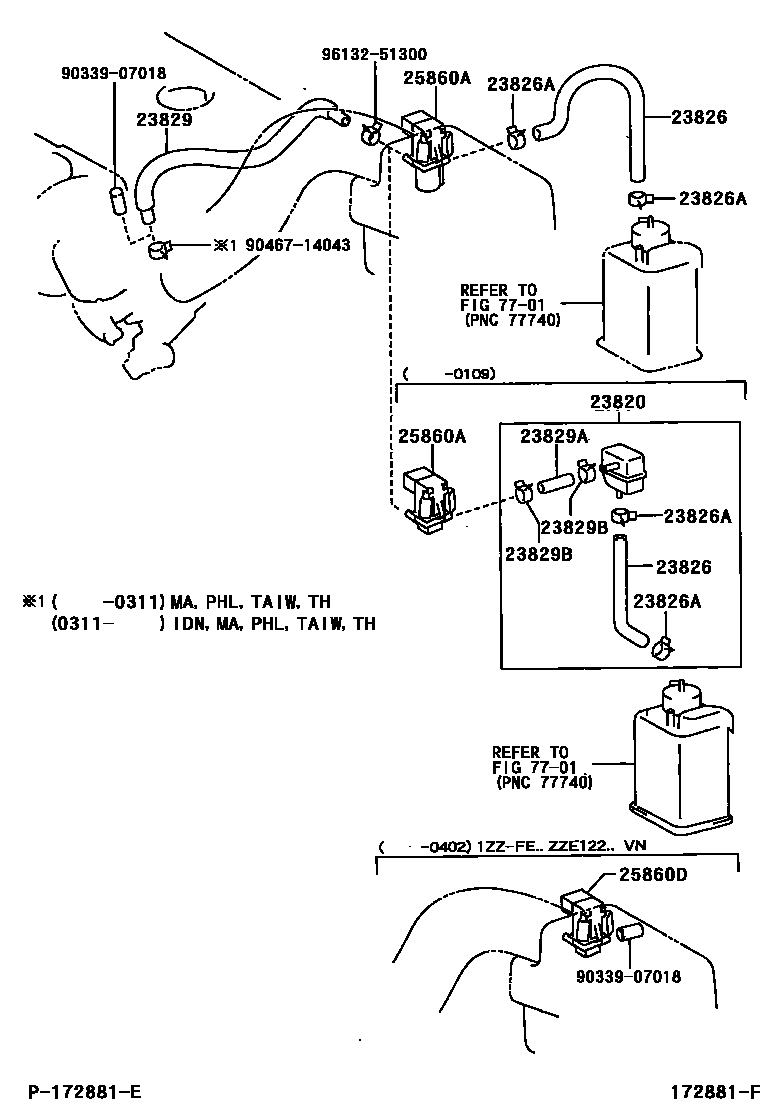

VACUUM PIPING

23820HOSE ASSY, FUEL VAPOR FEED

main23820-21040i1ZZFE,3ZZFE..ZZE12#..MA,PHL,TAIW,TH200103-200109

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-0D030i1ZZFE,3ZZFE..ZZE12#..IND,TH200205-200508

(L)

main23826-21030i1ZZFE,3ZZFE..ZZE12#..IND,TH200205-200508

(J)

main23826-21050i1ZZFE,3ZZFE..ZZE12#..MA,PHL,TAIW,TH200103-200109

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main96132-51100×2i3ZZFE..ZZE121..MTM..PHL;1ZZFE,3ZZFE..ZZE12#..ATM..(16E,18G)..PHL200310-200802

23829HOSE, FUEL VAPOR FEED, NO.3

main23829-22050i1ZZFE,3ZZFE..ZZE12#..MA,PHL,TAIW,TH200103-200304

main23829-22080i1ZZFE..ZZE122..IND,VN200107-200508

23829AHOSE, FUEL VAPOR FEED

main95326-07005i1ZZFE,3ZZFE..ZZE12#..MA,PHL,TAIW,TH200103-200109

23829BCLIP(FOR FUEL VAPOR FEED HOSE)

main96132-51100×2i1ZZFE,3ZZFE..ZZE12#..MA,PHL,TAIW,TH200103-200109

25860AVALVE, VACUUM SWITCHING, NO.1

main90910-12236i1ZZFE,3ZZFE..ZZE12#..MA,PHL,TAIW,TH200103-200109

main90910-12257i1ZZFE..ZZE122..PHL;3ZZFE..ZZE121..MTM..PHL;3ZZFE..ZZE121..ATM..(MA,PHL)200109-200310

25860DVALVE ASSY, VACUUM SWITCHING, NO.2

main90910-12236i1ZZFE..ZZE122..VN200107-200402

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9033907018

main90339-07018

9046714043

main90467-14043

9613251300

main96132-51300

12 parts on this diagram · 1 diagram in section
