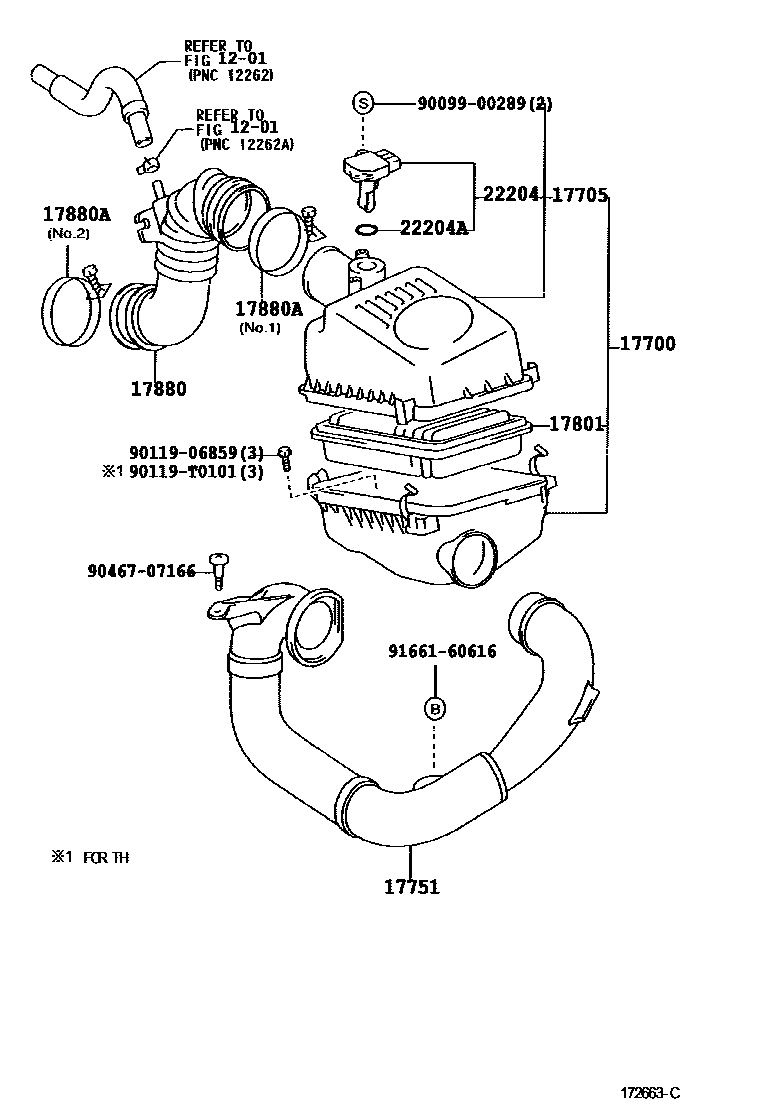

AIR CLEANER

0001 1 0002 1

1201VENTILATION HOSE

→ Go to FIG 12-01

17700CLEANER ASSY, AIR

main17700-0D070i1ZZFE..ZZE122..IND200205-200508

main17700-0D130i1ZZFE,3ZZFE..ZZE12#..TAIW200501-200712

main17700-21070i1NZFE..NZE120200107-200403

main17700-22120i1ZZFE,3ZZFE..ZZE12#..TAIW200310-200501

17705CAP SUB-ASSY, AIR CLEANER

main17705-0D080i1ZZFE..ZZE122..IND200311

main17705-0D160i1ZZFE,3ZZFE..ZZE12#..TAIW200501-200712

main17705-21050i1NZFE..NZE120200107-200403

main17705-22120i1ZZFE..ZZE122..MA,VN;3ZZFE..ZZE121..ATM..MA200310

17751INLET, AIR CLEANER, NO.1

main17751-0D100i3ZZFE..ZZE121..TH200301-200310

(L)

main17751-0D110i1ZZFE..ZZE122..TH200311-200801

(L)

main17751-21070i1NZFE..NZE120200107-200403

main17751-22090i1ZZFE..ZZE122..TH200103-200301

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-0D030i1ZZFE,3ZZFE..ZZE12#..TAIW200501-200712

main17801-22020i1ZZFE..ZZE122..MA,VN;3ZZFE..ZZE121..ATM..MA200310

17880HOSE ASSY, AIR CLEANER

main17880-21030i1NZFE..NZE120200107-200403

17880ACLAMP, HOSE

main96111-10650i1NZFE..NZE120200107-200403

NO.1

main96111-10710i1NZFE..NZE120200107-200403

NO.2

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0C020i1ZZFE,3ZZFE..ZZE12#..IDN,TH200403-200801

(L)

main22204-22010i1NZFE..NZE120200107-200403

22204ARING, O(FOR INTAKE AIR FLOW METER)

main90099-14141i1ZZFE,3ZZFE..ZZE12#..IDN,MA,PHL,TH,VN200103-200310

9009900289

main90099-00289

9011906859

main90119-06859

90119T0101

main90119-T0101

9046707166

main90467-07166

9166160616

main91661-60616

14 parts on this diagram · 2 diagrams in section
