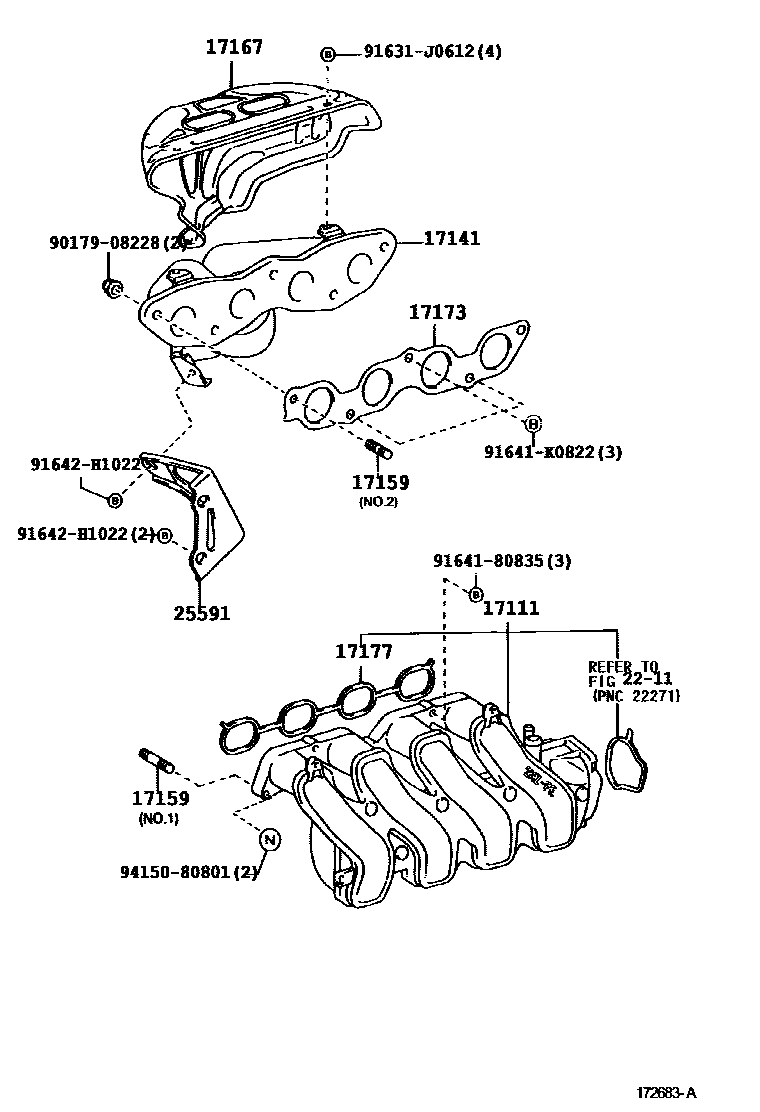

MANIFOLD

0001 1 0002 1

17111MANIFOLD, INTAKE

main17101-21040i1NZFE..NZE120200107-200403

main17120-0D031i3ZZFE..ZZE121..TAIW,TH;3ZZFE..ZZE121..MTM..PHL;3ZZFE..ZZE121..ATM..16E..(MA,PHL)200310-200609

main17120-22030i1ZZFE..ZZE122..PHL200310-200802

main17120-22040i3ZZFE..ZZE121200103-200105

17141MANIFOLD, EXHAUST

main17104-0D060i1ZZFE,3ZZFE..ZZE12#..IDN,MA,PHL,TAIW,TH200305-200401

(L)

main17104-22050i3ZZFE..ZZE121..MTM..PHL;1ZZFE,3ZZFE..ZZE12#..ATM..(16E,18G)..PHL200310-200802

(J)

main17141-21040i1NZFE..NZE120200107-200403

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90126-08026×2i3ZZFE..ZZE121..MA,PHL,TH200206-200310

NO.1,(J)

main90126-08037×2i1NZFE..NZE120200107-200403

EXHAUST SIDE

main90126-08043×5i3ZZFE..ZZE121..ATM..MA;1ZZFE..ZZE122..IND,MA,VN200310

NO.2

main90126-T0003×4i1ZZFE..ZZE122..IDN,TH; 3ZZFE..ZZE121..(16E,16J)..TH200310-200801

NO.1,(L)

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-21020i1NZFE..NZE120200107-200403

main17167-22040i1ZZFE,3ZZFE..ZZE12#200103-200308

main17167-22041i3ZZFE..ZZE121..MTM..PHL;1ZZFE,3ZZFE..ZZE12#..ATM..(16E,18G)..PHL200310-200802

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-21020i1NZFE..NZE120200107-200403

main17173-22010i1ZZFE,3ZZFE..ZZE12#200103-200508

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17171-22030i1ZZFE..ZZE122..TAIW200310-200712

main17177-21020i1NZFE..NZE120200107-200403

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

25591BRACKET, MANIFOLD SUPPORT

main25591-21020i1NZFE..NZE120200107-200403

9017908228

main90179-08228

91631J0612

main91631-J0612

9164180835

main91641-80835

91641K0822

main91641-K0822

91642H1022

main91642-H1022

9415080801

main94150-80801

14 parts on this diagram · 2 diagrams in section
