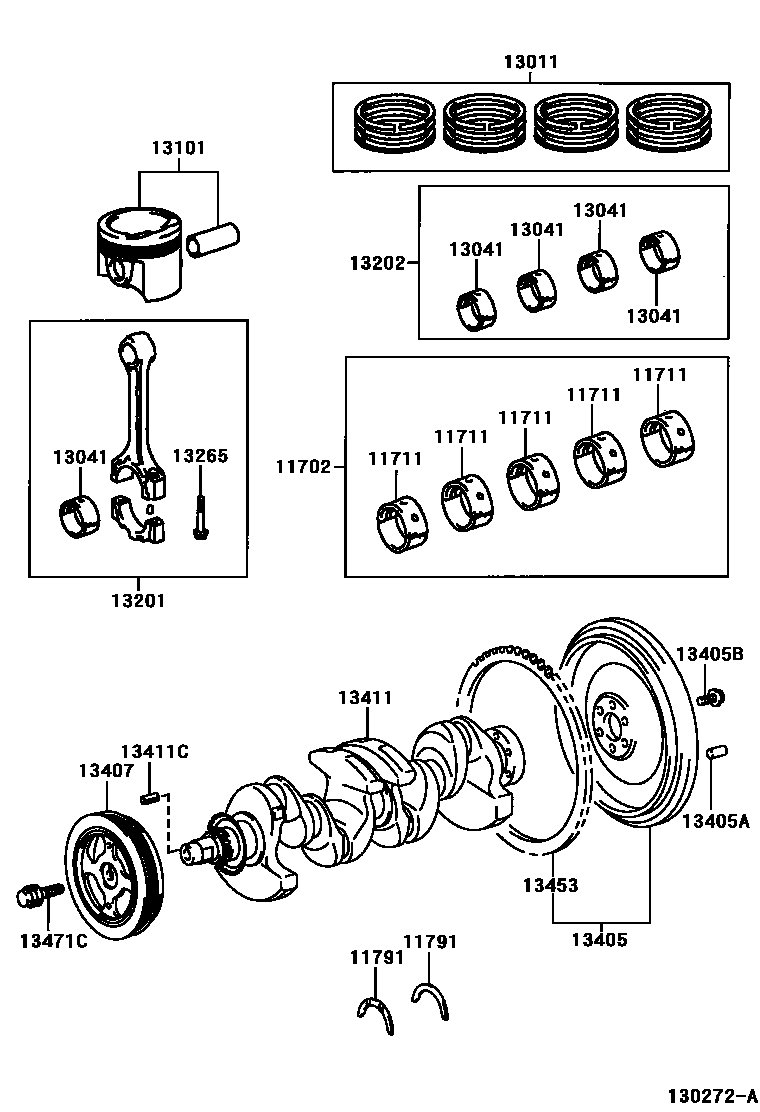

CRANKSHAFT & PISTON

0001 1 0002 1

11702BEARING SET, CRANKSHAFT

main11704-0D031i3ZZFE..ZZE121..MTM..PHL;1ZZFE,3ZZFE..ZZE12#..ATM..(16E,18G)..PHL200310-200802

U/S 0.25,(L)

main11704-21010i1NZFE..NZE120200107-200308

U/S 0.25

main11704-21040i1NZFE..NZE120200308-200403

U/S 0.25

main11704-22011i1ZZFE..ZZE122..MA,VN;3ZZFE..ZZE121..ATM..MA200310

U/S 0.25,(J)

main11704-22030i1ZZFE,3ZZFE..ZZE12#200103-200407

U/S 0.25

11711BEARING, CRANKSHAFT

main11701-0D031-01×5i1ZZFE,3ZZFE..ZZE12#..PHL200407-200802

MARK1,(L)

main11701-0D031-02×5i1ZZFE,3ZZFE..ZZE12#..PHL200407-200802

MARK2,(L)

main11701-0D031-03×5i1ZZFE,3ZZFE..ZZE12#..IDN,TH200407-200801

MARK3,(L)

main11701-0D031-04×5i1ZZFE,3ZZFE..ZZE12#..IDN,TH200407-200801

MARK4,(L)

main11701-21010-01×5i1NZFE..NZE120200107-200308

REFER TO REPAIR MANUAL,MARK1

main11701-21010-02×5i1NZFE..NZE120200107-200308

REFER TO REPAIR MANUAL,MARK2

main11701-21010-03×5i1NZFE..NZE120200107-200308

REFER TO REPAIR MANUAL,MARK3

main11701-21010-04×5i1NZFE..NZE120200107-200308

REFER TO REPAIR MANUAL,MARK4

main11701-21040-01×5i1NZFE..NZE120200308-200403

REFER TO REPAIR MANUAL,MARK1

main11701-21040-02×5i1NZFE..NZE120200308-200403

REFER TO REPAIR MANUAL,MARK2

main11701-21040-03×5i1NZFE..NZE120200308-200403

REFER TO REPAIR MANUAL,MARK3

main11701-21040-04×5i1NZFE..NZE120200308-200403

REFER TO REPAIR MANUAL,MARK4

main11701-22010-01×5i1ZZFE,3ZZFE..ZZE12#200103-200407

MARK 1:REFER TO REPAIR MANUAL,MARK 1

main11701-22010-02×5i1ZZFE,3ZZFE..ZZE12#200103-200407

MARK 2:REFER TO REPAIR MANUAL,MARK 2

main11701-22010-03×5i3ZZFE..ZZE121..TAIW,TH;3ZZFE..ZZE121..MTM..PHL;3ZZFE..ZZE121..ATM..16E..(MA,PHL);1ZZFE..ZZE122..IDN,MA,PHL,TAIW,TH,VN200310-200407

MARK 3,(J)

main11701-22010-04×5i1ZZFE,3ZZFE..ZZE12#200103-200407

MARK 4:REFER TO REPAIR MANUAL,MARK 4

main11701-22011-01×5i1ZZFE,3ZZFE..ZZE12#..TAIW200407-200712

MARK1,(J)

main11701-22011-02×5i1ZZFE,3ZZFE..ZZE12#..TAIW200407-200712

MARK2,(J)

main11701-22011-03×5i1ZZFE..ZZE122..IND200407-200508

MARK3

main11701-22011-04×5i1ZZFE..ZZE122..IND200407-200508

MARK4

11791WASHER, CRANKSHAFT THRUST, UPPER

main11791-0M020×2i1ZZFE..ZZE122..MA,VN;3ZZFE..ZZE121..ATM..MA200310

STD,(L)

main11791-22020×2i1ZZFE..ZZE122..IND200508

STD

main11792-21010×2i1NZFE..NZE120200107-200403

O/S 0.125

main11793-21010×2i1NZFE..NZE120200107-200403

O/S 0.25

13011RING SET, PISTON

main13011-21060i1NZFE..NZE120200107-200403

STD

main13011-22090i1ZZFE..ZZE122..MA,PHL,TAIW,TH200103-200111

STD

main13011-22100i3ZZFE..ZZE121200103-200201

STD

main13011-22111i1ZZFE..ZZE122..IDN,VN200107-200311

STD

main13011-22150i1ZZFE..ZZE122..PHL200310-200802

STD

main13011-22170i3ZZFE..ZZE121200201-200205

STD

main13011-22200i3ZZFE..ZZE121..TAIW,TH;3ZZFE..ZZE121..MTM..PHL;3ZZFE..ZZE121..ATM..16E..(MA,PHL)200310-200410

STD

main13011-22220i3ZZFE..ZZE121..TH200410-200801

STD

13041BEARING, CONNECTING ROD

main13041-0D021-01×4i1ZZFE,3ZZFE..ZZE12#..PHL200407-200802

MARK1,(L)

main13041-0D021-02×4i1ZZFE,3ZZFE..ZZE12#..MA,VN200407

MARK2,(L)

main13041-0D021-03×4i1ZZFE,3ZZFE..ZZE12#..IDN,TH200407-200801

MARK3,(L)

main13041-21030-01×4i1NZFE..NZE120200107-200309

REFER TO REPAIR MANUAL,MARK 1

main13041-21030-02×4i1NZFE..NZE120200107-200309

REFER TO REPAIR MANUAL,MARK 2

main13041-21030-03×4i1NZFE..NZE120200107-200309

REFER TO REPAIR MANUAL,MARK 3

main13041-21031-01×4i1NZFE..NZE120200309-200403

REFER TO REPAIR MANUAL,MARK1

main13041-21031-02×4i1NZFE..NZE120200309-200403

REFER TO REPAIR MANUAL,MARK2

main13041-21031-03×4i1NZFE..NZE120200309-200403

REFER TO REPAIR MANUAL,MARK3

main13041-22023-01×4i3ZZFE..ZZE121..TAIW,TH;3ZZFE..ZZE121..MTM..PHL;3ZZFE..ZZE121..ATM..16E..(MA,PHL);1ZZFE..ZZE122..IDN,MA,PHL,TAIW,TH,VN200310-200407

MARK 1,(J)

main13041-22023-02×4i1ZZFE,3ZZFE..ZZE12#200103-200407

MARK 2:REFER TO REPAIR MANUAL,MARK 2

main13041-22023-03×4i3ZZFE..ZZE121..TAIW,TH;3ZZFE..ZZE121..MTM..PHL;3ZZFE..ZZE121..ATM..16E..(MA,PHL);1ZZFE..ZZE122..IDN,MA,PHL,TAIW,TH,VN200310-200407

MARK 3,(J)

main13041-22024-01×4i1ZZFE,3ZZFE..ZZE12#..IDN,TH200407-200801

MARK1,(J)

main13041-22024-02×4i1ZZFE,3ZZFE..ZZE12#..MA,VN200407

MARK2,(J)

main13041-22024-03×4i1ZZFE,3ZZFE..ZZE12#..TAIW200407-200712

MARK3,(J)

13101PISTON SUB-ASSY, W/PIN

main13101-0D070×4i3ZZFE..ZZE121200103-200401

STD

main13101-0D071×4i3ZZFE..ZZE121..TAIW200503-200712

STD

main13101-0D080×4i1ZZFE..ZZE122..TH200105-200202

STD,(L)

main13101-0D081×4i1ZZFE..ZZE122..TH200202-200311

STD,(L)

main13101-0D082×4i1ZZFE..ZZE122..IDN,TH200508-200801

STD,(L)

main13101-21050×4i1NZFE..NZE120200107-200403

STD

main13101-22030×4i1ZZFE..ZZE122..MA,PHL,TAIW,TH200103-200112

STD

main13101-22031×4i1ZZFE..ZZE122..MA,TAIW200310-200508

STD

main13101-22032×4i1ZZFE..ZZE122..PHL200508-200802

STD,(J)

main13101-22100×4i1ZZFE..ZZE122..IDN,VN200107-200311

STD

13201ROD SUB-ASSY, CONNECTING

main13201-09140×4i3ZZFE..ZZE121200201-200401

(L)

main13201-09490×4i3ZZFE..ZZE121200407-200712

(L)

main13201-09491×4i3ZZFE..ZZE121..MA,PHL200712-200802

(L)

main13201-29038×4i1ZZFE..ZZE122200103-200407

main13201-29115×4i1NZFE..NZE120200107-200209

main13201-29145×4i3ZZFE..ZZE121..TAIW,TH;3ZZFE..ZZE121..MTM..PHL;3ZZFE..ZZE121..ATM..16E..(MA,PHL)200310-200407

main13201-29176×4i1ZZFE..ZZE122..IND200407-200508

main13201-29177×4i1ZZFE..ZZE122..IND,MA,VN200712

main13201-29645×4i3ZZFE..ZZE121..TAIW,TH200407-200801

(J)

main13201-29715×4i1NZFE..NZE120200209-200403

13202BEARING SET, CONNECTING ROD

main13204-21030i1NZFE..NZE120200107-200309

U/S 0.25

main13204-22023i1ZZFE,3ZZFE..ZZE12#200103-200209

U/S 0.25

main13204-22024i1ZZFE..ZZE122..IND200407-200508

U/S 0.25

13265BOLT, CONNECTING ROD

main13265-21020×8i1NZFE..NZE120200107-200403

main13265-22020×8i1ZZFE..ZZE122..IND200310-200705

13405FLYWHEEL SUB-ASSY

main13405-0D030i1ZZFE,3ZZFE..ZZE12#..MTM..(IDN,MA,PHL,TH)200105-200401

TYPE A:REFER ILLUST.

main13405-0D031i1ZZFE..ZZE122..VN200707

(L),T/P A:REF.ILLUST

main13405-21020i1NZFE..NZE120200107-200403

main13405-22020i1ZZFE..ZZE122..MTM..IND; 1ZZFE..ZZE122..VN200703

(J),T/P A:REF.ILLUST; TYPE A:REFER ILLUST.

main13451-22020i1ZZFE,3ZZFE..ZZE12#..MTM..(IDN,IND,PHL,TH,VN)200311-200703

TYPE B:REFER ILLUST.

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-08054×3i1ZZFE..ZZE122..MTM..(IND,VN)200311

L=23,OD=8

main90250-08120×3i1ZZFE,3ZZFE..ZZE12#..MTM..(IDN,TH)200311-200801

L=18,OD=8

13405BBOLT, FLYWHEEL SETTING

main90910-02103×8i1ZZFE,3ZZFE..ZZE12#..MTM200105-200508

main90913-01024×6i1NZFE..NZE120200107-200403

13407DAMPER SUB-ASSY, CRANKSHAFT

main13407-21020i1NZFE..NZE120200107-200403

13411CRANKSHAFT

main13401-21030i1NZFE..NZE120200107-200403

main13401-22020i1ZZFE..ZZE122200103-200508

main13401-22030i3ZZFE..ZZE121..MTM..PHL;3ZZFE..ZZE121..ATM..16E..(MA,PHL)200310-200802

13411CPIN, STRAIGHT(FOR CRANKSHAFT)

main90254-03025i1NZFE..NZE120200107-200403

13453GEAR, FLYWHEEL RING

main13453-0D020i1ZZFE..ZZE122..VN200311

(L)

main13453-10010i1ZZFE..ZZE122..MTM..IND; 1ZZFE..ZZE122..VN200703

(J)

13471PULLEY, CRANKSHAFT

main13470-22020i1ZZFE..ZZE122200103-200111

main13470-22021i1ZZFE..ZZE122200111-200508

main13470-22040i3ZZFE..ZZE121200103-200111

main13470-22041i3ZZFE..ZZE121200111-200401

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90119-12127i1ZZFE,3ZZFE..ZZE12#200103-200508

main90119-12345i1NZFE..NZE120200107-200403

18 parts on this diagram · 2 diagrams in section
