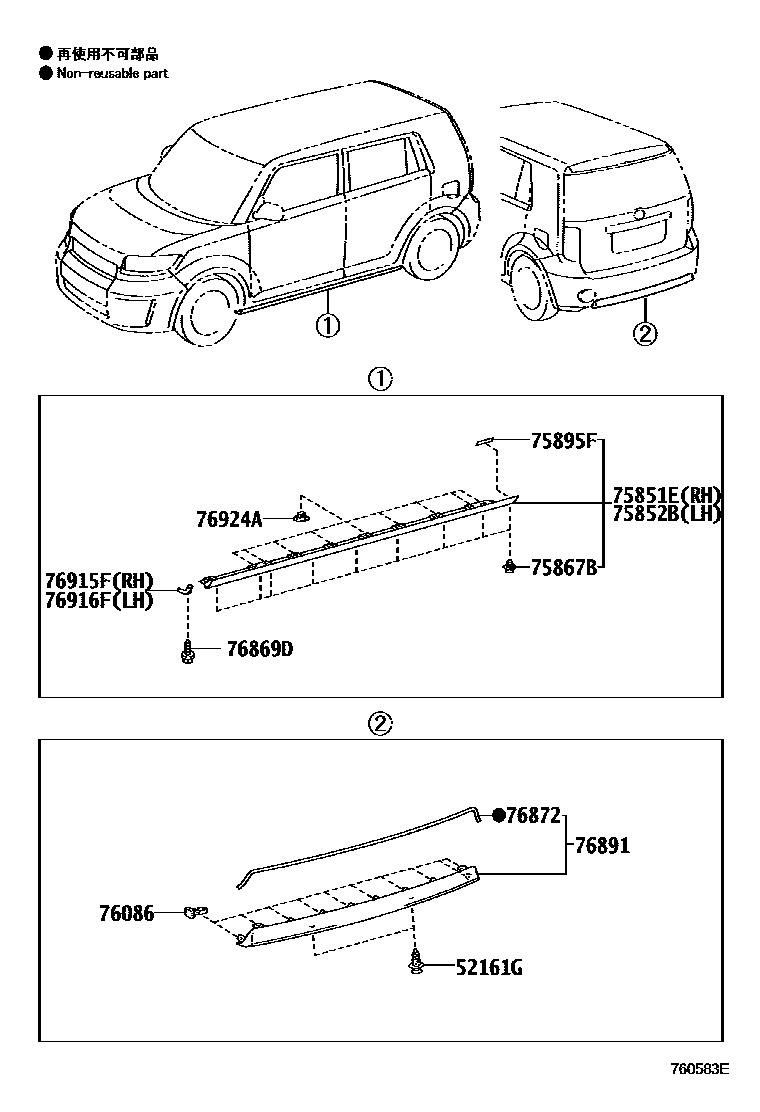

MUDGUARD & SPOILER
52161GPIECE, REAR BUMPER
75851EMOULDING, BODY ROCKER PANEL, RH
SUPER WHITE 2,040
SILVER ME.,1F7
BLACK MC.,209
BLACKISH RED MC.,3R0
SUPER RED 5,3P0
ARMY ROCK ME.,4V0
DK.BLUE MC.,8S6
BLUE ME.,8T4
COOL SODA ME.,8V7
DK.VIOLET M.M.,9AF
BLACK(LESS COLOR)
LIMITED PACKAGE-SPECIAL EDITION,BLUE,8T6
75852BMOULDING, BODY ROCKER PANEL, LH
SUPER WHITE 2,040
SILVER ME.,1F7
BLACK MC.,209
BLACKISH RED MC.,3R0
SUPER RED 5,3P0
ARMY ROCK ME.,4V0
DK.BLUE MC.,8S6
BLUE ME.,8T4
COOL SODA ME.,8V7
DK.VIOLET M.M.,9AF
BLACK(LESS COLOR)
LIMITED PACKAGE-SPECIAL EDITION,BLUE,8T6
75867BCLIP, ROCKER PANEL MOULDING
76086RETAINER SUB-ASSY, REAR SPOILER
76869DSCREW, NO.2
76872PROTECTOR, REAR SPOILER, NO.1
76891SPOILER, REAR NO.1
76915FMUDGUARD, SIDE, FR RH
76916FMUDGUARD, SIDE, FR LH
76924ARETAINER, SIDE MUDGUARD, NO.2
12 parts on this diagram · 1 diagram in section
