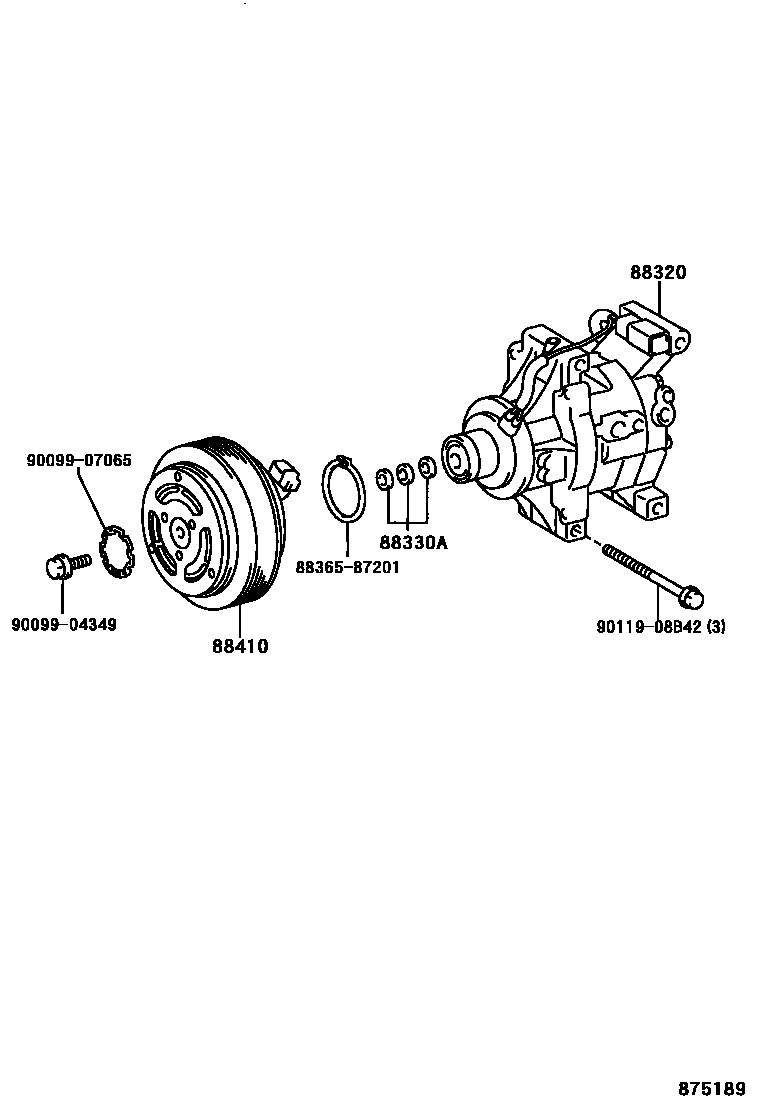

HEATING & AIR CONDITIONING - COMPRESSOR

88320COMPRESSOR ASSY, COOLER

main88320-1A491iZZE122200110-200702

main88320-1A491iZZE122200310-200404

DEALER OPTION

main88320-1A570iZZE122200209-200309

main88320-1A570iZZE122200209-200310

DEALER OPTION

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iZZE122200110-200702

88410CLUTCH ASSY, MAGNET

main88410-1A220iZZE122200110-200209

main88410-1A260iZZE122200209-200309

main88410-1A260iZZE122200209-200310

DEALER OPTION

main88410-1A290iZZE122200309-200702

main88410-1A290iZZE122200310-200404

DEALER OPTION

8836587201RING, SNAP

main88365-87201

9009904349

main90099-04349

9009907065

main90099-07065

9011908B42

main90119-08B42

7 parts on this diagram · 1 diagram in section
