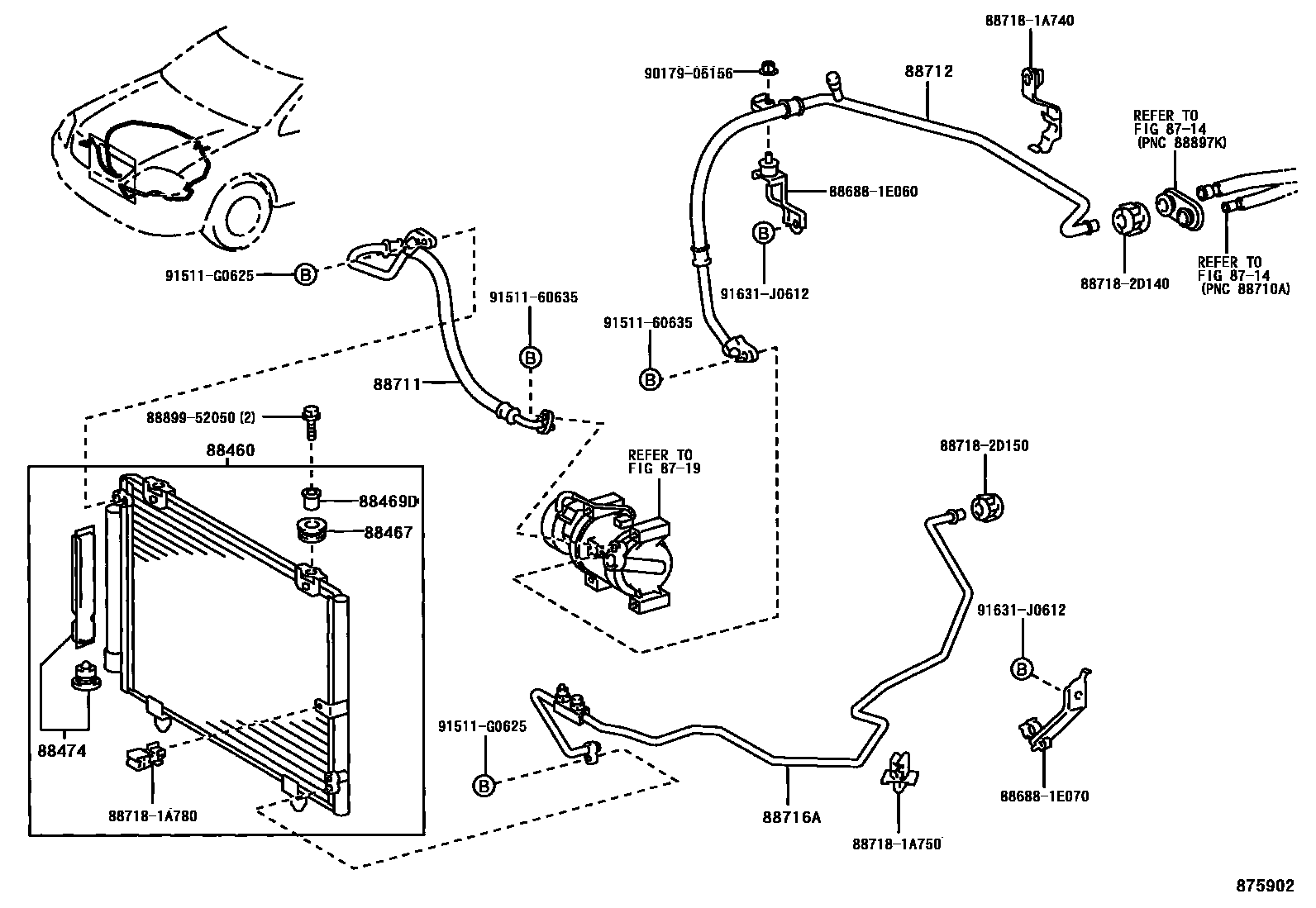

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1MAKER OPTION 0002 1DEALER OPTION 0003 1MAKER OPTION 0004 1DEALER OPTION 0005 1O-RING

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88460CONDENSER ASSY, COOLER

main88450-12210iZZE122..MTM200110-200209

main88450-12211iZZE122..MTM200209-200404

main88450-12231iZZE122..ATM200404-200702

main88450-12240iZZE122..ATM200110-200209

main88450-12241iZZE122..ATM200209-200404

main88450-13031iZZE122..MTM200404-200702

main88460-12551iZZE122200404-200702

DEALER OPTION

main88460-12560iZZE122200110-200209

DEALER OPTION

main88460-12561iZZE122200209-200404

DEALER OPTION

88467CUSHION, COOLER CONDENSER, NO.1

main88467-12180iZZE122200207-200702

88469DCOLLAR, CONDENSER BRACKET, NO.1

main88469-52010iZZE122200207-200702

88474DRYER, COOLER

main88474-17010iZZE122..ATM200209-200404

MAKER OPTION

main88474-17010iZZE122200404-200702

main88474-47010iZZE122200110-200209

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88703-12580iZZE122200110-200210

MAKER OPTION

main88703-12630iZZE122200210-200404

MAKER OPTION

main88703-12770iZZE122200404-200608

MAKER OPTION

main88703-12790iZZE122200404-200702

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88704-12820iZZE122200110-200404

main88704-1A140iZZE122200404-200702

MAKER OPTION

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88710-12510iZZE122200110-200401

main88710-12570iZZE122200209-200404

DEALER OPTION

main88710-12740iZZE122200404-200702

MAKER OPTION

main88710-12750iZZE122200404-200702

886881E060BRACKET, COOLER DIAPHRAGM

main88688-1E060

886881E070BRACKET, COOLER DIAPHRAGM

main88688-1E070

887181A740PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-1A740

887181A750PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-1A750

887181A780PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-1A780

887182D140PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D140

887182D150PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D150

8889952050COVER, EVAPORATOR

main88899-52050

9017906156

main90179-06156

9151160635

main91511-60635

91511G0625

main91511-G0625

91631J0612

main91631-J0612

21 parts on this diagram · 5 diagrams in section
