HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1CONTROL PANEL 0002 1AIR DUCT

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

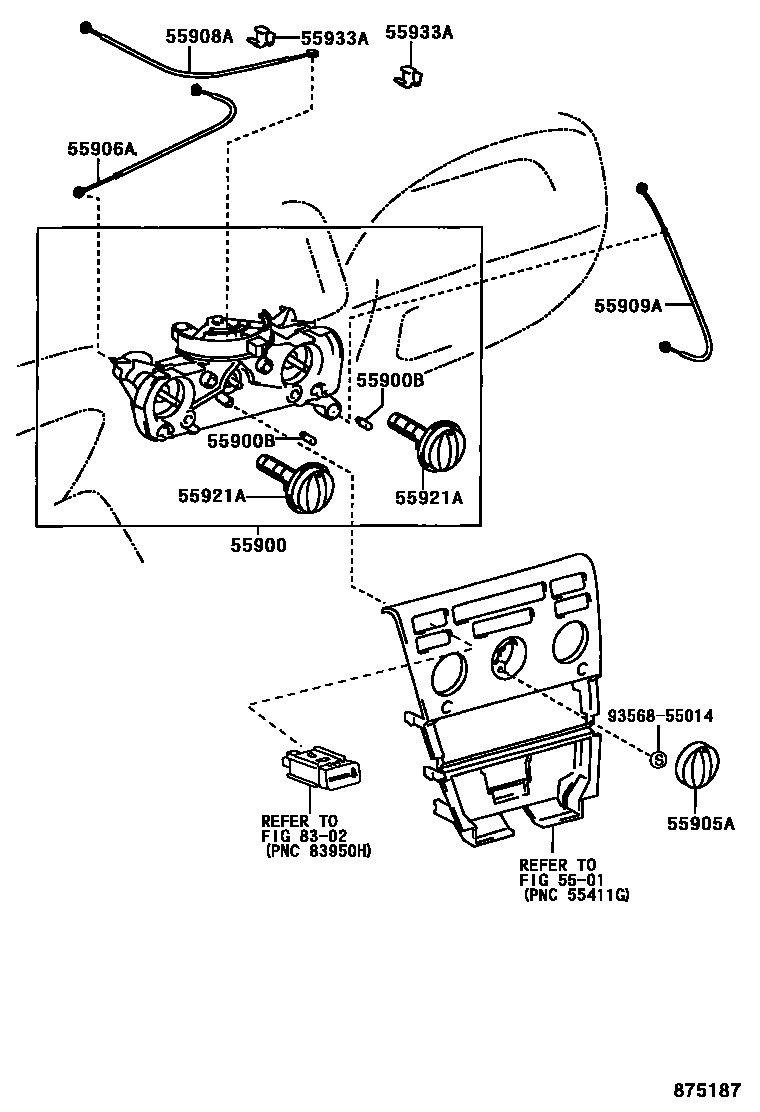

55900CONTROL ASSY, AIR CONDITIONER

main55900-1A030iZZE122200110-200209

main55900-1A070iZZE122200209-200404

main55900-1A071iZZE122200404-200702

55900BBULB, AIR CONDITIONER CONTROL

main90981-11040×2iZZE122200110-200404

12V 2W

55905AKNOB, HEATER CONTROL

main55905-12710iZZE122200110-200209

main55905-12740iZZE122200209-200404

main55905-12741iZZE122200404-200702

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-12410iZZE122200110-200404

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-12330iZZE122200110-200404

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-12320iZZE122200110-200404

55921ARETAINER, HEATER CONTROL

main55921-12150×2iZZE122200110-200209

main55921-12160×2iZZE122200209-200404

main55921-12161×2iZZE122200404-200702

55933ACLAMP, HEATER CONTROL CABLE

main55933-52010×2iZZE122200110-200404

8302INDICATOR

→ Go to FIG 83-02

9356855014

main93568-55014

11 parts on this diagram · 2 diagrams in section
