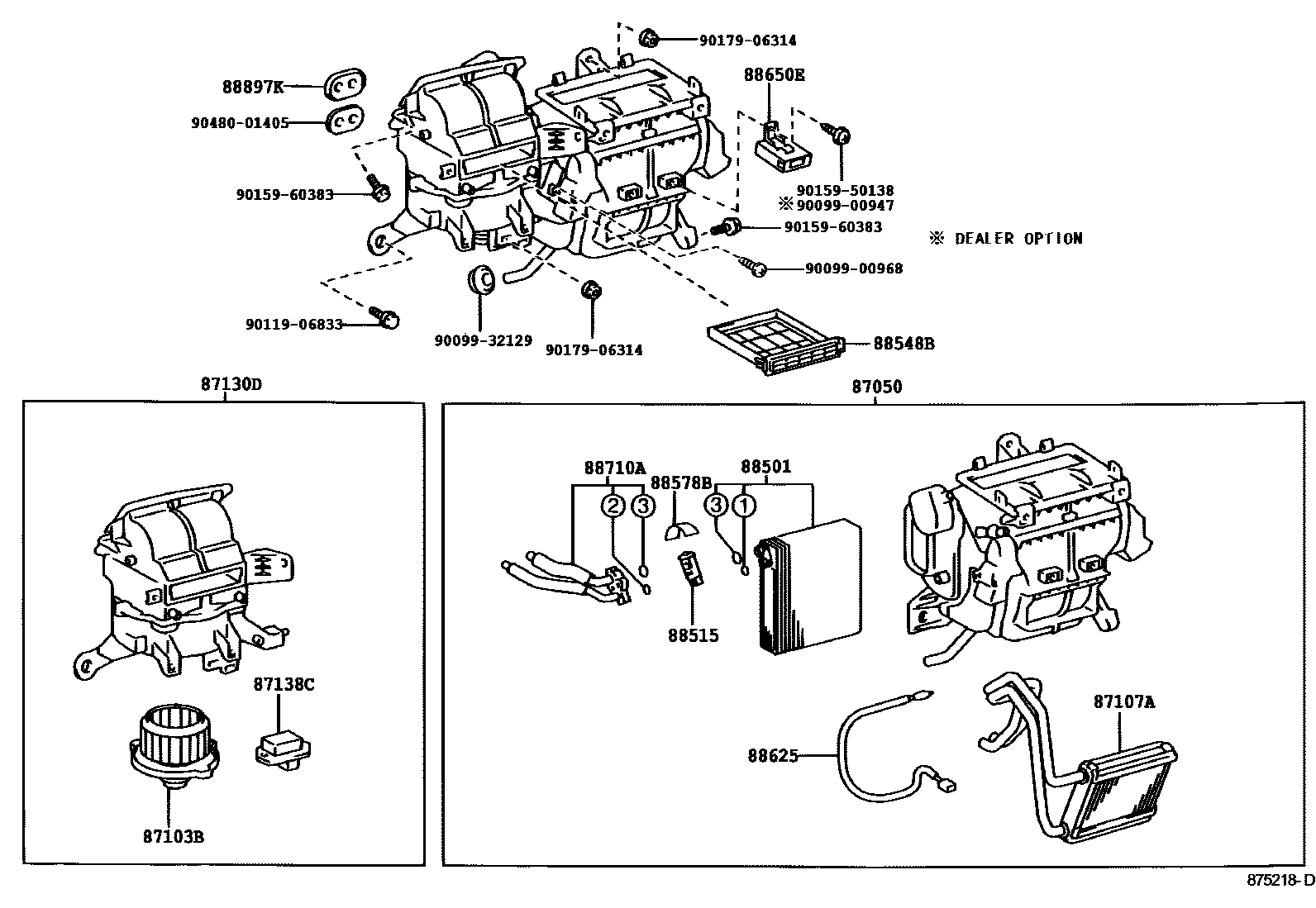

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1 0003 1O-RING

87050RADIATOR ASSY, AIR CONDITIONER

main87050-12050iZZE122200404-200702

W(COOLER)

main87050-12060iZZE122200404-200702

W/O(COOLER)

main87050-12220iZZE122200110-200404

W(COOLER)

main87050-13130iZZE122200110-200404

W/O(COOLER)

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-12050iZZE122200110-200702

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-12540iZZE122200404-200702

main87107-12550iZZE122200110-200404

87130DBLOWER ASSY

main87130-12440iZZE122200110-200702

87138CRESISTOR, BLOWER

main87138-20350iZZE122200110-200702

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-12440iZZE122200110-200702

88515VALVE, COOLER EXPANSION

main88515-27020iZZE122200302-200308

main88515-28160iZZE122200310-200404

DEALER OPTION

main88515-28160iZZE122200308-200702

main88515-48040iZZE122200110-200301

main88515-48040iZZE122200110-200310

DEALER OPTION

88548BCASE, AIR FILTER

main88548-52010iZZE122200110-200702

88578BPACKING, COOLING UNIT, NO.1

main88578-12520iZZE122200110-200702

main88578-12520iZZE122200310-200404

NO.1

88625THERMISTOR, COOLER, NO.1

main88625-21010iZZE122200404-200702

MAKER OPTION

main88625-60140iZZE122200110-200702

88650EAMPLIFIER ASSY, AIR CONDITIONER, NO.1

main88650-1E420iZZE122200110-200702

88710ATUBE ASSY, AIR CONDITIONER

main88710-12540iZZE122200110-200404

main88710-12540iZZE122200404-200702

DEALER OPTION

main88710-12730iZZE122200404-200702

MAKER OPTION

88897KGROMMET, (FOR COOLER PIPE)

main90480-01434iZZE122200110-200702

9009900947

main90099-00947

9009900968

main90099-00968

9009932129

main90099-32129

9011906833

main90119-06833

9015950138

main90159-50138

9015960383

main90159-60383

9017906314

main90179-06314

9048001405

main90480-01405

21 parts on this diagram · 3 diagrams in section
