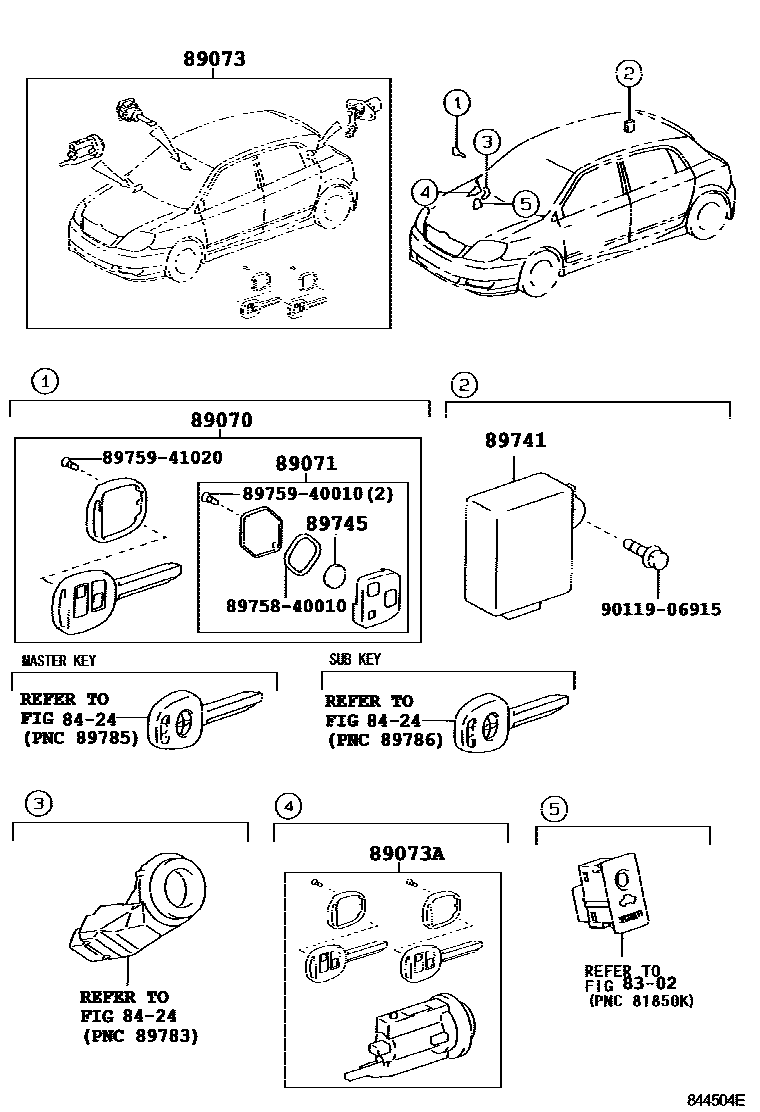

WIRELESS DOOR LOCK

0001 1W(IMMOBILIZER) 0002 1W(IMMOBILIZER)

8302INDICATOR

→ Go to FIG 83-02

8424ANTI-THEFT DEVICE

→ Go to FIG 84-24

89070TRANSMITTER ASSY, DOOR CONTROL

main89070-12120iZZE122200110-200404

main89070-44080iZZE122200404-200604

main89070-44081iZZE122200605

89071MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL

main89071-60030×2iZZE122200404-200702

89073CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE)

main69005-13A10iZZE122200404-200604

main69005-13A11iZZE122200605-200702

main89073-13110iZZE122200110-200404

89073AIGN CYLINDER SET LOCK W/TRANSMITTER HOUSING (CUT KEY)

main69057-12590iZZE122200404-200406

main69057-52290iZZE122200406-200510

main69057-52291iZZE122200511-200702

main89073-12330iZZE122200110-200404

89741RECEIVER, DOOR CONTROL

main89741-12300iZZE122200110-200404

89745BATTERY, TRANSMITTER

main89745-40010×2iZZE122200110-200404

8975840010PACKING, DOOR CONTROL TRANSMITTER

main89758-40010

8975940010SCREW, DOOR CONTROL TRANSMITTER

main89759-40010

8975941020SCREW, DOOR CONTROL TRANSMITTER

main89759-41020

9011906915

main90119-06915

12 parts on this diagram · 2 diagrams in section
