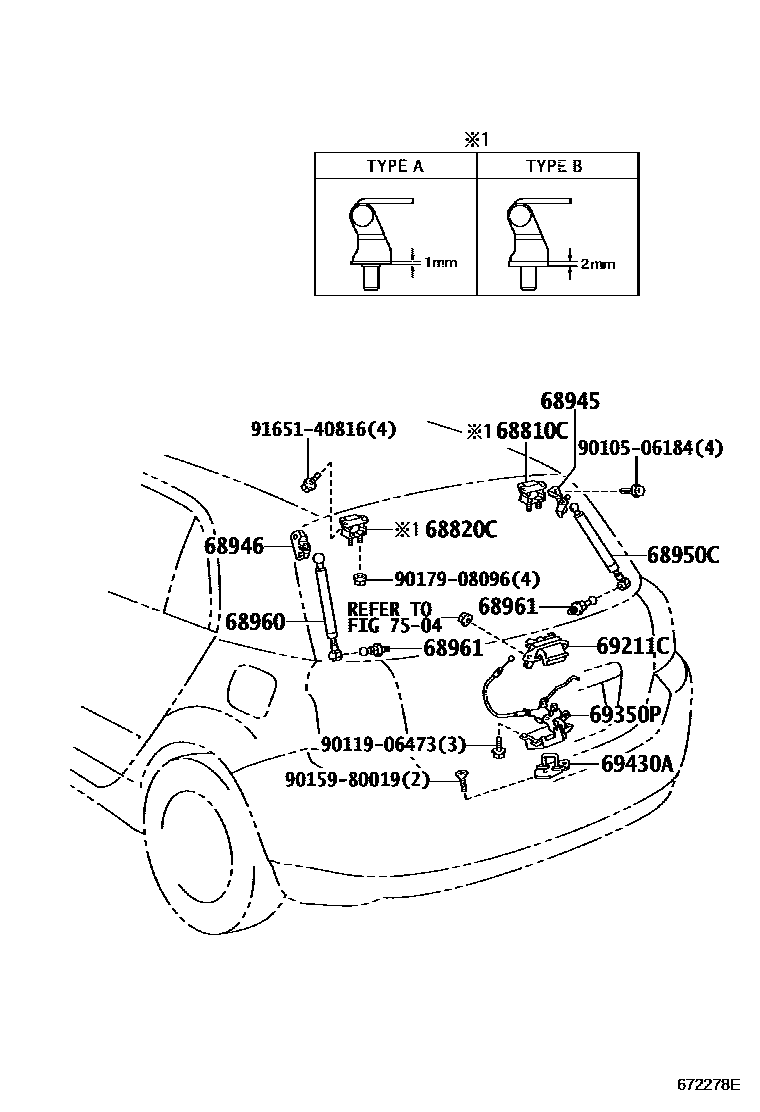

BACK DOOR LOCK & HANDLE

68810CHINGE ASSY, BACK DOOR, RH

main68810-12060iZZE122200409-200702

TYPE B:REFER ILLUST.

main68810-21050iZZE122200404-200409

68820CHINGE ASSY, BACK DOOR, LH

main68810-12060iZZE122200409-200702

TYPE B:REFER ILLUST.

main68810-21050iZZE122200404-200409

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-13050iZZE122200110-200404

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-13050iZZE122200110-200404

68950CSTAY ASSY, BACK DOOR, RH

main68950-0W080iZZE122200404-200412

main68950-0W081iZZE122200501-200702

68960STAY ASSY, BACK DOOR, LH

main68960-0W070iZZE122200110-200404

main68960-0W071iZZE122200501-200702

68961BOLT, BACK DOOR STAY

main68961-10030×2iZZE122200110-200404

69211CHANDLE, BACK DOOR OUTSIDE

main69023-13020iZZE122200110-200404

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-13250iZZE122200110-200209

main69350-13300iZZE122200209-200404

69430ASTRIKER ASSY, BACK DOOR LOWER LOCK

main69430-52020iZZE122200110-200404

7504REAR MOULDING

→ Go to FIG 75-04

9010506184

main90105-06184

9011906473

main90119-06473

9015980019

main90159-80019

9017908096

main90179-08096

9165140816

main91651-40816

16 parts on this diagram · 1 diagram in section
