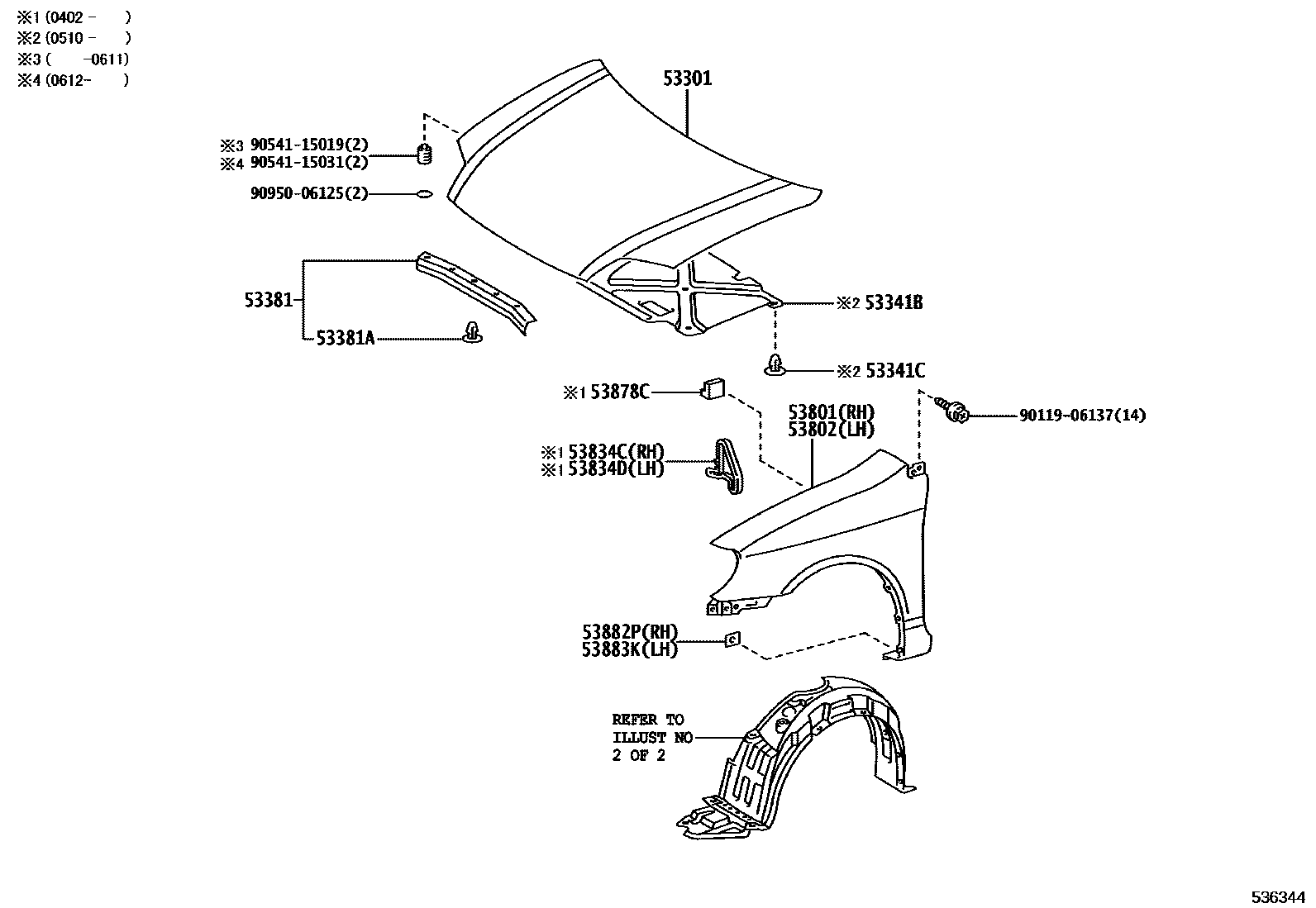

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53301HOOD SUB-ASSY

main53301-12870iZZE122200110-200404

main53301-13060iZZE122200404-200702

53341BINSULATOR, HOOD

main53341-13041iZZE122200510-200702

53341CCLIP(FOR HOOD INSULATOR)

main90467-08124×8iZZE122200510-200702

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-12180iZZE122200110-200404

main53381-13030iZZE122200404-200702

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011×8iZZE122200110-200404

53801FENDER SUB-ASSY, FRONT RH

main53811-13090iZZE122200404-200702

main53811-13120iZZE122..LVN,ULT200404-200702

W(SIDE MUDGUARD)

main53811-1H190iZZE122200110-200404

main53811-1H210iZZE122..LVN,ULT200110-200404

W(SIDE MUDGUARD)

53802FENDER SUB-ASSY, FRONT LH

main53812-13080iZZE122200404-200702

main53812-13110iZZE122..LVN,ULT200404-200702

W(SIDE MUDGUARD)

main53812-1H070iZZE122200110-200404

main53812-1H090iZZE122..LVN,ULT200110-200404

W(SIDE MUDGUARD)

53834CPLATE, FRONT FENDER SUPPORT, RH

main53834-12120iZZE122200402-200404

53834DPLATE, FRONT FENDER SUPPORT, LH

main53834-12120iZZE122200404-200702

53878CSPACER, FRONT FENDER

main53878-12010×2iZZE122200402-200404

53882PSEAL, FRONT FENDER, RH

main53882-16030×3iZZE122200110-200404

53883KSEAL, FRONT FENDER, LH

main53882-16030×3iZZE122200110-200404

9011906137

main90119-06137

9054115019

main90541-15019

9054115031

main90541-15031

9095006125

main90950-06125

16 parts on this diagram · 2 diagrams in section
