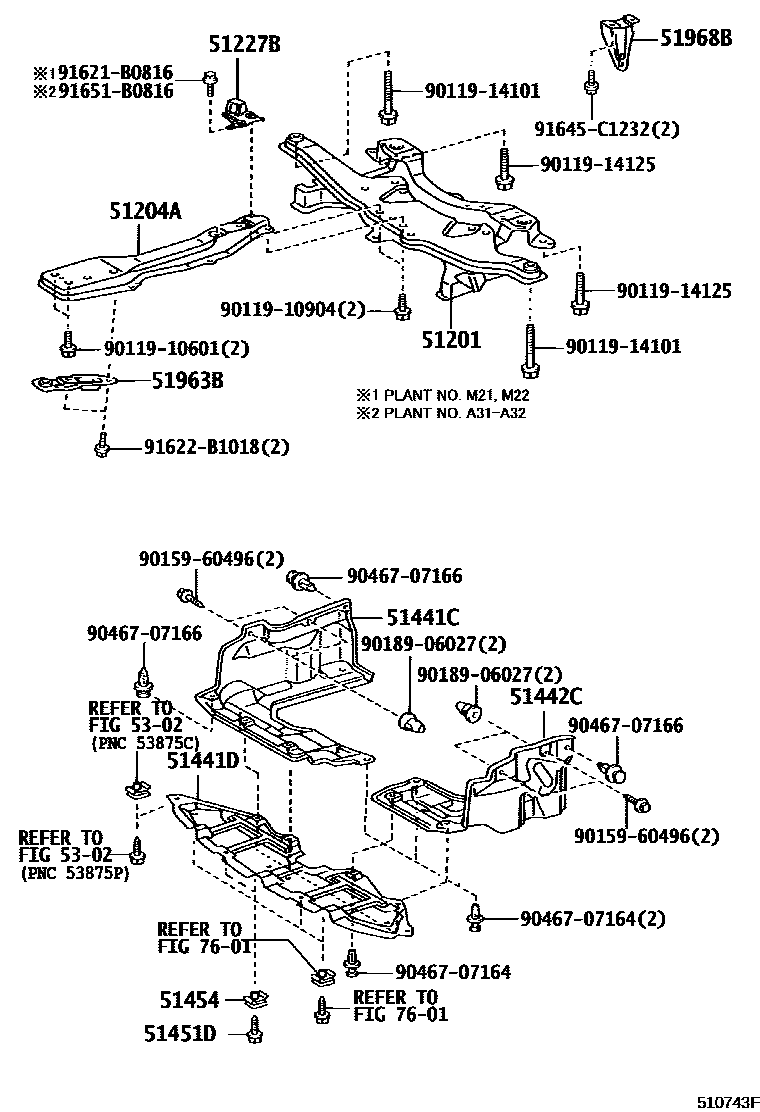

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-12430iZZE122200111-200303

main51201-12431iZZE122200303-200404

main51201-20350iZZE122200110-200111

51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER

main51204-12150iZZE122200110-200404

51227BDAMPER, FRONT SUSPENSION MEMBER DYNAMIC

main51227-12070iZZE122200110-200205

main51227-12080iZZE122200205-200308

main51227-12081iZZE122200308-200404

51441CCOVER, ENGINE UNDER, RH

main51441-12190iZZE122200110-200404

51441DCOVER, ENGINE UNDER

main51451-12020iZZE122200110-200404

main51451-13030iZZE122200404-200702

51442CCOVER, ENGINE UNDER, LH

main51442-12180iZZE122..MTM200110-200404

main51442-12190iZZE122..ATM200110-200404

51451DSCREW, NO.1

main90159-60488×2iZZE122200110-200404

51454CLIP

main90467-05138×2iZZE122200110-200404

51963BHOOK, TRANSPORT, FRONT RH

main51960-13010iZZE122200404-200702

main51963-12240iZZE122200110-200404

51968BHOOK, TRANSPORT, REAR LH

main51968-13040iZZE122200110-200404

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

7601MUDGUARD & SPOILER

→ Go to FIG 76-01

9011910601

main90119-10601

9011910904

main90119-10904

9011914101

main90119-14101

9011914125

main90119-14125

9015960496

main90159-60496

9018906027

main90189-06027

9046707164

main90467-07164

9046707166

main90467-07166

91621B0816

main91621-B0816

91622B1018

main91622-B1018

91645C1232

main91645-C1232

91651B0816

main91651-B0816

24 parts on this diagram · 1 diagram in section
