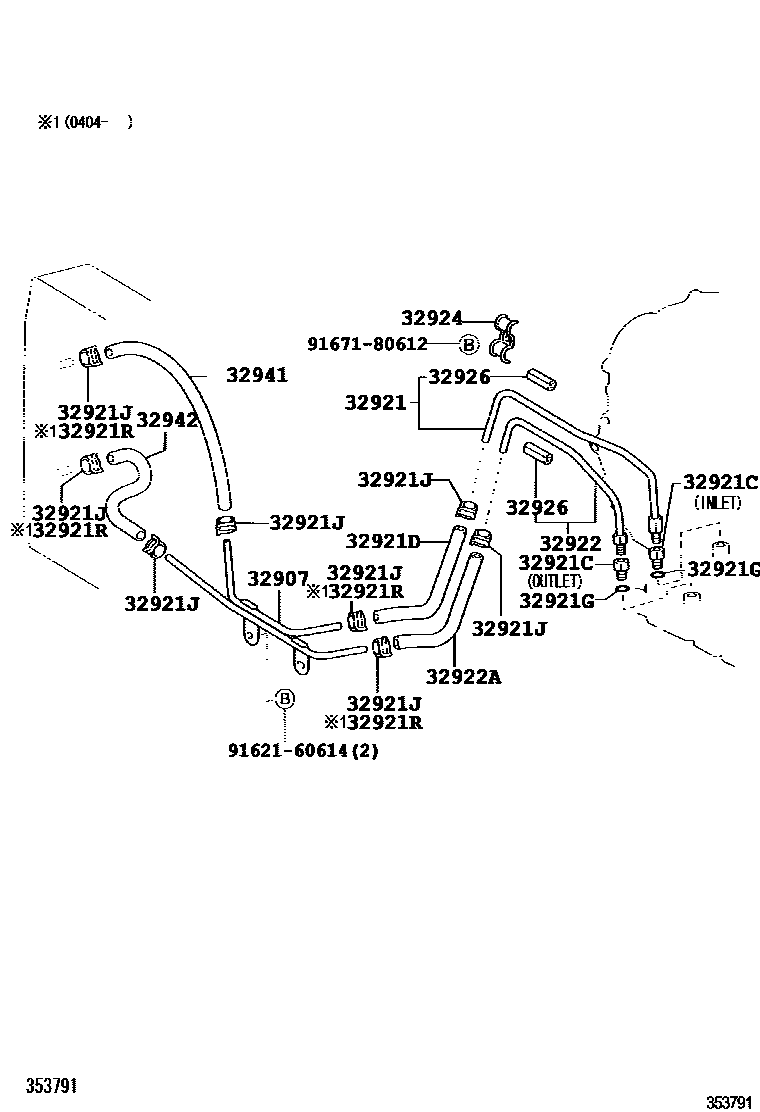

OIL COOLER & TUBE (ATM)

32907TUBE SUB-ASSY, OIL COOLER OUTLET, NO.2

main32907-12020iZZE122..ATM200110-200404

32921TUBE, OIL COOLER INLET, NO.1

main32921-12430iZZE122..ATM200110-200404

main32921-12460iZZE122..ATM200510-200511

main32921-13030iZZE122..ATM200511-200702

32921CUNION(FOR OIL COOLER TUBE)

main90404-14007iZZE122..ATM200510-200702

OUTLET

main90404-14019×2iZZE122..ATM200110-200404

main90407-14003iZZE122..ATM200510-200702

INLET

32921DHOSE(FOR OIL COOLER INLET)

main32943-12020iZZE122..ATM200404-200510

L=225

main90445-15042iZZE122..ATM200510-200702

main90445-15050iZZE122..ATM200404-200510

L=220

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189×2iZZE122..ATM200510-200702

main90301-11006×2iZZE122..ATM200110-200404

32921JCLIP(FOR OIL COOLER HOSE)

main96135-51300×8iZZE122..ATM200110-200403

32921RCLIP, NO.2(FOR OIL COOLER HOSE)

main96135-51300×4iZZE122..ATM200404-200611

main96137-41501×4iZZE122..ATM200611-200702

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-12300iZZE122..ATM200110-200404

main32922-12350iZZE122..ATM200510-200511

main32922-13040iZZE122..ATM200511-200702

32922AHOSE(FOR OIL COOLER OUTLET)

main90445-15020iZZE122..ATM200510-200702

main90445-15050iZZE122..ATM200404-200510

32924CLAMP, OIL COOLER TUBE, NO.2

main90462-10127iZZE122..ATM200110-200404

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-10010×2iZZE122..ATM200110-200404

L=30,ID=8

32941HOSE, OIL COOLER INLET, NO.1

main90445-15039iZZE122..ATM200110-200404

32942HOSE, OIL COOLER OUTLET, NO.1

main90445-15050iZZE122..ATM200110-200404

9162160614

main91621-60614

9167180612

main91671-80612

15 parts on this diagram · 1 diagram in section
