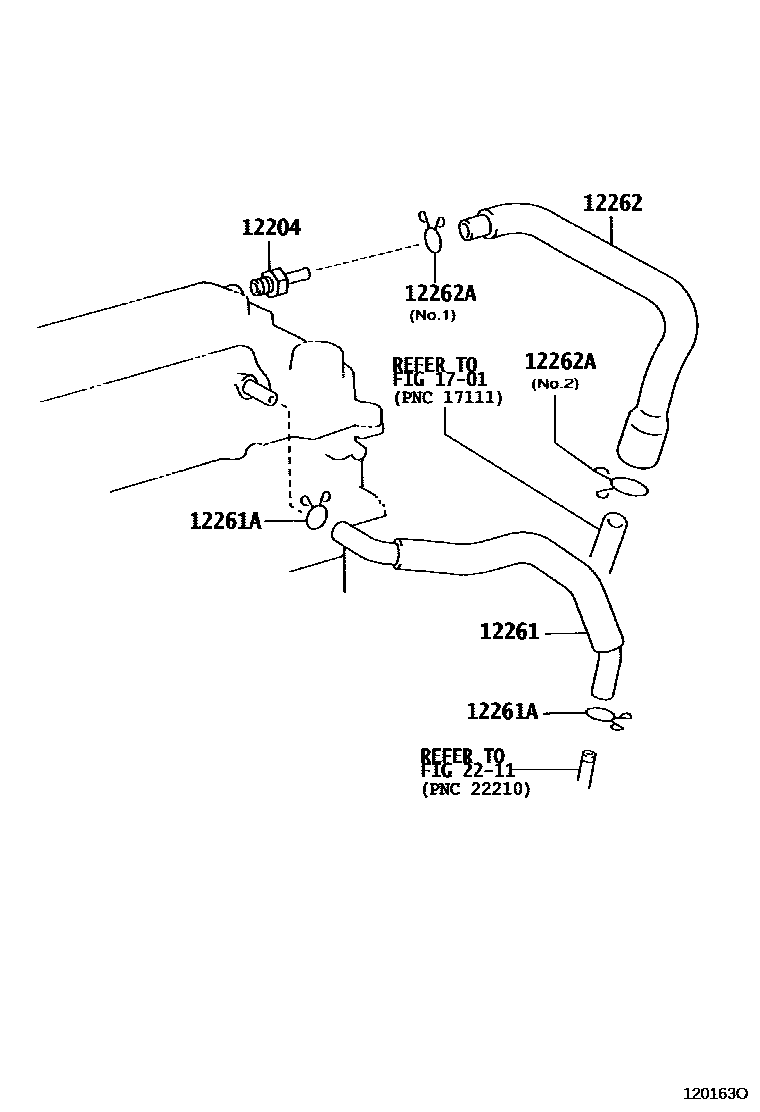

VENTILATION HOSE
12204VALVE SUB-ASSY, VENTILATION
12261HOSE, VENTILATION
(L)
(J)
12261ACLIP OR CLAMP(FOR VENTILATION HOSE)
12262HOSE, VENTILATION, NO.2
(L)
(J)
12262ACLIP(FOR VENTILATION HOSE NO.2)
NO.2
NO.1
NO.2
1701MANIFOLD
2211FUEL INJECTION SYSTEM
7 parts on this diagram · 2 diagrams in section
