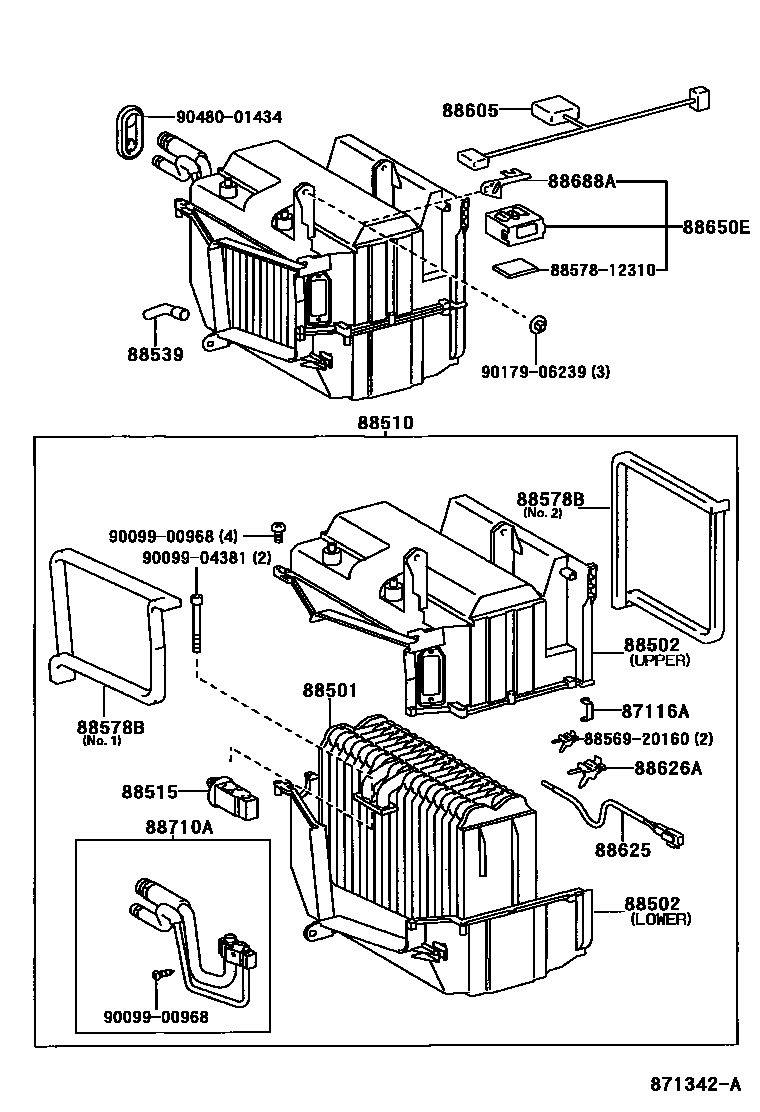

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1DEALER OPTION 0002 1MAKER OPTION 0003 1O RING

87116ASPRING, HOLDING (FOR COOLER UNIT CASE)

main87116-14010×3iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-12391iAE11#,EE110..RHD199704-199910

main88501-12401iAE11#,EE110..LHD199704-199910

88502CASE SUB-ASSY, COOLING UNIT

main88502-12190iAE11#,EE110..RHD199704-199910

UPPER

main88502-12200iAE11#..RHD..(ARL,GEN)199704-200109

LOWER

main88502-12210iAE112,EE110..GCC199704-200008

UPPER

main88502-12220iAE112,EE110..GCC199704-200008

LOWER

88510UNIT ASSY, COOLER

main88510-1A300iAE111..GLI..GEN199704-200109

DEALER OPTION

main88510-1A310iAE11#,EE110..LHD199704-199910

88515VALVE, COOLER EXPANSION

main88515-20100iAE11#,EE110199704-199910

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-12160iAE111..GLI..GEN;AE112,EE110..GCC; AE112..GCC;AE111,EE110199704-199808

88578BPACKING, COOLING UNIT, NO.1

main88578-12470iAE11#,EE110..RHD; AE11#..RHD..(ARL,GEN)199704-199910

NO.1

main88578-12490iAE112,EE110..GCC199704-200008

NO.1

main88578-20470iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

NO.2

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-1E800iAE111..GL; EE110..GEN199704-199910

MAKER OPTION

main88605-1E810iEE110..GEN199704-199910

W(POWER STEERING)

main88605-1E820iAE111..GL; EE110..GEN199704-199910

MAKER OPTION,W/O(HEATER); W/O(HEATER)

main88605-1E830iEE110..GEN199704-199910

W(POWER STEERING) & W/O(HEATER)

main88605-1H120iAE111..GL199704-199910

DEALER OPTION

main88605-1H130iAE111..GL199704-199910

DEALER OPTION,W/O(HEATER)

main88605-1H240iEE110..GCC199704-199910

main88605-1H250iEE110..GCC199704-199812

W/O(HEATER)

main88605-1H260iEE110..GCC199704-200008

W(POWER STEERING)

main88605-1H270iEE110..GCC199704-199812

W(POWER STEERING) & W/O(HEATER)

88625THERMISTOR, COOLER, NO.1

main88625-12240iAE112,EE110..GCC199910-200008

main88625-12280iAE11#,EE110; AE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-199910

88626AHOLDER, THERMISTOR

main88626-28010iAE11#,EE110199704-199910

88650EAMPLIFIER ASSY, AIR CONDITIONER, NO.1

main88650-1A500iEE110..GCC199704-200008

main88650-1E040iAE11#..GLI,XLI199704-199910

main88650-1E070iAE11#..(GLI,XLI)..(GCC,GEN)199704-199812

W/O(HEATER)

88688ABRACKET, COOLER STABILIZER AMPLIFIER

main88688-1A070iEE110..GEN199704-199910

main88688-1A090iAE11#..RHD; AE111..GLI..GEN199704-199808

main88688-1A280iAE111..GL199704-199910

88710ATUBE ASSY, AIR CONDITIONER

main88710-12330iAE11#..RHD..(ARL,GEN)199704-200109

main88710-12340iAE112,EE110..GCC199704-200008

8856920160CLAMP (FOR COOLER RELAY)

main88569-20160

8857812310PAKING, COOLER AIR DUCT

main88578-12310

9009900968

main90099-00968

9009904381

main90099-04381

9017906239

main90179-06239

9048001434

main90480-01434

19 parts on this diagram · 3 diagrams in section
