SEAT BELT & CHILD RESTRAINT SEAT

73135ACOVER, SHOULDER BELT ANCHOR, RH

main73135-12030-B1iAE112..XLI..ARL199904-199906

AUSTRALIA,SHADOW GRAY,TRIM12

main73135-12030-B3iAE11#,EE110..ARL,GCC,GEN199808-199910

MD.CHARCOAL,TRIM1#

73136ACOVER, SHOULDER BELT ANCHOR, LH

main73135-12030-B1iAE112..XLI..ARL199904-199906

AUSTRALIA,SHADOW GRAY,TRIM12

main73135-12030-B3iAE11#,EE110..ARL,GCC,GEN199808-199910

MD.CHARCOAL,TRIM1#

73178ACAP, SEAT BELT ANCHOR COVER

main73178-12040-B4×2iAE11#,EE110..(GLI,XL,XLI)..(ARL,GCC); AE111..GLI..GEN199704-200109

MD.CHARCOAL,TRIM1#; W(*80,DRIVER SIDE),MD.CHARCOAL,TRIM1#

main73178-12040-B9iAE112..XLI..ARL199904-199906

AUSTRALIA,SHADOW GRAY,TRIM12

main73178-34010-B7×2iAE11#,EE110..GEN,NZ; AE111..GLI..GEN199704-199808

MD.CHARCOAL,TRIM1#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-12050-B1×2iAE11#,EE110..ARL,GCC,GEN199808-199910

MD.CHARCOAL,TRIM1#

main73200-12050-B4iAE112..XLI..ARL199904-199906

AUSTRALIA,SHADOW GRAY,TRIM12

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-1A070-B2iAE111,EE110..GEN; AE111..GLI..GEN199704-199808

MD.CHARCOAL,TRIM1#

main73210-1A071-B2iAE111,EE110..GEN; AE111..GLI..GEN199808-199910

SHADOW GRAY,TRIM1#

main73210-1A071-B7iAE111..GEN199910-200109

GRAY,TRIM1#

main73210-1A151-B2iAE111..GLI..GEN199808-199910

SINGAPORE SPEC & W(*80,DRIVER SIDE & PASSENGER SIDE),SHADOW GRAY,TRIM1#

main73210-1A151-P0iAE111..GEN199910-200010

SINGAPORE SPEC & W(*80,DRIVER SIDE & PASSENGER SIDE),GRAY,TRIM1#

main73210-1A160-B0iAE11#..NZ199710-199808

MD.CHARCOAL,TRIM1#

main73210-1A161-B0iAE111..GLI..GEN199808-199910

SINGAPORE SPEC,SHADOW GRAY,TRIM1#

main73210-1A161-B4iAE111..GEN199910-200010

SINGAPORE SPEC,GRAY,TRIM1#

main73210-1A181-B5iAE111..GEN199910-200109

W(*80,DRIVER SIDE),GRAY,TRIM1#

main73210-1A270-B1iAE111,EE110..GEN; AE111..GLI..GEN199704-199808

W(*80,DRIVER SIDE & PASSENGER SIDE),MD.CHARCOAL,TRIM1#

main73210-1A271-B1iAE111,EE110..GEN; AE111..GLI..GEN199808-199910

W(*80,DRIVER SIDE & PASSENGER SIDE),SHADOW GRAY,TRIM1#

main73210-1A271-B2iAE11#,EE110..GCC,GEN199910-200109

W(*80,DRIVER SIDE & PASSENGER SIDE),GRAY,TRIM1#

main73210-1A280-B1iAE112,EE110..GCC199704-199808

SHADOW GRAY,TRIM1#

main73210-1A281-B1iAE112,EE110..GCC199808-199910

SHADOW GRAY,TRIM1#

main73210-1A281-B2iAE112,EE110..GCC199910-200008

GRAY,TRIM1#

main73210-1A300-B0iAE11#..ARL199808-199910

SHADOW GRAY,TRIM1#

main73210-1A300-B1iAE112..XLI..ARL199904-199906

AUSTRALIA,SHADOW GRAY,TRIM12

main73210-1A300-B2iAE11#..(GLI,XLI)..ARL199910-200109

GRAY,TRIM1#

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-12850-B2iAE11#,EE110..GEN,NZ; AE111..GLI..GEN199704-199808

MD.CHARCOAL,TRIM1#

main73220-12851-B2iAE111,EE110..GEN; AE111..GLI..GEN199808-199910

SHADOW GRAY,TRIM1#

main73220-12851-B7iAE111..GEN199910-200109

GRAY,TRIM1#

main73220-1A050-B2iAE111,EE110..GEN; AE111..GLI..GEN199704-199808

W(*80,DRIVER SIDE & PASSENGER SIDE),MD.CHARCOAL,TRIM1#

main73220-1A051-B2iAE111,EE110..GEN; AE111..GLI..GEN199808-199910

W(*80,DRIVER SIDE & PASSENGER SIDE),SHADOW GRAY,TRIM1#

main73220-1A051-P0iAE111..GEN199910-200109

W(*80,DRIVER SIDE & PASSENGER SIDE),GRAY,TRIM1#

main73220-1A081-B0iAE11#..ARL199808-199910

W(*80,DRIVER SIDE & PASSENGER SIDE),SHADOW GRAY,TRIM1#

main73220-1A081-B3iAE112..GT199910-200109

W(*80,DRIVER SIDE & PASSENGER SIDE),SHADOW GRAY,TRIM1#

main73220-1A081-B5iAE11#..(GLI,XLI)..ARL199910-200109

W(*80,DRIVER SIDE & PASSENGER SIDE),GRAY,TRIM1#

main73220-1A091-B0iAE11#..ARL199808-199910

SHADOW GRAY,TRIM1#

main73220-1A091-B2iAE112..XLI..ARL199904-199906

AUSTRALIA,SHADOW GRAY,TRIM12

main73220-1A091-B3iAE11#..RHD..(GLI,XLI)199910-200109

W(*80,DRIVER SIDE),GRAY,TRIM1#

main73220-1A161-B4iAE112,EE110..GCC199910-200008

GRAY,TRIM1#

main73220-1A170-B1iAE112,EE110..GCC199704-199808

SHADOW GRAY,TRIM1#

main73220-1A171-B1iAE112,EE110..GCC199808-199910

SHADOW GRAY,TRIM1#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-12580-B0iAE112..GT199910-200109

SHADOW GRAY,TRIM1#

main73230-12580-B2iAE11#,EE110..ARL,GCC,GEN199704-199910

MD.CHARCOAL,TRIM1#

main73230-12590-B2iAE111..GLI199906-200109

FABRIC SEAT,MD.CHARCOAL,TRIM1#

main73230-12620-B1iAE111,EE110..GEN; AE111..GLI..GEN199704-199906

FABRIC SEAT,MD.CHARCOAL,TRIM1#

73233COVER, LAP BELT OUTER ANCHOR

main73233-33010-B8×2iAE11#200008-200109

DK.GRAY,TRIM11

main73233-33010-C0×2iAE11#,EE110; AE111..GLI..GEN;AE112,EE110..GCC199704-199808

BLACK,TRIM1#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-12580-B0iAE112..XLI..ARL199904-199906

AUSTRALIA,SHADOW GRAY,TRIM12

main73230-12580-B2iAE11#,EE110..ARL,GCC,GEN199704-199910

MD.CHARCOAL,TRIM1#

main73230-12590-B2iAE111,EE110..(GL,XL)..GEN; AE111..GLI199906-199910

FABRIC SEAT,MD.CHARCOAL,TRIM1#; W/O(*80),MD.CHARCOAL,TRIM1#

main73230-12620-B1iAE111,EE110..GEN; AE111..GLI..GEN199704-199906

FABRIC SEAT,MD.CHARCOAL,TRIM1#

73350CBELT ASSY, REAR SEAT, OUTER CENTER

main73350-12240-B0iAE112..XLI..ARL199904-199906

AUSTRALIA,SHADOW GRAY,TRIM12

main73350-12240-B1iAE11#..ARL199808-199910

MD.CHARCOAL,TRIM1#

main73350-12240-B6iAE11#..(GLI,XLI)..ARL199910-200109

GRAY,TRIM1#

73360BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH

main73360-12660-B0iAE11#,EE110; AE111..GLI..GEN;AE112,EE110..GCC199704-199808

MD.CHARCOAL,TRIM1#

main73360-12661-B0iAE11#,EE110..ARL,GCC,GEN; AE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199808-199910

SHADOW GRAY,TRIM1#

main73360-12661-B3iAE112..XLI..ARL199904-199906

AUSTRALIA,SHADOW GRAY,TRIM12

main73360-12661-B4iAE11#,EE110..GLI,XL,XLI199910-200109

GRAY,TRIM1#

73370BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH

main73370-12460-B0iAE11#,EE110; AE111..GLI..GEN;AE112,EE110..GCC199704-199808

MD.CHARCOAL,TRIM1#

main73370-12461-B0iAE11#,EE110..ARL,GCC,GEN; AE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199808-199910

SHADOW GRAY,TRIM1#

main73370-12461-B3iAE112..XLI..ARL199904-199906

AUSTRALIA,SHADOW GRAY,TRIM12

main73370-12461-B4iAE11#,EE110..GLI,XL,XLI199910-200109

GRAY,TRIM1#

73373COVER, REAR SEAT SHOULDER BELT

main73373-12010-B0iAE112..XLI..ARL199904-199906

AUSTRALIA,SHADOW GRAY,TRIM12

main73373-12010-B1iAE11#..NZ199710-199808

MD.CHARCOAL,TRIM1#

73380BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH

main73380-12400-B0iAE11#,EE110..GCC,GEN; AE111..GLI..GEN;AE112,EE110..GCC199704-199910

W/O(CENTER BELT),SHADOW GRAY,TRIM1#

main73380-12400-B1iAE11#,EE110..GCC,GEN199910-200109

W/O(CENTER BELT),GRAY,TRIM1#

main73470-12100-B0iAE11#..NZ199710-199808

SHADOW GRAY,TRIM1#

main73470-12100-B1iAE112..GT199910-200109

SHADOW GRAY,TRIM1#

main73470-12100-B2iAE11#..(GLI,XLI)..ARL199910-200109

GRAY,TRIM1#

main73470-12130-B1iAE11#,EE110..GCC,GEN; AE111..GLI..GEN;AE112,EE110..GCC199704-199910

SHADOW GRAY,TRIM1#

main73470-12130-B2iAE11#,EE110..GCC,GEN199910-200109

GRAY,TRIM1#

main77347-12100-B1iAE112..XLI..ARL199904-199906

AUSTRALIA,SHADOW GRAY,TRIM12

73390BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH

main73380-12390-B0iAE11#..ARL199808-199910

SHADOW GRAY,TRIM1#

main73380-12390-B1iAE112..XLI..ARL199904-199906

AUSTRALIA,SHADOW GRAY,TRIM12

main73380-12390-B2iAE11#..(GLI,XLI)..ARL199910-200109

GRAY,TRIM1#

main73380-12400-B0iAE11#,EE110..GCC,GEN; AE111..GLI..GEN;AE112,EE110..GCC199704-199910

W/O(CENTER BELT),SHADOW GRAY,TRIM1#

main73380-12400-B1iAE11#,EE110..GCC,GEN199910-200109

W/O(CENTER BELT),GRAY,TRIM1#

main73480-12140-B1iAE11#,EE110..GCC,GEN; AE111..GLI..GEN;AE112,EE110..GCC199704-199910

SHADOW GRAY,TRIM1#

main73480-12140-B2iAE11#,EE110..GCC,GEN199910-200109

GRAY,TRIM1#

73709BRACKET SUB-ASSY, TETHER ANCHOR

main73708-12040iAE11#..ARL199808-199810

main73708-12050iAE11#..ARL199810-199910

main73708-12080iAE11#..ARL199910-200109

9008011272

main90080-11272

9008410013

main90084-10013

9010510162

main90105-10162

9010511036

main90105-11036

9010911027

main90109-11027

9010911028

main90109-11028

9010911030

main90109-11030

9017911010

main90179-11010

9020506002

main90205-06002

9090119040

main90901-19040

9163140614

main91631-40614

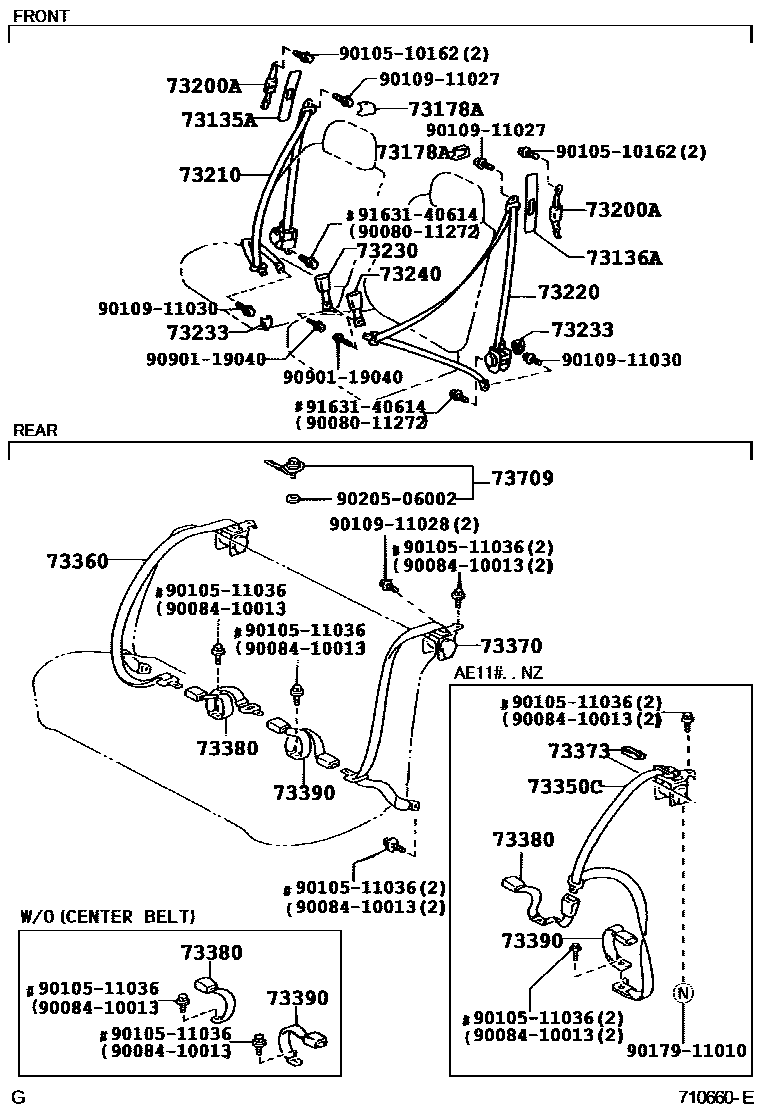

27 parts on this diagram · 1 diagram in section
