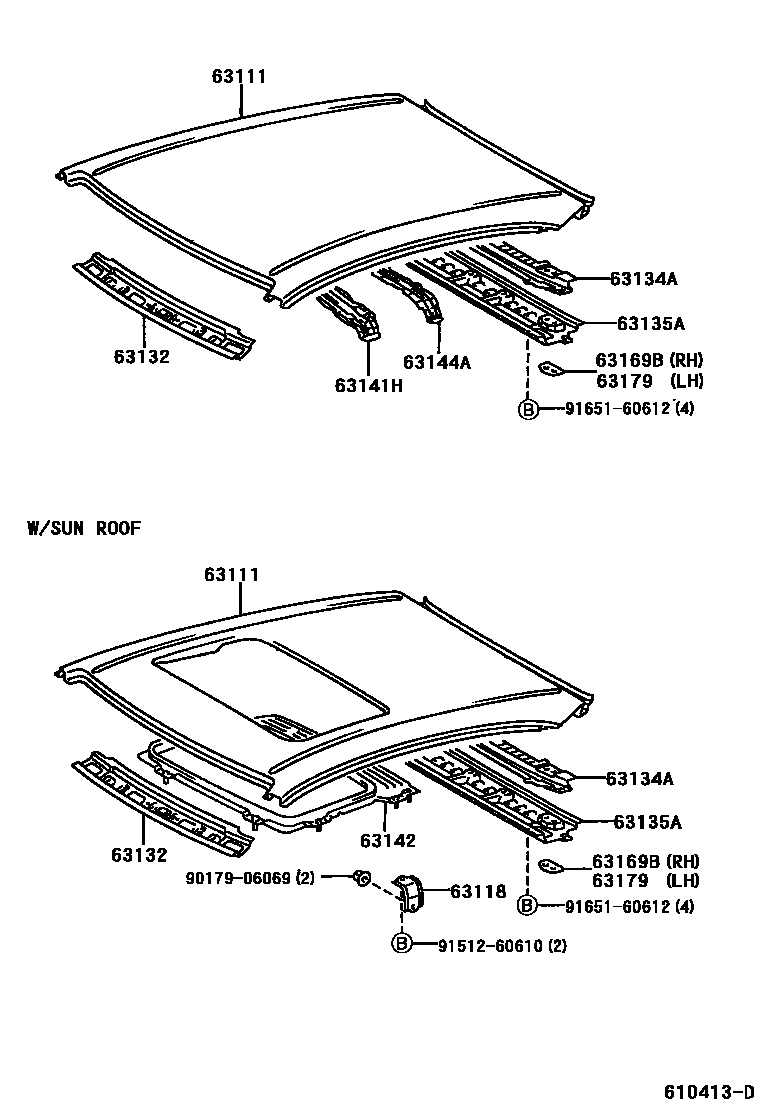

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1

63111PANEL, ROOF

main63111-12720iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

main63111-12730iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

W(MOON ROOF)

63118SUPPORT, ROOF PANEL, RH

main63118-12080×2iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

63132PANEL, WINDSHIELD HEADER, INNER

main63132-12210iAE11#,EE110199704-199910

63134AFRAME, BACK DOOR OPENING, UPPER

main63134-12180iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

63135AFRAME, BACK DOOR OPENING, LOWER

main63135-12120iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-12200iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-12080iAE11#,EE110..ARL,GCC,GEN199704-199910

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-12070iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

63169BPLATE, ROOF PANEL REINFORCEMENT, RH

main63169-35010iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

63179PLATE, ROOF PANEL REINFORCEMENT, LH

main63179-35010iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

9017906069

main90179-06069

9151260610

main91512-60610

9165160612

main91651-60612

13 parts on this diagram · 2 diagrams in section
