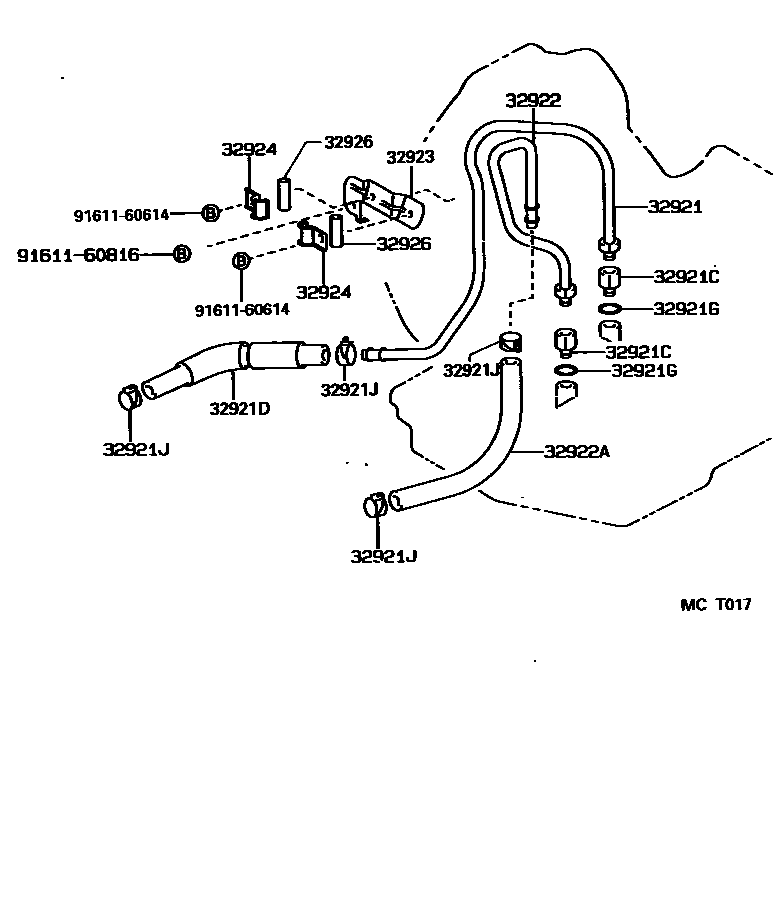

OIL COOLER & TUBE (ATM)

32921TUBE, OIL COOLER INLET, NO.1

main32921-12300iAE11#..4FC199704-199709

main32921-12301iAE11#..4FC199709-199910

32921CUNION(FOR OIL COOLER TUBE)

main32901-12030iAE11#..4FC200008-200109

OUTLET

main90404-14007iAE11#..4FC200008-200109

INLET

32921DHOSE(FOR OIL COOLER INLET)

main32941-12171iAE11#..4FC..(ARL,GCC,GEN)199704-200109

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189×2iAE11#..4FC..(ARL,GCC,GEN)199704-200008

32921JCLIP(FOR OIL COOLER HOSE)

main90467-13039×4iAE11#..4FC..(ARL,GCC,GEN)199704-200109

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-12320iAE11#..4FC..(ARL,GCC,GEN)199704-200109

32922AHOSE(FOR OIL COOLER OUTLET)

main90445-15042iAE11#..4FC199704-199910

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-12200iAE11#..4FC..(ARL,GCC,GEN)199704-200109

32924CLAMP, OIL COOLER TUBE, NO.2

main90462-10082×2iAE11#..4FC..(ARL,GCC,GEN)199704-200109

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-10010iAE11#..4FC; AE11#..4FC..(ARL,GCC,GEN)199704-199910

L=30,ID=8

main32926-22010iAE11#..4FC..(ARL,GCC,GEN)199704-200109

L=35,ID=8

9161160614

main91611-60614

9161160816

main91611-60816

12 parts on this diagram · 1 diagram in section
