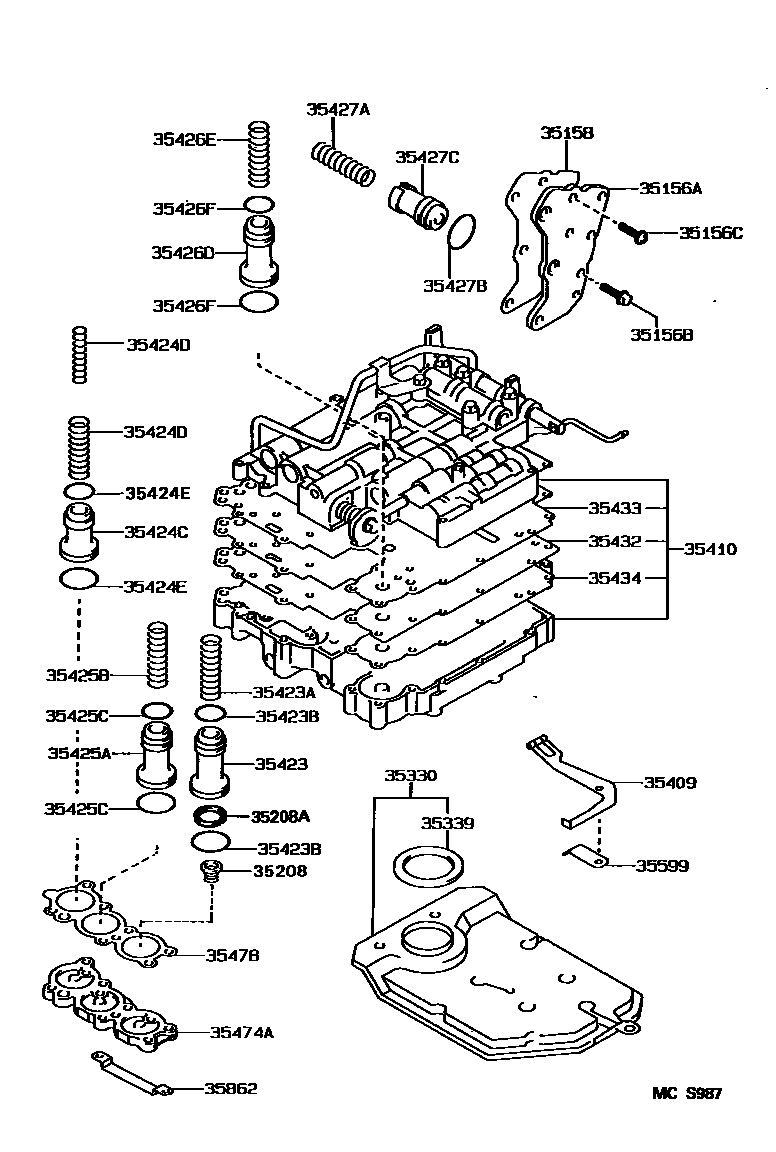

VALVE BODY & OIL STRAINER (ATM)

0001 1A240L 0002 1A240L 0003 1A240L 0004 1A240L 0005 1A240L

35156APLATE, TRANSMISSION CASE, NO.2

main35156-20010iAE11#..4FC200008-200109

35156BBOLT(FOR TRANSMISSION CASE NO.2 PLATE)

main90105-06049×6iAE11#..4FC199704-199910

35156CSCREW(FOR TRANSMISSION CASE NO.2 PLATE)

main90149-60041×3iAE11#..4FC..(ARL,GCC,GEN)199704-200008

35158GASKET, TRANSMISSION CASE, NO.2 PLATE

main35158-20020iAE11#..4FC..(ARL,GCC,GEN)199704-200008

35208SPRING SUB-ASSY, B-2 ACCUMULATOR

main35209-20010iAE11#..4FC..(ARL,GCC,GEN)199704-200008

35208ARING, HOLE SNAP (FOR B-2 ACCUMULATOR SPRING)

main90521-22004iAE11#..4FC..(ARL,GCC,GEN)199704-200008

35330STRAINER ASSY, VALVE BODY OIL

main35330-12020iAE11#..4FC..(ARL,GCC,GEN)199704-200008

35339GASKET, OIL STRAINER

main35339-12010iAE11#..4FC..(ARL,GCC,GEN)199704-200008

35409SPRING SUB-ASSY, MANUAL DETENT

main35409-20010iAE11#..4FC..(ARL,GCC,GEN)199704-200008

35410BODY ASSY, TRANSMISSION VALVE

main35410-12550iAE111..4FC199704-199910

main35410-12560iAE112..4FC..(ARL,GCC)199704-200008

35423PISTON, B-2 ACCUMULATOR

main35423-20030iAE11#..4FC199704-199910

35423ASPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON)

main90501-23102iAE112..4FC200008-200109

main90501-26082iAE111..4FC..(ARL,GEN)199704-200109

35423BRING, O (FOR B-2 ACCUMULATOR PISTON)

main90301-22185iAE11#..4FC200008-200109

UPPER

main90301-29187iAE11#..4FC200008-200109

LOWER

35424CPISTON, C-1 ACCUMULATOR

main35424-20030iAE11#..4FC199704-199910

35424DSPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON)

main90501-19024iAE11#..4FC..(ARL,GCC,GEN)199704-200008

INNER

main90501-25044iAE11#..4FC200008-200109

OUTER

35424ERING, O (FOR C-1 ACCUMULATOR PISTON)

main90301-23194iAE11#..4FC199704-199910

UPPER

main90301-29187iAE11#..4FC200008-200109

LOWER

35425APISTON, C-2 ACCUMULATOR

main35425-12020iAE11#..4FC..(ARL,GCC,GEN)199704-200008

35425BSPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)

main90501-23063iAE112..4FC; AE112..4FC..GCC199704-199805

main90501-25012iAE111..4FC; AE111..4FC..GEN199704-199805

35425CRING, O (FOR C-2 ACCUMULATOR PISTON)

main90301-23194iAE11#..4FC199704-199910

UPPER

main90301-29187iAE11#..4FC199704-199910

LOWER

35426DPISTON, C-3 ACCUMULATOR

main35426-20040iAE11#..4FC..(ARL,GCC,GEN)199704-200008

35426ESPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON)

main90501-24024iAE111..4FC..(ARL,GEN)199704-200109

main90504-29003iAE112..4FC200008-200109

35426FRING, O (FOR C-3 ACCUMULATOR PISTON)

main90301-20002iAE11#..4FC..(ARL,GCC,GEN)199704-200008

UPPER

main90301-29187iAE11#..4FC..(ARL,GCC,GEN)199704-200008

LOWER

35427ASPRING, COMPRESSION (FOR B-4 ACCUMULATOR PISTON)

main90501-26040iAE11#..4FC..(ARL,GCC,GEN)199704-200008

35427BRING, O (FOR B-4 ACCUMULATOR PISTON)

main90301-22185iAE11#..4FC200008-200109

35427CPISTON, B-4 ACCUMULATOR

main35427-12010iAE11#..4FC..(ARL,GCC,GEN)199704-200008

35432PLATE, VALVE BODY, NO.1

main35432-12180iAE11#..4FC200008-200109

35433GASKET, VALVE BODY, NO.1

main35433-20030iAE11#..4FC; AE11#..4FC..(GCC,GEN)199704-199806

35434GASKET, VALVE BODY, NO.2

main35434-20010iAE11#..4FC; AE11#..4FC..(GCC,GEN)199704-199806

35474ACOVER, ACCUMULATOR

main35474-12010iAE11#..4FC..(ARL,GCC,GEN)199704-200008

35478GASKET, ACCUMULATOR COVER

main35478-32010iAE11#..4FC..(ARL,GCC,GEN)199704-200008

35599COVER, MANUAL DETENT SPRING

main35599-12010iAE11#..4FC..(ARL,GCC,GEN)199704-200008

35862BRACKET, ACCUMULATOR APPLY TUBE

main35862-12020iAE11#..4FC199704-199910

32 parts on this diagram · 5 diagrams in section
