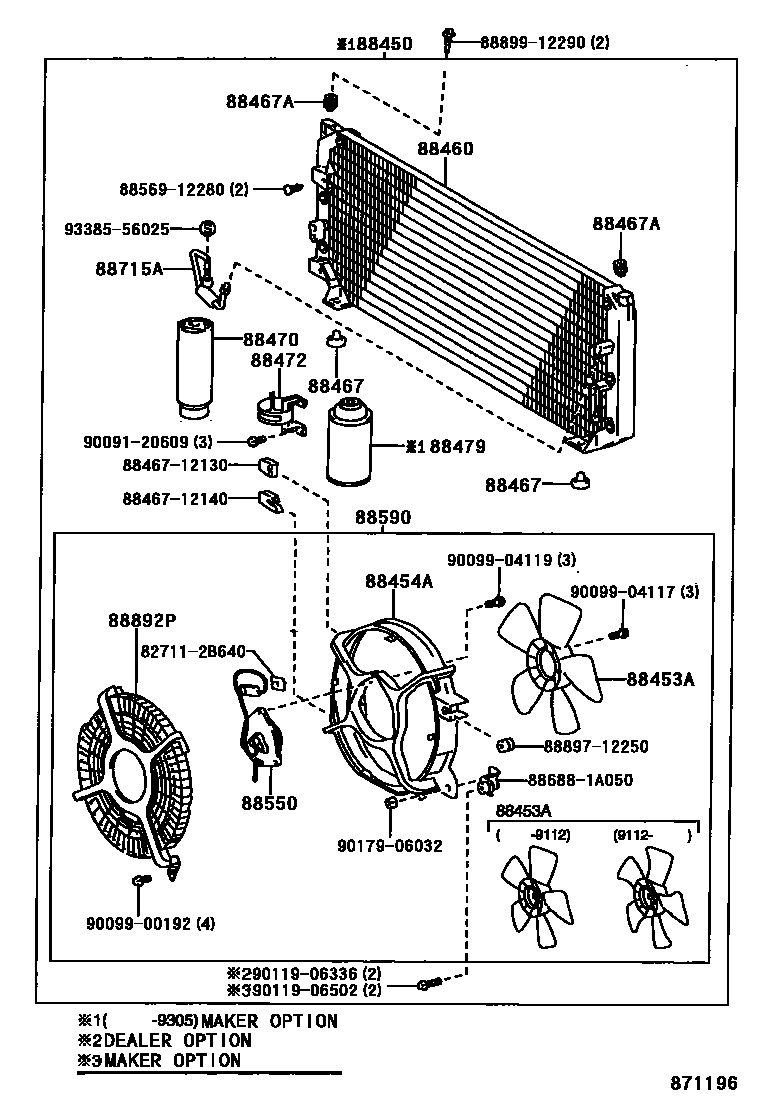

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1DEALER OPTION 0002 1MAKER OPTION 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1

88450CONDENSER ASSY, W/RECEIVER

main88450-12110iAE101,EE100199205-199305

88453AFAN, COOLING

main88453-10021iEE100..RHD199601-199704

main88453-10022iAE101,EE100199601-199710

MAKER OPTION

main88453-12080iAE102..ARL199505-199605

88454ASHROUD, FAN

main88454-12130iAE101,EE100199205-199312

main88454-12150iAE102..ARL;AE101,EE100199312-199710

88460CONDENSER ASSY, COOLER

main88460-12410iAE101,EE100..GEN199205-199305

main88460-12440iAE10#..RHD;EE100..GEN199305-199409

88467CUSHION, COOLER CONDENSER, NO.1

main88467-12100×2iAE10#,EE100199205-199409

88467ACUSHION, COOLER CONDENSER, NO.2

main88467-12110×2iAE10#,EE100199205-199409

88470RECEIVER & DRYER ASSY, COOLER

main88471-12020iAE101,EE100..GEN199205-199305

main88471-60010iAE10#..RHD;EE100..GEN; AE101..LHD;EE100..GCC199305-199505

MAKER OPTION

88472BRACKET, RECEIVER TANK, NO.1

main88473-12080iAE102..ARL;AE101,EE100199205-199710

88479FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)

main90986-02004×3iAE101..RHD;EE100..GEN199205-199301

250G

main90986-02006iAE101..RHD..GL199305-199704

300G

main90986-02007×3iAE101..LHD..GEN199305-199605

250G

main90986-02008×3iAE101..LHD..GEN;AE101,EE100..(GLI,XL,XLI)..GEN199505-199710

200G

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main88550-12130iAE101,EE100199205-199312

main88550-12150iAE10#,EE100199312-199505

main88550-12160iAE101,EE100199505-199710

88590BLOWER ASSY, W/SHROUD

main88590-12210iAE10#,EE100199205-199505

main88590-12270iAE101,EE100199505-199710

88715APIPE, COOLER REFRIGERANT DISCHARGE, A

main88715-12380iAE101..GLI,XLI199205-199305

main88715-12400iAE101,EE100..RHD..(GL,STD,XL)199205-199305

main88715-12420iAE101..GCC199207-199305

main88715-12430iAE101,EE100..LHD..(GL,STD,XL)199205-199305

main88715-12450iAE101,EE100..LHD..(GL,STD,XL)199305-199704

main88715-12460iAE101..GCC199305-199704

main88715-12470iAE101..GLI,XLI199305-199710

main88715-12490iAE101,EE100..RHD..(GL,STD,XL)199305-199710

88892PNET, FAN SHROUD

main88892-12200iAE101,EE100199205-199312

827112B640WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2B640

8846712130CUSHION, COOLER CONDENSER, NO.1

main88467-12130

8846712140CUSHION, COOLER CONDENSER, NO.1

main88467-12140

8856912280CLAMP (FOR COOLER RELAY)

main88569-12280

886881A050BRACKET, COOLER DIAPHRAGM

main88688-1A050

8889712250VALVE, COOLER MAGNET

main88897-12250

8889912290COVER, EVAPORATOR

main88899-12290

9009120609

main90091-20609

9009900192

main90099-00192

9009904117

main90099-04117

9009904119

main90099-04119

9011906336

main90119-06336

9011906502

main90119-06502

9017906032

main90179-06032

9338556025

main93385-56025

28 parts on this diagram · 11 diagrams in section
