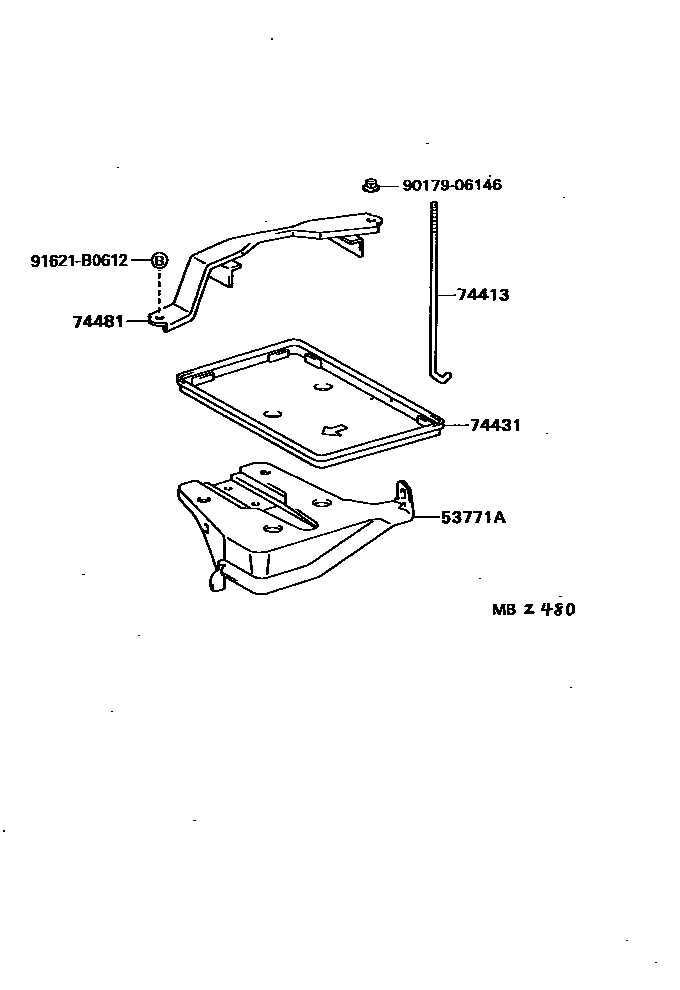

BATTERY CARRIER

53771ASUPPORT, BATTERY CARRIER

main53771-12090iAE10#,EE100199205-199505

main53771-12120iAE10#,EE100199505-199710

74413BOLT, BATTERY CLAMP

main74451-12060iAE10#,EE100199205-199504

main74451-12061iAE10#,EE100199504

74431TRAY, BATTERY

main74431-12020iAE10#,EE100..GCC,GEN199205

main74431-12030iAE101..4FC..GEN199505-199710

46B24L-MF

main74431-12030iAE101,EE100..GCC199205-199508

32C24L 40AH(N40L)

main74431-12060iAE101,EE100..RHD..(4FC,5F)..(GLI,XL,XLI)199205-199505

INDONESIA SPEC

main74431-12060iAE101,EE100..GEN199505

32B24L

main74431-12080iAE102..ARL199402-199605

74481CLAMP, BATTERY HOLD DOWN

main74404-12290iAE10#,EE100..GCC,GEN199205

main74404-12320iAE101,EE100199205-199508

32C24L 40AH(N40L)

main74404-12320iAE101..4FC..GEN199505-199710

46B24L-MF

main74404-12330iAE101,EE100..GEN199505

32B24L

main74404-12330iAE101,EE100..RHD..(4FC,5F)..(GLI,XL,XLI)199205-199505

INDONESIA SPEC

main74404-12350iAE102..ARL199402-199605

9017906146

main90179-06146

91621B0612

main91621-B0612

6 parts on this diagram · 1 diagram in section
