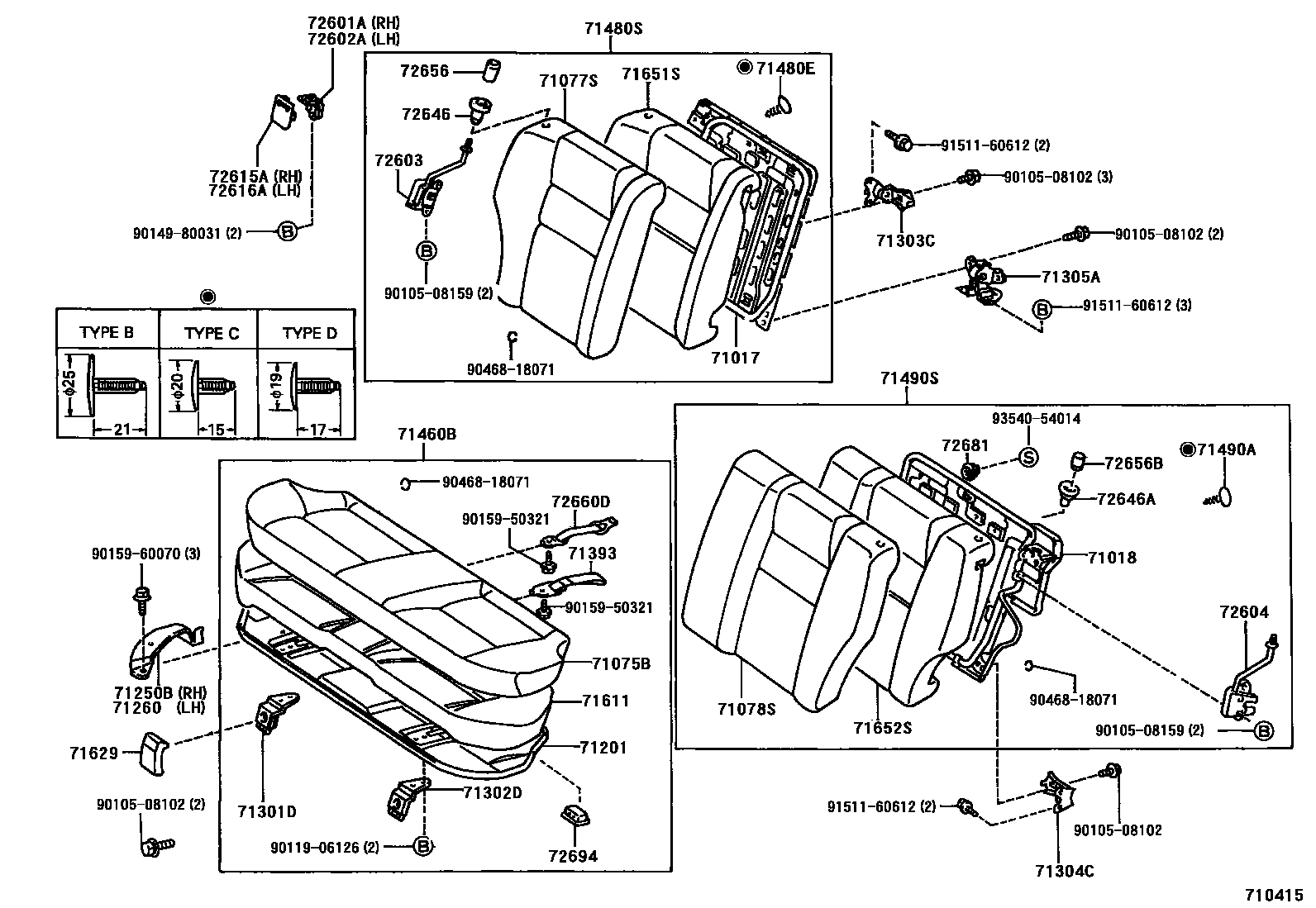

REAR SEAT & SEAT TRACK

0001 1 0002 1

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-13160iAE10#,EE100..GCC,GEN199205

main71017-13190iAE102..ARL199402-199605

71018FRAME SUB-ASSY, REAR SEATBACK, LH

main71018-13020iAE10#,EE100..GCC,GEN199205

main71018-13040iAE102..ARL199402-199605

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71065-1E060-B0iAE101..GCC199207-199704

SHADOW GRAY,TRIM1#

main71065-1E060-J0iAE101..GCC199207-199704

DARK BLUE,TRIM8#

main71065-1E070-B1iAE102..ARL199402-199605

SHADOW GRAY/BLACK,TRIM1#

main71065-1E100-B0iAE101,EE100..(STD,XL,XLI)..GEN199205-199710

SHADOW GRAY,TRIM1#

main71065-1E100-J1iAE101,EE100..(STD,XL,XLI)..GEN199205-199710

DARK BLUE,TRIM8#

main71065-1E210-B0iAE101..LB199205-199505

SHADOW GRAY,TRIM1#

main71065-1E210-J0iAE101..LB199205-199505

DARK BLUE,TRIM8#

main71075-13451-B1iAE10#..LB..GEN199505-199710

SHADOW GRAY,TRIM1#

main71075-13451-B2iAE10#..LB..GEN199505-199710

GRAY/BLUE,TRIM8#

main71075-13460-B0iAE101,EE100..(STD,XL,XLI)..GEN199205-199505

W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#

main71075-13460-B0iEE100..GCC199207-199505

SHADOW GRAY,TRIM1#

main71075-13460-J0iEE100..GCC199207-199505

DARK BLUE,TRIM8#

main71075-13460-J0iAE101,EE100..(STD,XL,XLI)..GEN199205-199505

W(FULL FABRIC SEAT),DARK BLUE,TRIM8#

main71075-13531-B2iAE101,EE100..(XL,XLI)..GEN199505-199710

NEW ZEALAND SPEC & W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#

main71075-13531-B2iEE100..GCC199508-199704

SHADOW GRAY,TRIM1#

main71075-13531-B2iAE101,EE100..HB..RHD199505-199710

W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#

main71075-13531-B3iAE101,EE100..HB..RHD199505-199710

W(FULL FABRIC SEAT),GRAY/BLUE,TRIM8#

main71075-13531-B3iEE100..GCC199508-199704

GRAY/BLUE,TRIM8#

main71075-13531-B3iAE101,EE100..HB..RHD199505-199710

NEW ZEALAND SPEC & W(FULL FABRIC SEAT),GRAY/BLUE,TRIM8#

71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)

main71077-1K810-B0iAE101..GCC199207-199305

SHADOW GRAY,TRIM1#

main71077-1K810-J0iAE101..GCC199207-199305

DARK BLUE,TRIM8#

main71077-1K811-B1iAE101..GCC199305-199405

SHADOW GRAY,TRIM1#

main71077-1K811-J1iAE101..GCC199305-199405

DARK BLUE,TRIM8#

main71077-1K812-B1iAE101..GCC199405-199704

SHADOW GRAY,TRIM1#

main71077-1K812-J1iAE101..GCC199405-199704

DARK BLUE,TRIM8#

main71077-1K830-B0iAE101,EE100..(STD,XL,XLI)..GEN199205-199305

SHADOW GRAY,TRIM1#

main71077-1K830-J1iAE101,EE100..(STD,XL,XLI)..GEN199205-199305

DARK BLUE,TRIM8#

main71077-1K831-B0iAE101,EE100..(STD,XL,XLI)..GEN199305-199405

SHADOW GRAY,TRIM1#

main71077-1K831-J2iAE101,EE100..(STD,XL,XLI)..GEN199305-199405

DARK BLUE,TRIM8#

main71077-1K832-B1iAE101,EE100..(STD,XL,XLI)..GEN199405-199710

SHADOW GRAY,TRIM1#

main71077-1K832-J3iAE101,EE100..(STD,XL,XLI)..GEN199405-199710

DARK BLUE,TRIM8#

main71077-1K890-B0iAE101..LB199205-199308

SHADOW GRAY,TRIM1#

main71077-1K890-J0iAE101..LB199205-199308

DARK BLUE,TRIM8#

main71077-1K891-B0iAE101..LB199308-199407

SHADOW GRAY,TRIM1#

main71077-1K891-J0iAE101..LB199308-199407

DARK BLUE,TRIM8#

main71077-1K892-B0iAE101..LB199407-199505

SHADOW GRAY,TRIM1#

main71077-1K892-J0iAE101..LB199407-199505

DARK BLUE,TRIM8#

main71077-1L030-B0iAE101,EE100..(STD,XL,XLI)..GEN199205-199305

W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#

main71077-1L030-B0iEE100..GCC199207-199305

SHADOW GRAY,TRIM1#

main71077-1L030-J0iAE101,EE100..(STD,XL,XLI)..GEN199205-199305

W(FULL FABRIC SEAT),DARK BLUE,TRIM8#

main71077-1L030-J0iEE100..GCC199207-199305

DARK BLUE,TRIM8#

main71077-1L031-B1iEE100..GCC199305-199405

SHADOW GRAY,TRIM1#

main71077-1L031-B1iEE100..GCC199305-199405

W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#

main71077-1L031-J1iEE100..GCC199305-199405

W(FULL FABRIC SEAT),DARK BLUE,TRIM8#

main71077-1L031-J1iAE101,EE100..(STD,XL,XLI)..GEN199305-199405

DARK BLUE,TRIM8#

main71077-1L032-B1iAE101,EE100..(STD,XL,XLI)..GEN199405-199505

W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#

main71077-1L032-B1iEE100..GCC199405-199508

SHADOW GRAY,TRIM1#

main71077-1L032-J1iEE100..GCC199405-199508

DARK BLUE,TRIM8#

main71077-1L032-J1iAE101,EE100..(STD,XL,XLI)..GEN199405-199505

W(FULL FABRIC SEAT),DARK BLUE,TRIM8#

main71077-1L043-B2iAE10#..LB..GEN199505-199710

SHADOW GRAY,TRIM1#

main71077-1L043-B3iAE10#..LB..GEN199505-199710

GRAY/BLUE,TRIM8#

main71077-1L141-B1iAE102199402-199405

SHADOW GRAY/BLACK,TRIM1#

main71077-1L142-B1iAE102..ARL199405-199605

SHADOW GRAY/BLACK,TRIM1#

main71077-1L232-B2iEE100..GCC199508-199704

SHADOW GRAY,TRIM1#

main71077-1L232-B2iAE101,EE100..HB..RHD199505-199710

NEW ZEALAND SPEC & W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#

main71077-1L232-B2iAE101,EE100..HB..RHD199505-199710

W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#

main71077-1L232-B3iAE101,EE100..(XL,XLI)..GEN199505-199710

W(FULL FABRIC SEAT),GRAY/BLUE,TRIM8#

main71077-1L232-B3iAE101,EE100..HB..RHD199505-199710

NEW ZEALAND SPEC & W(FULL FABRIC SEAT),GRAY/BLUE,TRIM8#

main71077-1L232-B3iEE100..GCC199508-199704

GRAY/BLUE,TRIM8#

71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71078-1E020-B0iAE101..GCC199207-199305

SHADOW GRAY,TRIM1#

main71078-1E020-J0iAE101..GCC199207-199305

DARK BLUE,TRIM8#

main71078-1E021-B2iAE101..GCC199305-199405

SHADOW GRAY,TRIM1#

main71078-1E021-J1iAE101..GCC199305-199405

DARK BLUE,TRIM8#

main71078-1E022-B2iAE101..GCC199405-199704

SHADOW GRAY,TRIM1#

main71078-1E022-J1iAE101..GCC199405-199704

DARK BLUE,TRIM8#

main71078-1E040-B0iAE101,EE100..(STD,XL,XLI)..GEN199205-199305

SHADOW GRAY,TRIM1#

main71078-1E040-J1iAE101,EE100..(STD,XL,XLI)..GEN199205-199305

DARK BLUE,TRIM8#

main71078-1E041-B0iAE101,EE100..(STD,XL,XLI)..GEN199305-199405

SHADOW GRAY,TRIM1#

main71078-1E041-J2iAE101,EE100..(STD,XL,XLI)..GEN199305-199405

DARK BLUE,TRIM8#

main71078-1E042-B1iAE101,EE100..(STD,XL,XLI)..GEN199405-199710

SHADOW GRAY,TRIM1#

main71078-1E042-J3iAE101,EE100..(STD,XL,XLI)..GEN199405-199710

DARK BLUE,TRIM8#

main71078-1E120-B0iAE101..LB199205-199308

SHADOW GRAY,TRIM1#

main71078-1E120-J0iAE101..LB199205-199308

DARK BLUE,TRIM8#

main71078-1E121-B0iAE101..LB199308-199407

SHADOW GRAY,TRIM1#

main71078-1E121-J0iAE101..LB199308-199407

DARK BLUE,TRIM8#

main71078-1E122-B0iAE101..LB199407-199505

SHADOW GRAY,TRIM1#

main71078-1E122-J0iAE101..LB199407-199505

DARK BLUE,TRIM8#

main71078-1E150-B0iEE100..GCC199207-199305

SHADOW GRAY,TRIM1#

main71078-1E150-B0iAE101,EE100..(STD,XL,XLI)..GEN199205-199305

W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#

main71078-1E150-J0iAE101,EE100..(STD,XL,XLI)..GEN199205-199305

W(FULL FABRIC SEAT),DARK BLUE,TRIM8#

main71078-1E150-J0iEE100..GCC199207-199305

DARK BLUE,TRIM8#

main71078-1E151-B1iAE101,EE100..(STD,XL,XLI)..GEN199305-199405

SHADOW GRAY,TRIM1#

main71078-1E151-B1iAE101,EE100..(STD,XL,XLI)..GEN199305-199405

W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#

main71078-1E151-J1iEE100..GCC199305-199405

DARK BLUE,TRIM8#

main71078-1E151-J1iAE101,EE100..(STD,XL,XLI)..GEN199305-199405

W(FULL FABRIC SEAT),DARK BLUE,TRIM8#

main71078-1E152-B1iAE101,EE100..(STD,XL,XLI)..GEN199405-199505

W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#

main71078-1E152-B1iEE100..GCC199405-199508

SHADOW GRAY,TRIM1#

main71078-1E152-J1iEE100..GCC199405-199508

DARK BLUE,TRIM8#

main71078-1E152-J1iAE101,EE100..(STD,XL,XLI)..GEN199405-199505

W(FULL FABRIC SEAT),DARK BLUE,TRIM8#

main71078-1E163-B2iAE10#..LB..GEN199505-199710

SHADOW GRAY,TRIM1#

main71078-1E163-B3iAE10#..LB..GEN199505-199710

GRAY/BLUE,TRIM8#

main71078-1E251-B1iAE102199402-199405

SHADOW GRAY/BLACK,TRIM1#

main71078-1E252-B1iAE102..ARL199405-199605

SHADOW GRAY/BLACK,TRIM1#

main71078-1E312-B2iAE101,EE100..(XL,XLI)..GEN199505-199710

NEW ZEALAND SPEC & W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#

main71078-1E312-B2iEE100..GCC199508-199704

SHADOW GRAY,TRIM1#

main71078-1E312-B2iAE101,EE100..HB..RHD199505-199710

W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#

main71078-1E312-B3iEE100..GCC199508-199704

GRAY/BLUE,TRIM8#

main71078-1E312-B3iAE101,EE100..HB..RHD199505-199710

NEW ZEALAND SPEC & W(FULL FABRIC SEAT),GRAY/BLUE,TRIM8#

main71078-1E312-B3iAE101,EE100..HB..RHD199505-199710

W(FULL FABRIC SEAT),GRAY/BLUE,TRIM8#

71201PANEL SUB-ASSY, REAR SEAT CUSHION

main71201-13150iAE10#,EE100199205

71250BBRACKET ASSY, SEAT, OUTER RH

main71250-13010iAE10#,EE100199205-199710

main71250-13020iAE10#,EE100..LB199508

71260BRACKET ASSY, SEAT, OUTER LH

main71260-13010iAE10#,EE100199205-199710

main71260-13020iAE10#,EE100..LB199508

71301DHINGE SUB-ASSY, REAR SEAT, RH

main71301-13070iAE10#,EE100199205

71302DHINGE SUB-ASSY, REAR SEAT, LH

main71302-13030iAE10#,EE100199205

71303CHINGE SUB-ASSY, REAR SEATBACK, RH

main71303-12110iAE10#,EE100199205

71304CHINGE SUB-ASSY, REAR SEATBACK, LH

main71303-12110iAE10#,EE100199205

71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER

main71305-12110iAE10#,EE100199205

71393BAND, REAR SEAT CUSHION

main71393-13080-B0iAE101,EE100..GL,GLI,STD,XL199205-199710

SHADOW GRAY,TRIM1#,8#

main71393-13080-B0iAE102..ARL199402-199605

SHADOW GRAY,TRIM1#

71460BCUSHION ASSY, REAR SEAT (FOR BENCH TYPE)

main71460-13651-B1iAE10#..LB..GEN199505-199710

***,GRAY/BLUE,TRIM8#

main71460-13651-B2iAE10#..LB..GEN199505-199710

***,SHADOW GRAY,TRIM1#

main71460-13670-B0iEE100199205-199505

***,W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#

main71460-13670-B0iEE100..GCC199207-199508

***,SHADOW GRAY,TRIM1#

main71460-13670-J0iAE101,EE100..(STD,XL,XLI)..GEN199205-199505

***,W(FULL FABRIC SEAT),DARK BLUE,TRIM8#

main71460-13670-J0iEE100..GCC199207-199508

***,DARK BLUE,TRIM8#

main71460-13751-B2iAE101,EE100..(XL,XLI)..GEN199505-199710

***,NEW ZEALAND SPEC & W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#

main71460-13751-B2iEE100..GCC199508-199704

***,SHADOW GRAY,TRIM1#

main71460-13751-B2iAE101,EE100..HB..RHD199505-199710

***,W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#

main71460-13751-B3iAE101,EE100..HB..RHD199505-199710

***,NEW ZEALAND SPEC & W(FULL FABRIC SEAT),GRAY/BLUE,TRIM8#

main71460-13751-B3iEE100..GCC199508-199704

***,GRAY/BLUE,TRIM8#

main71460-13751-B3iAE101,EE100..(XL,XLI)..GEN199505-199710

***,W(FULL FABRIC SEAT),GRAY/BLUE,TRIM8#

main71560-1E140-B1iAE102..ARL199402-199605

***,SHADOW GRAY/BLACK,TRIM1#

main71560-1E150-B0iAE101..GCC199207-199704

***,SHADOW GRAY,TRIM1#

main71560-1E150-J0iAE101..GCC199207-199704

***,DARK BLUE,TRIM8#

main71560-1E200-B0iAE101..LB199205-199505

***,SHADOW GRAY,TRIM1#

main71560-1E200-J0iAE101..LB199205-199505

***,DARK BLUE,TRIM8#

main71560-1E210-B0iAE101,EE100..(STD,XL,XLI)..GEN199205-199710

***,SHADOW GRAY,TRIM1#

main71560-1E210-J1iAE101,EE100..(STD,XL,XLI)..GEN199205-199710

***,DARK BLUE,TRIM8#

71480ECLIP, REAR SEATBACK, RH

main90467-07042-13iAE102;AE101,EE100..SI,STD,XL,XLI199405-199411

SHADOW GRAY,TRIM1#

main90467-07042-B1iAE10#,EE100199411-199710

SHADOW GRAY,TRIM1#

main90467-07042-J0iAE101,EE100..SI,STD,XL,XLI199405-199710

DARK BLUE,TRIM8#

main90467-07049-01iAE101,EE100199205-199208

BLACK,TRIM1#,8#

main90467-07049-C0iAE101..LB199208-199407

BLACK,TRIM1#,8#

main90467-07049-C0iAE102199402-199405

BLACK,TRIM1#

71480SBACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE)

main71480-1K870-B0iAE101..GCC199207-199405

***,SHADOW GRAY,TRIM1#

main71480-1K870-J0iAE101..GCC199207-199405

***,DARK BLUE,TRIM8#

main71480-1K871-B0iAE101..GCC199405-199704

***,SHADOW GRAY,TRIM1#

main71480-1K871-J0iAE101..GCC199405-199704

***,DARK BLUE,TRIM8#

main71480-1L030-B0iAE101..LB199205-199307

***,SHADOW GRAY,TRIM1#

main71480-1L030-J0iAE101..LB199205-199307

***,DARK BLUE,TRIM8#

main71480-1L031-B0iAE101..LB199307-199407

***,SHADOW GRAY,TRIM1#

main71480-1L032-B0iAE101..LB199407-199505

***,SHADOW GRAY,TRIM1#

main71480-1L032-J0iAE101..LB199407-199505

***,DARK BLUE,TRIM8#

main71480-1L070-B0iAE101,EE100..(STD,XL,XLI)..GEN199205-199405

***,SHADOW GRAY,TRIM1#

main71480-1L070-J1iAE101,EE100..(STD,XL,XLI)..GEN199205-199405

***,DARK BLUE,TRIM8#

main71480-1L071-B0iAE101,EE100..(STD,XL,XLI)..GEN199405-199710

***,SHADOW GRAY,TRIM1#

main71480-1L071-J1iAE101,EE100..(STD,XL,XLI)..GEN199405-199710

***,DARK BLUE,TRIM8#

main71480-1L090-B0iAE101,EE100..(STD,XL,XLI)..GEN199205-199405

***,W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#

main71480-1L090-B0iEE100..GCC199207-199405

***,SHADOW GRAY,TRIM1#

main71480-1L090-J0iAE101,EE100..(STD,XL,XLI)..GEN199205-199405

***,W(FULL FABRIC SEAT),DARK BLUE,TRIM8#

main71480-1L090-J0iEE100..GCC199207-199405

***,DARK BLUE,TRIM8#

main71480-1L091-B0iEE100..GCC199405-199508

***,SHADOW GRAY,TRIM1#

main71480-1L091-B0iAE101,EE100..(STD,XL,XLI)..GEN199405-199505

***,W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#

main71480-1L091-J0iEE100..GCC199405-199508

***,DARK BLUE,TRIM8#

main71480-1L091-J0iAE101,EE100..(STD,XL,XLI)..GEN199405-199505

***,W(FULL FABRIC SEAT),DARK BLUE,TRIM8#

main71480-1L102-B1iAE10#..LB..GEN199505-199710

***,SHADOW GRAY,TRIM1#

main71480-1L102-B2iAE10#..LB..GEN199505-199710

***,GRAY/BLUE,TRIM8#

main71480-1L210-B0iAE102199402-199409

***,SHADOW GRAY/BLACK,TRIM1#

main71480-1L211-B0iAE102..ARL199409-199605

***,SHADOW GRAY/BLACK,TRIM1#

main71480-1L292-B4iAE101,EE100..(XL,XLI)..GEN199505-199710

***,NEW ZEALAND SPEC & W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#

main71480-1L292-B4iEE100..GCC199508-199704

***,SHADOW GRAY,TRIM1#

main71480-1L292-B4iAE101,EE100..HB..RHD199505-199710

***,W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#

main71480-1L292-B5iAE101,EE100..(XL,XLI)..GEN199505-199710

***,W(FULL FABRIC SEAT),GRAY/BLUE,TRIM8#

main71480-1L292-B5iEE100..GCC199508-199704

***,GRAY/BLUE,TRIM8#

main71480-1L292-B5iAE101,EE100..HB..RHD199505-199710

***,NEW ZEALAND SPEC & W(FULL FABRIC SEAT),GRAY/BLUE,TRIM8#

71490ACLIP, REAR SEATBACK, LH

main90467-07042-13iAE10#,EE100199405-199411

SHADOW GRAY,TRIM1#

main90467-07042-B1iAE10#,EE100199411-199710

SHADOW GRAY,TRIM1#

main90467-07042-J0iAE101,EE100..SI,STD,XL,XLI199405-199710

DARK BLUE,TRIM8#

main90467-07049-01iAE101,EE100199205-199208

BLACK,TRIM1#,8#

main90467-07049-C0iAE102199402-199405

BLACK,TRIM1#

main90467-07049-C0iAE101,EE100199208-199407

BLACK,TRIM1#,8#

71490SBACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)

main71490-1E120-B0iAE101..GCC199207-199405

***,SHADOW GRAY,TRIM1#

main71490-1E120-J0iAE101..GCC199207-199405

***,DARK BLUE,TRIM8#

main71490-1E121-B0iAE101..GCC199405-199704

***,SHADOW GRAY,TRIM1#

main71490-1E121-J0iAE101..GCC199405-199704

***,DARK BLUE,TRIM8#

main71490-1E170-B0iAE101..LB199205-199307

***,SHADOW GRAY,TRIM1#

main71490-1E170-J0iAE101..LB199205-199307

***,DARK BLUE,TRIM8#

main71490-1E171-B0iAE101..LB199307-199407

***,SHADOW GRAY,TRIM1#

main71490-1E171-J0iAE101..LB199307-199407

***,DARK BLUE,TRIM8#

main71490-1E172-B0iAE101..LB199407-199505

***,SHADOW GRAY,TRIM1#

main71490-1E172-J0iAE101..LB199407-199505

***,DARK BLUE,TRIM8#

main71490-1E210-B0iAE101,EE100..(STD,XL,XLI)..GEN199205-199405

***,SHADOW GRAY,TRIM1#

main71490-1E210-J1iAE101,EE100..(STD,XL,XLI)..GEN199205-199405

***,DARK BLUE,TRIM8#

main71490-1E211-B0iAE101,EE100..(STD,XL,XLI)..GEN199405-199710

***,SHADOW GRAY,TRIM1#

main71490-1E211-J1iAE101,EE100..(STD,XL,XLI)..GEN199405-199710

***,DARK BLUE,TRIM8#

main71490-1E220-B0iAE101,EE100..HB..5D..GEN199206-199405

***,W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#

main71490-1E220-B0iEE100..GCC199207-199405

***,SHADOW GRAY,TRIM1#

main71490-1E220-B0iEE100..LB;EE100..STD199205-199405

***,W(FABRIC SEAT),SHADOW GRAY,TRIM1#

main71490-1E220-J0iAE101,EE100..(STD,XL,XLI)..GEN199205-199405

***,W(FULL FABRIC SEAT),DARK BLUE,TRIM8#

main71490-1E220-J0iEE100..GCC199207-199405

***,DARK BLUE,TRIM8#

main71490-1E221-B0iEE100..GCC199405-199508

***,SHADOW GRAY,TRIM1#

main71490-1E221-B0iAE101,EE100..(STD,XL,XLI)..GEN199405-199505

***,W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#

main71490-1E221-J0iEE100..GCC199405-199508

***,DARK BLUE,TRIM8#

main71490-1E221-J0iAE101,EE100..(STD,XL,XLI)..GEN199405-199505

***,W(FULL FABRIC SEAT),DARK BLUE,TRIM8#

main71490-1E232-B1iAE10#..LB..GEN199505-199710

***,SHADOW GRAY,TRIM1#

main71490-1E232-B2iAE10#..LB..GEN199505-199710

***,GRAY/BLUE,TRIM8#

main71490-1E340-B0iAE102199402-199409

***,SHADOW GRAY/BLACK,TRIM1#

main71490-1E341-B0iAE102..ARL199409-199605

***,SHADOW GRAY/BLACK,TRIM1#

main71490-1E392-B4iAE101,EE100..HB..RHD199505-199710

***,W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#

main71490-1E392-B4iAE101,EE100..(XL,XLI)..GEN199505-199710

***,NEW ZEALAND SPEC & W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#

main71490-1E392-B4iEE100..GCC199508-199704

***,SHADOW GRAY,TRIM1#

main71490-1E392-B5iEE100..GCC199508-199704

***,GRAY/BLUE,TRIM8#

main71490-1E392-B5iAE101,EE100..HB..RHD199505-199710

***,NEW ZEALAND SPEC & W(FULL FABRIC SEAT),GRAY/BLUE,TRIM8#

main71490-1E392-B5iAE101,EE100..HB..RHD199505-199710

***,W(FULL FABRIC SEAT),GRAY/BLUE,TRIM8#

71611PAD, REAR SEAT CUSHION

main71611-13150iAE101,EE100..SI,STD,XL,XLI199205-199710

main71611-13180iAE10#..LB199205

71629COVER, REAR SEAT CUSHION HINGE

main71629-13010-B0iAE101,EE100199205-199305

SHADOW GRAY,TRIM1#

main71629-13010-J0iAE101,EE100199205-199305

DARK BLUE,TRIM8#

71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)

main71651-13161iAE10#,EE100..GCC,GEN199205

main71651-13210iAE102..ARL199402-199605

71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71652-13081iAE10#,EE100..GCC,GEN199205

main71652-13090iAE102..ARL199402-199605

72601ASTRIKER SUB-ASSY, REAR SEATBACK LOOK, RH

main72601-13080iAE10#,EE100199205

72602ASTRIKER SUB-ASSY, REAR SEATBACK LOCK, LH

main72601-13080iAE10#,EE100199205

72603LOCK SUB-ASSY, REAR SEATBACK, RH

main72630-13120iAE10#,EE100199205

72604LOCK SUB-ASSY, REAR SEATBACK, LH

main72640-13120iAE10#,EE100199205

72615ACOVER, REAR SEATBACK LOCK STRIKER, RH

main72615-12060-B0iAE101,EE100..HB199205-199710

SHADOW GRAY,TRIM1#

main72615-12060-J0iAE101,EE100..HB199205-199710

DARK BLUE,TRIM8#

72616ACOVER, REAR SEATBACK LOCK STRIKER, LH

main72616-12040-B0iAE101,EE100..HB199205-199710

SHADOW GRAY,TRIM1#

main72616-12040-J0iAE101,EE100..HB199205-199710

DARK BLUE,TRIM8#

72646GROMMET, REAR SEATBACK STOP BUTTON

main72646-13010-B0iAE10#,EE100199205-199710

SHADOW GRAY,TRIM1#

main72646-13010-J0iAE101,EE100..GL,GLI,STD,XL199205-199710

DARK BLUE,TRIM8#

72646AGROMMET, REAR SEATBACK STOP BUTTON

main72646-13010-B0iAE10#,EE100199205-199710

SHADOW GRAY,TRIM1#

main72646-13010-J0iAE10#,EE100..GCC,GEN199205-199710

DARK BLUE,TRIM8#

72656BUTTON, REAR SEATBACK STOP RELEASE

main72661-13030-B0iAE101,EE100..GL,GLI,STD,XL199205-199710

SHADOW GRAY,TRIM1#

main72661-13030-J0iAE101,EE100..GL,GLI,STD,XL199205-199710

DARK BLUE,TRIM8#

72656BBUTTON, REAR SEATBACK STOP RELEASE

main72661-13030-B0iAE101,EE100..GL,GLI,STD,XL199205-199710

SHADOW GRAY,TRIM1#

main72661-13030-J0iAE10#,EE100..GCC,GEN199205-199710

DARK BLUE,TRIM8#

72660DSUPPORT ASSY, REAR SEAT CUSHION

main72660-13010iAE10#,EE100199205

72681HOOK, REAR SEATBACK LOCK, LOWER

main72681-16010-B2iAE10#,EE100199205-199710

SHADOW GRAY,TRIM1#

main72681-16010-W3iAE101,EE100..GL,GLI,STD,XL199205-199710

DARK BLUE,TRIM8#

72694COVER, REAR SEAT CUSHION LOCK

main72694-13010iAE10#,EE100199205

9010508102

main90105-08102

9010508159

main90105-08159

9011906126

main90119-06126

9014980031

main90149-80031

9015950321

main90159-50321

9015960070

main90159-60070

9046818071

main90468-18071

9151160612

main91511-60612

9354054014

main93540-54014

45 parts on this diagram · 2 diagrams in section
