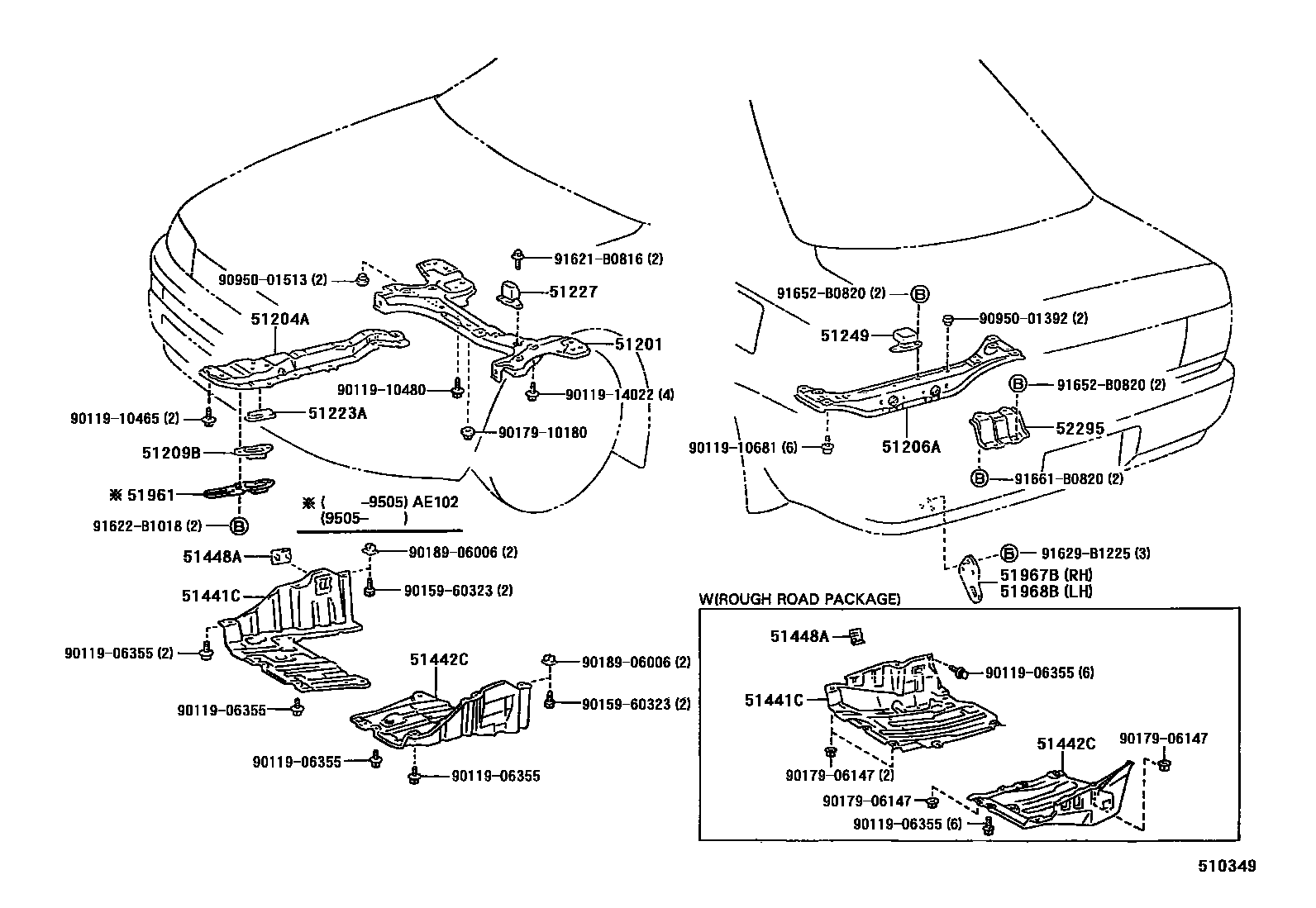

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-12320iAE101,EE100199205-199505

main51201-12360iAE101,EE100199205-199505

ROUGH ROAD PACKAGE

main51201-12370iAE101,EE100..GCC199505-199508

main51201-12380iAE10#,EE100..ARL,GEN; AE101,EE100..GCC199505-199508

ROUGH ROAD PACKAGE

51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER

main51204-12080iAE10#,EE100199205

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-12040iAE101,EE100199205-199305

main51206-12060iAE10#,EE100199305

51209BPROTECTOR SUB-ASSY, CENTER MEMBER, FRONT

main51209-12010iAE101,EE100199205-199505

51223ACOVER, ENGINE MOUNTING HOLE

main51223-12010iAE10#,EE100199205-199406

51227WEIGHT, FRONT SUSPENSION MEMBER DAMPER

main51227-12040iAE101,EE100199205-199305

51249DAMPER, REAR SUSPENSION MEMBER

main51249-12060iAE101,EE100..LB199205-199305

51441CCOVER, ENGINE UNDER, RH

main51408-12050iAE101,EE100..GL,GLI,STD,XL199205-199206

ROUGH ROAD PACKAGE

main51408-12051iAE101,EE100..GEN199206-199501

ROUGH ROAD PACKAGE

main51408-12060iAE101,EE100..GEN199501

ROUGH ROAD PACKAGE

main51441-12140iAE10#,EE100199205

51442CCOVER, ENGINE UNDER, LH

main51409-12030iAE101,EE100..GEN199205-199501

ROUGH ROAD PACKAGE

main51409-12040iAE101,EE100..GEN199501

ROUGH ROAD PACKAGE

main51442-12080iAE10#,EE100..MTM199205

main51442-12090iAE10#,EE100..ATM199205-199710

51448ACOVER, ENGINE SIDE UNDER, RH

main51448-20010iAE10#,EE100199205-199501

51961HOOK, NO.1

main51960-12040iAE102199402-199505

main51960-12060iAE10#,EE100..ARL,GEN199505-199508

51967BHOOK, TRANSPORT, REAR RH

main51967-12220iAE10#,EE100..LB199205

51968BHOOK, TRANSPORT, REAR LH

main51968-12110iAE10#,EE100..LB199205-199505

main51968-12140iAE101,EE100..HB199205-199505

main51968-12160iAE101,EE100..HB199505

52295BRACE, REAR SUSPENSION MEMBER, RH

main52295-12010iAE10#,EE100199305

9011906355

main90119-06355

9011910465

main90119-10465

9011910480

main90119-10480

9011910681

main90119-10681

9011914022

main90119-14022

9015960323

main90159-60323

9017906147

main90179-06147

9017910180

main90179-10180

9018906006

main90189-06006

9095001392

main90950-01392

9095001513

main90950-01513

91621B0816

main91621-B0816

91622B1018

main91622-B1018

91629B1225

main91629-B1225

91652B0820

main91652-B0820

91661B0820

main91661-B0820

30 parts on this diagram · 1 diagram in section
