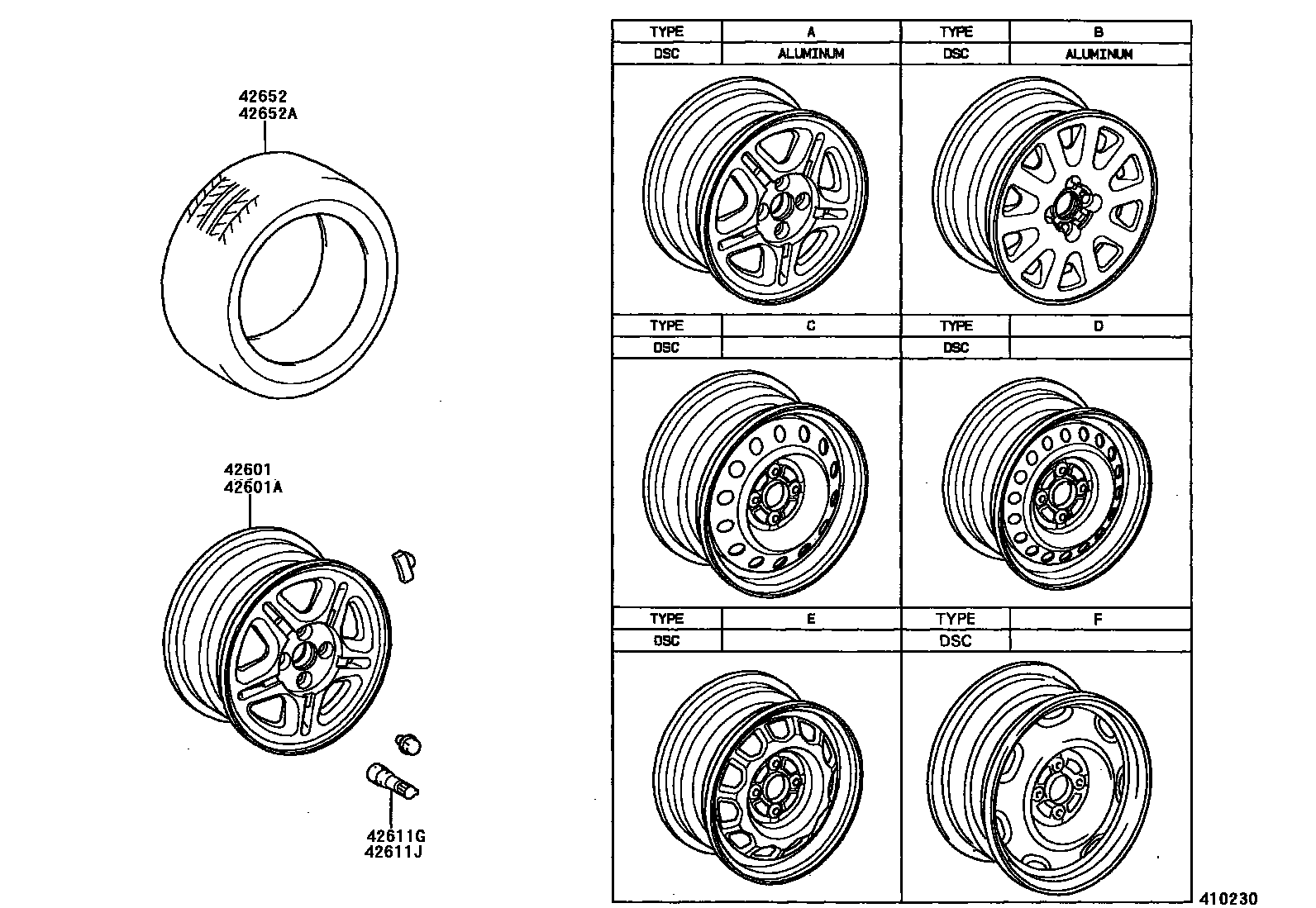

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

42601WHEEL, DISC

main42611-1A120iAE102..GEN199505-199710

14X5.5JJ,TYPE A

main42611-1A120iAE101..GLI199205-199710

14X5.5JJ,W(ALUMINUM WHEEL),TYPE A

main42611-1A130iAE101..GL199205-199505

14X5.5JJ,W(ALUMINUM WHEEL)

main42611-1A130iAE101..LB199607

14X5.5JJ

main42611-1A140-01iAE102..ARL;AE101,EE100..RHD..(4FC,5F)..(GLI,STD,XL,XLI)199205-199710

14X5.5J,TYPE C,BLACK

main42611-1A150-01iAE101,EE100..5D199205

13X5J,TYPE D,BLACK

main42611-1A160-03iAE101,EE100..SI,STD,XL,XLI199205-199710

13X5J,TYPE E,SILVER M.

main42611-1A180iAE102..ARL199402-199605

14X5.5JJ,TYPE G

main42611-1A250-03iAE101..XLI199206-199710

14X5.5J,OFFSET 45,TYPE F,SILVER M

main42611-1A300iAE101..LB199205-199607

14X5.5JJ,W(ALUMINUM WHEEL)

42601AWHEEL, DISC (FOR SPARE)

main42611-1A120iAE102..GEN199505-199710

14X5.5JJ,TYPE A

main42611-1A120iAE101..GLI199205-199710

14X5.5JJ,W(ALUMINUM WHEEL),TYPE A

main42611-1A130iAE101..LB199607

14X5.5JJ

main42611-1A130iAE101..GL199205-199505

14X5.5JJ,W(ALUMINUM WHEEL)

main42611-1A140-01iAE102..ARL;AE101,EE100..RHD..(4FC,5F)..(GLI,STD,XL,XLI)199205-199710

14X5.5J,TYPE C,BLACK

main42611-1A150-01iAE101,EE100..5D199205

13X5J,TYPE D,BLACK

main42611-1A160-03iAE101,EE100..SI,STD,XL,XLI199205-199710

13X5J,TYPE E,SILVER M.

main42611-1A180iAE102..ARL199402-199605

14X5.5JJ,TYPE G

main42611-1A250-03iAE101..XLI199206-199710

14X5.5J,OFFSET 45,TYPE F,SILVER M

main42611-1A300iAE101..LB199205-199607

14X5.5JJ,W(ALUMINUM WHEEL)

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009iAE10#,EE100199205

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iAE10#,EE100199205

42652TIRE

main42605-10060iEE100..GEN199205-199405

155SR13,W(TUBE)

main42605-20100iAE101,EE100..(GL,STD,XL)..GEN199205-199405

165SR13,W(TUBE)

main42652-12220iEE100..GEN199205-199505

155SR13

main42652-12680iEE100199207-199710

155SR13

main42652-12880iAE101,EE100..(GL,XL)..GEN199505

175/70R13 82S

main42652-12890iAE101,EE100..RHD..(4FC,5F)..(GLI,STD,XL,XLI)199205-199710

175/65R14 82H

main42652-14140iEE100..XL..GEN199207-199710

165SR13,*(B),*(D),*(D),*(Y)

main42652-14140iEE100199205-199207

165SR13

main42652-14140iEE100..GEN199207-199710

165SR13,*(B),*(D),*(T),*(Y)

main42652-14290iEE100..GEN199207-199710

165SR13,*(Y)

main42652-16230iAE101,EE100..(GL,XL)..GEN199205-199505

175/70R13 82S

main42652-1A140iEE100..GCC199207-199704

175/70SR13

main42652-1A150iAE102199402-199710

185/60R14 82H

main42652-1A230iAE101..GLI,SI,XLI199207-199710

175/70HR13,*(Y)

main42652-1A260iAE101..GL199505

175/65R14 82S

main42652-20260iAE101..GLI,SI,XLI199205-199710

175/70HR13,*(B),*(D),*(Y)

main42652-20260iAE101..XLI199206-199207

175/70HR13

42652ATIRE (FOR SPARE)

main42605-10060iEE100..GEN199205-199405

155SR13,W(TUBE)

main42605-20100iAE101,EE100..(GL,STD,XL)..GEN199205-199405

165SR13,W(TUBE)

main42652-12220iEE100..GEN199205-199505

155SR13

main42652-12680iEE100199207-199710

155SR13

main42652-12880iAE101,EE100..(GL,XL)..GEN199505

175/70R13 82S

main42652-12890iAE101,EE100..RHD..(4FC,5F)..(GLI,STD,XL,XLI)199205-199710

175/65R14 82H

main42652-14140iEE100199205-199207

165SR13

main42652-14140iEE100..GEN199207-199710

165SR13,*(B),*(D),*(T),*(Y)

main42652-14290iEE100..GEN199207-199710

165SR13,*(Y)

main42652-16230iAE101,EE100..(GL,XL)..GEN199205-199505

175/70R13 82S

main42652-1A140iEE100..GCC199207-199704

175/70SR13

main42652-1A150iAE102199402-199710

185/60R14 82H

main42652-1A230iAE101..GLI,SI,XLI199207-199710

175/70HR13,*(Y)

main42652-1A260iAE101..GL199505

175/65R14 82S

main42652-20260iAE101..GLI,SI,XLI199205-199710

175/70HR13,*(B),*(D),*(Y)

main42652-20260iAE101..HB199207-199505

175/70HR13,*(B),*(D) *(Y)

6 parts on this diagram · 6 diagrams in section
