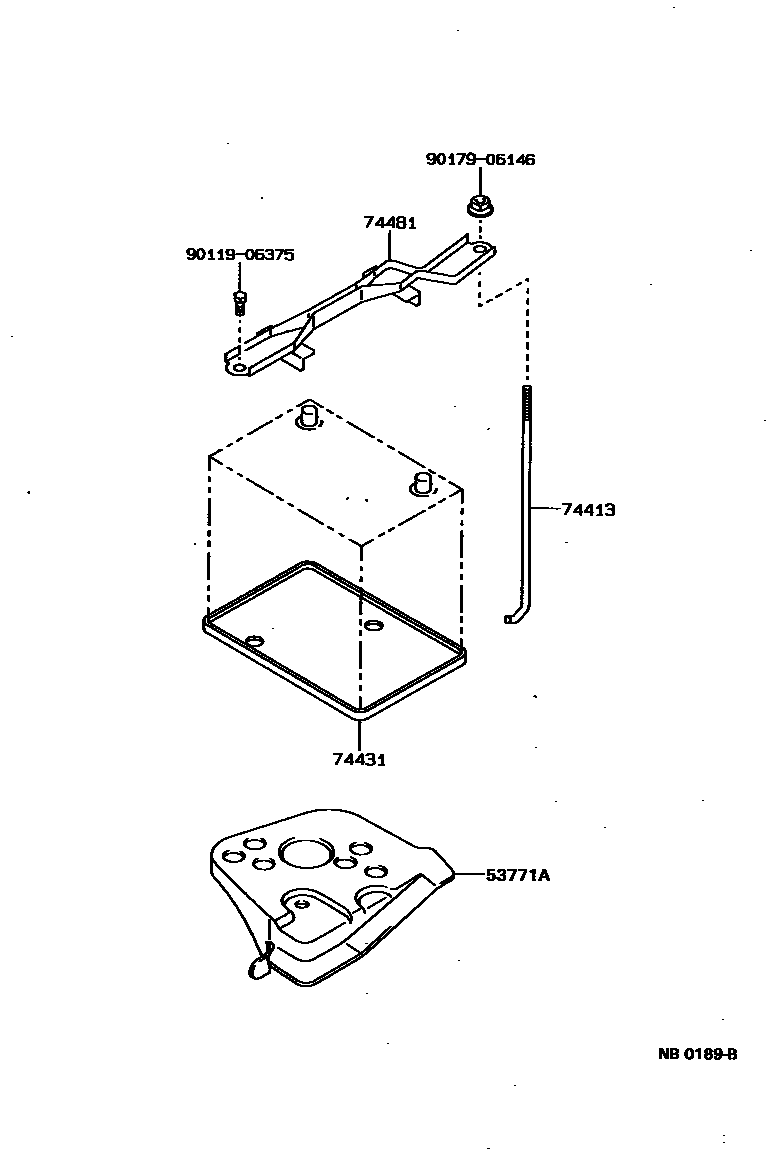

BATTERY CARRIER

53771ASUPPORT, BATTERY CARRIER

main53771-12100iAE92,EE90198705-198908

74413BOLT, BATTERY CLAMP

main74451-12050iAE92,EE90198705-199108

74431TRAY, BATTERY

main74431-14010iAE92,EE90198705-199308

main74431-14020iAE92,EE90..GCC,GEN198708-199207

W(32C24L BATTERY)

74481CLAMP, BATTERY HOLD DOWN

main74404-12250iAE92,EE90198705-199308

main74404-12260iEE90;AE92..RHD;AE92..LHD..3FC;AE92..LHD..GTI198705-198708

W(32C24L BATTERY)

9011906375

main90119-06375

9017906146

main90179-06146

6 parts on this diagram · 1 diagram in section
