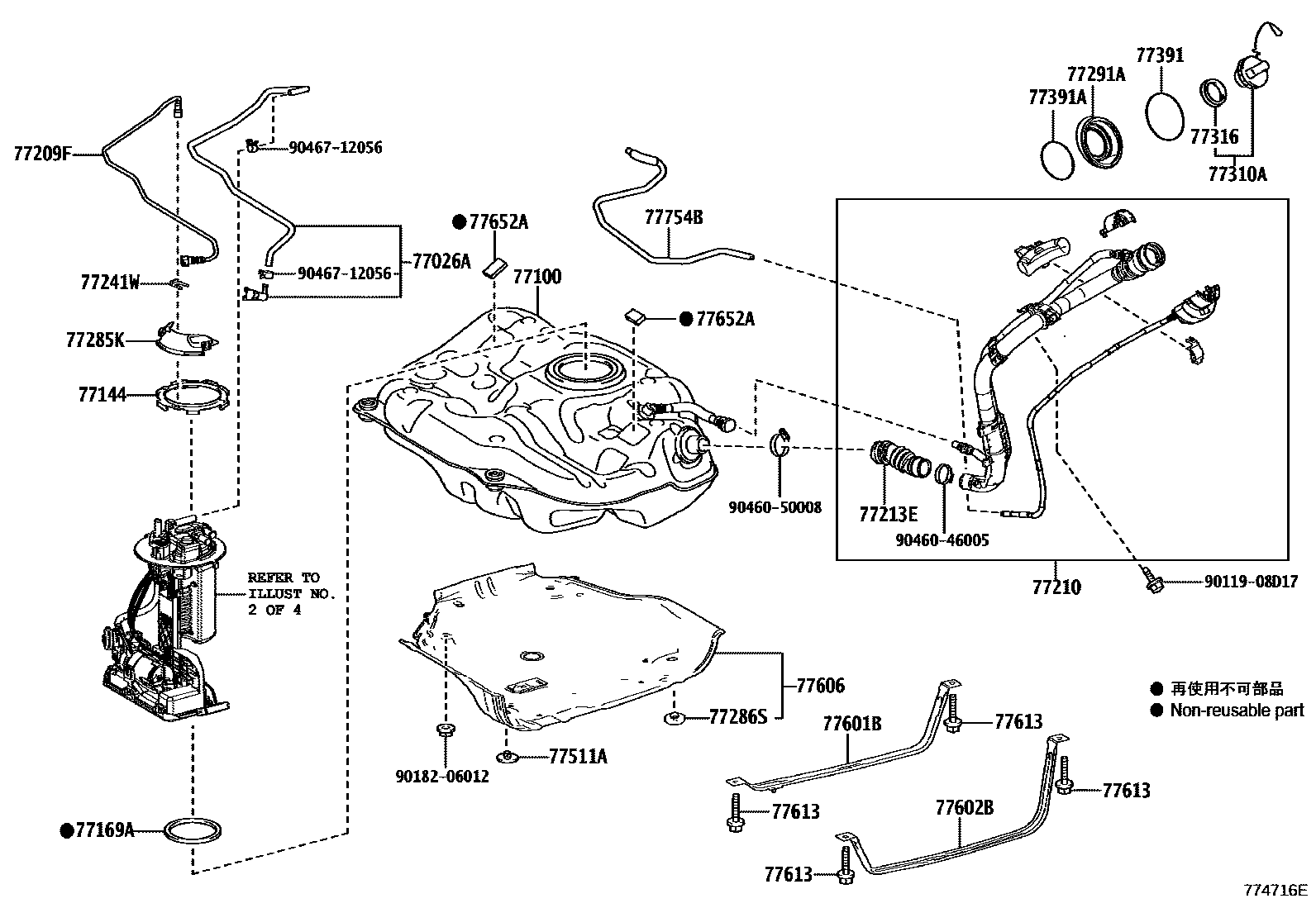

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TANK, W(CHARCOAL CANISTE0004 1FUEL TANK 0005 1FUEL TANK 0006 1FUEL TANK 0007 1FUEL TANK 0008 1FUEL PUMP 0009 1FUEL PUMP 0010 1FUEL PUMP, W(CHARCOAL CANISTE0011 1FUEL PUMP 0012 1FUEL PUMP 0013 1FUEL TUBE 0014 1FUEL TUBE 0015 1FUEL TUBE 0016 1FUEL TUBE 0017 1FUEL TUBE 0018 1FUEL TUBE 0019 1FUEL LID OPENER 0020 1FUEL LID OPENER:W(MOTOR) 0021 1FUEL LID OPENER

77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1

main77026-10040iMZEA12201909-202004

main77026-12050iZRE212202004-202208

main77026-12070iMZEA18202409

main77026-47040iZWE219202409

77100TANK ASSY, FUEL

main77001-10380iMZEA12,ZRE212202004-202208

main77001-12F10iMZEA12202209-202409

main77001-12F30iZWE219202209-202409

main77001-12F50iMZEA18..RHD202209-202307

main77001-47170iZWE213202004-202208

main77001-47220supersedes 77001-47170iZWE211..ARL201909-202004

77144RETAINER, FUEL PUMP GAUGE

main77144-30030iMZEA18..RHD202209-202307

77169AGASKET, FUEL SUCTION TUBE SET

main77169-47030supersedes 77169-47040iMZEA12..D202409-202507

main77169-47040iZWE213202004-202208

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-10130iMZEA12..L202409

main77209-12330iZRE212202004-202208

main77209-12340iZWE213202004-202208

main77209-12390iMZEA18202308-202409

main77209-12400iMZEA18202209-202307

main77209-47100supersedes 77209-12340iZWE219202409

77210PIPE ASSY, FUEL TANK FILLER

main77210-12611iZWE213202004-202208

main77210-12620supersedes 77210-12611iMZEA12,ZRE212,ZWE211..ARL,GEN; ZWE211..MXC201901-202001

CENTRAL AMERICA 1 SPEC; CENTRAL AMERICA 2 SPEC

main77210-12621iMZEA12,ZRE212,ZWE211..ARL,GEN; ZWE211..MXC202002-202004

CENTRAL AMERICA 1 SPEC; CENTRAL AMERICA 2 SPEC

77213EHOSE, FUEL TANK TO FILLER PIPE

main77213-12360iMZEA12,ZRE212,ZWE211..ARL,GEN; ZWE211..MXC201901-202004

CENTRAL AMERICA 1 SPEC; CENTRAL AMERICA 2 SPEC

77241WCLIP, TUBE JOINT

main77241-33011iMZEA12,ZRE212,ZWE211..ARL,GEN; ZWE211..MXC201901-202004

CENTRAL AMERICA 1 SPEC; CENTRAL AMERICA 2 SPEC

main77241-60550iMZEA18;MZEA12,ZWE219..L202409

77285KCLAMP, FUEL TUBE, NO.1

main77285-10060iMZEA12..L202409

main77285-30350iZWE21#202004-202208

77286SCUSHION, FUEL TANK PROTECTOR

main77286-12110iMZEA12,ZRE212202004-202208

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-12250iMZEA12..D202409-202507

77310ACAP ASSY, FUEL TANK

main77300-12020supersedes 77300-53040iMZEA18;MZEA12,ZWE219..L202409

main77300-53040iZWE213202004-202208

77316GASKET, FUEL TANK CAP

main77316-52040supersedes 77316-75020iMZEA12,ZRE212,ZWE211..ARL,GEN; ZWE211..MXC201901-202004

CENTRAL AMERICA 1 SPEC; CENTRAL AMERICA 2 SPEC

main77316-75020iZWE213202004-202208

77391RING, FUEL INLET BOX

main77391-12020iMZEA12,ZRE212,ZWE211201901-202004

77391ARING, FUEL INLET BOX

main77391-20040iMZEA12..D202409-202507

77511ABRACKET, FUEL TANK

main77512-35140×4iMZEA12..D202409-202507

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-10080iMZEA12..D202409-202507

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-10030iMZEA12..D202409-202507

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-10060iMZEA12..D202409-202507

main77606-47030iZWE213202004-202208

77613BOLT, FUEL TANK BAND SET

main90119-10995×4iMZEA12202209-202409

77652ACUSHION, FUEL TANK, NO.2

main77652-10070×2iMZEA12202209-202409

77754BHOSE, CHARCOAL CANISTER OUTLET

main77754-10020iMZEA12..D202409-202507

main77754-16100iMZEA18..RHD202209-202307

main77754-16120iZWE219202401-202409

main77754-47090iZWE219202209-202312

9011908D17

main90119-08D17

9018206012

main90182-06012

9046046005

main90460-46005

9046050008

main90460-50008

9046712056

main90467-12056

27 parts on this diagram · 21 diagrams in section
