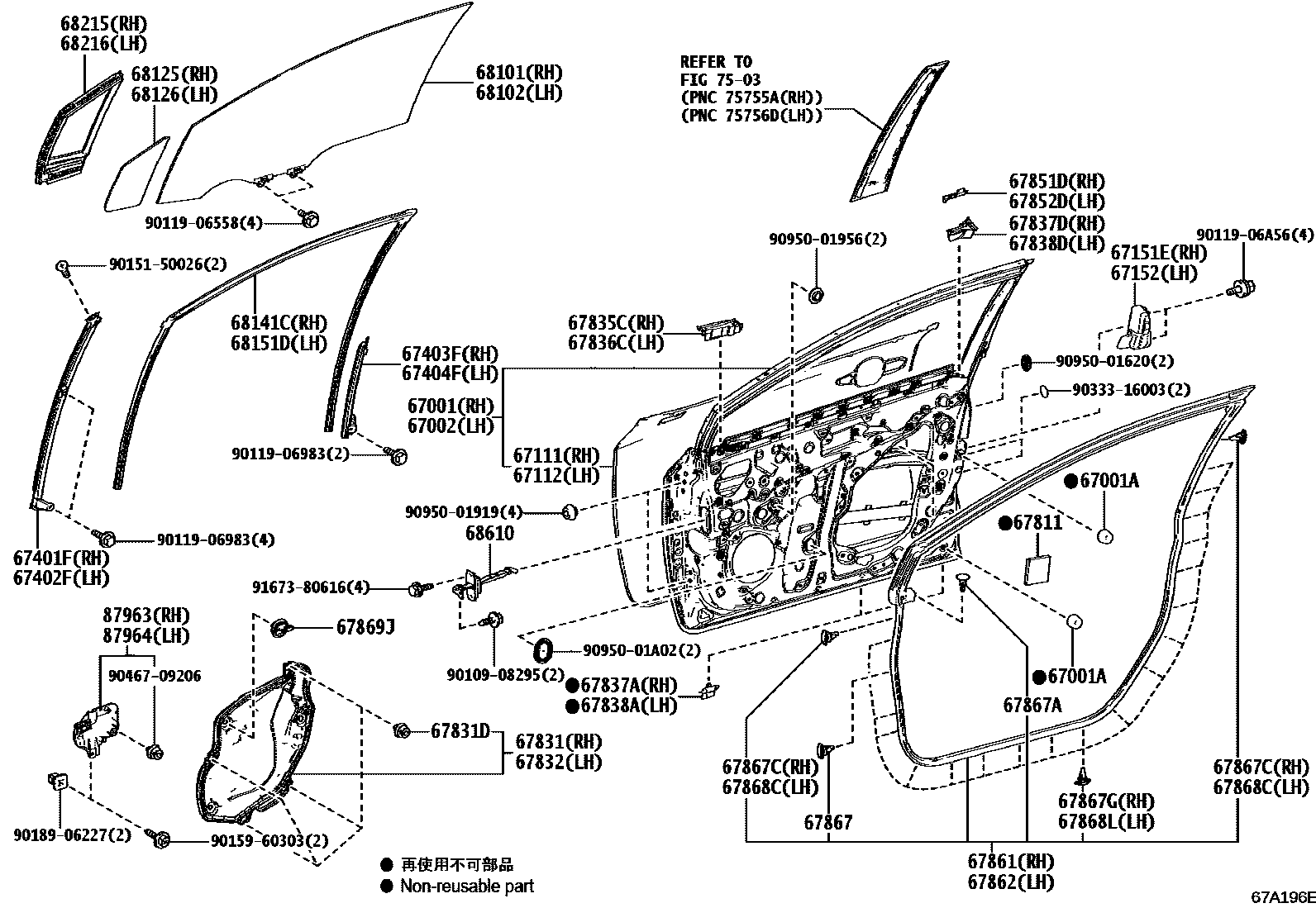

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-12C00iMZEA12,ZRE212,ZWE211201901-202004

main67001-12C30iZWE219..MXC202409

main67001-12C50iMZEA18;MZEA12,ZWE219..L..ARL202409

67001ACUSHION, FRONT DOOR PANEL

main90541-09124×4iMZEA12,ZRE212,ZWE21#202004-202208

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-12C00iMZEA12,ZRE212,ZWE211201901-202004

main67002-12C30iZWE219..MXC202409

main67002-12C50iMZEA18;MZEA12,ZWE219..L..ARL202409

67111PANEL, FRONT DOOR, OUTER RH

main67111-12750iMZEA12,ZRE212,ZWE21#202004-202208

67112PANEL, FRONT DOOR, OUTER LH

main67112-12740iMZEA12..D202409-202507

67151EREINFORCEMENT SUB-ASSY, FRONT DOOR INSIDE PANEL, RH

main67053-12110iZWE219..MXC202409

67152REINFORCEMENT SUB-ASSY, FRONT DOOR INSIDE PANEL, LH

main67054-12110iZWE219..MXC202409

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-12380iMZEA12..D202409-202507

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-12400iMZEA12..D202409-202507

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-12330iMZEA12,ZRE212,ZWE21#202004-202208

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-12310iMZEA12..D202409-202507

67811PAD, FRONT DOOR SILENCER

main67811-12180×4iMZEA12,ZRE212,ZWE21#202004-202208

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-12750iMZEA18..RHD202209-202307

67831DCLIP(FOR FRONT DOOR SERVICE HOLE COVER)

main90467-09206×8iMZEA18;MZEA12,ZWE219..L202409

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-12530iMZEA12..D202409-202507

67835CCOVER, FRONT DOOR SERVICE HOLE, NO.3 RH

main67835-12030iMZEA12,ZRE212,ZWE211201901-202004

67836CCOVER, FRONT DOOR SERVICE HOLE, NO.3 LH

main67836-12050iMZEA12..D202409-202507

67837ASEAL, FRONT DOOR VENT, RH

main67837-47060×2iMZEA12..D202409-202507

67837DSEAL, FRONT DOOR VENT, RH

main67837-12090iMZEA12..D202409-202507

67838ASEAL, FRONT DOOR VENT, LH

main67837-47060×2iMZEA12..D202409-202507

67838DSEAL, FRONT DOOR VENT, LH

main67838-12040iMZEA12..D202409-202507

67851DSEAL, FRONT DOOR REAR OUTSIDE, RH

main67851-12010iMZEA12..D202409-202507

67852DSEAL, FRONT DOOR REAR OUTSIDE, LH

main67852-12010iMZEA12..D202409-202507

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-12B20iMZEA12..D202409-202507

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-12B20iMZEA12..D202409-202507

67867CLIP, DOOR WEATHERSTRIP

main67867-52030×2iMZEA12..D202409-202507

67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)

main67868-30030×2iMZEA12..D202409-202507

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150×2iMZEA12..D202409-202507

67867GRETAINER, DOOR WEATHERSTRIP, RH

main67867-12150×18iMZEA12..D202409-202507

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150×2iMZEA12..D202409-202507

67868LRETAINER, DOOR WEATHERSTRIP, LH

main67867-12150×18iMZEA12..D202409-202507

67869JCLIP, FRONT DOOR WEATHERSTRIP

main67869-47010×6iMZEA12..D202409-202507

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-12E00iMZEA18,ZWE219202409

main68101-12E80iZWE211201901-201908

main68101-12E90iMZEA12,ZWE219..L..ARL; ZWE219..ARL202209-202409

MAURITIUS SPEC; SOUTH AFRICA SPEC

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-12D80iMZEA12,ZWE211201908-202004

main68102-12E70iZRE212202004-202010

main68102-12E80iMZEA12,ZWE219..L..ARL; ZWE219..ARL202209-202409

MAURITIUS SPEC; SOUTH AFRICA SPEC

68125GLASS, FRONT DOOR FIX WINDOW, RH

main68125-12020iMZEA18..LHD;MZEA12,ZWE219202209-202409

68126GLASS, FRONT DOOR FIX WINDOW, LH

main68126-12020iMZEA12..D202409-202507

68141CRUN, FRONT DOOR GLASS, RH

main68141-12620iZRE212,ZWE211201901-201904

main68141-12621iMZEA12,ZRE212,ZWE211201905-202003

main68141-12622iMZEA18;MZEA12,ZWE219..L202409

68151DRUN, FRONT DOOR GLASS, LH

main68151-12320iZRE212,ZWE211201901-201904

main68151-12321iMZEA12,ZRE212,ZWE211201905-202003

main68151-12322iMZEA12..D202409-202507

68215WEATHERSTRIP, FRONT DOOR FIX WINDOW, RH

main68215-12010iMZEA18;MZEA12,ZWE219..L202409

68216WEATHERSTRIP, FRONT DOOR FIX WINDOW, LH

main68216-12010iMZEA18..LHD;MZEA12,ZWE219202209-202409

68610CHECK ASSY, FRONT DOOR

main68610-12260×2iZWE219..MXC202209-202409

main68610-12300×2iMZEA18..RHD202209-202307

7503SIDE MOULDING

→ Go to FIG 75-03

87963COVER, OUTER MIRROR INSTALL HOLE, RH

main87963-12020iMZEA12,ZRE212,ZWE21#202004-202208

main87963-12030iZWE219..MXC202409

87964COVER, OUTER MIRROR INSTALL HOLE, LH

main87964-12020iMZEA18..LHD;MZEA12,ZWE219202209-202409

main87964-12030iZWE219..MXC202409

9010908295

main90109-08295

9011906558

main90119-06558

9011906983

main90119-06983

9011906A56

main90119-06A56

9015150026

main90151-50026

9015960303

main90159-60303

9018906227

main90189-06227

9033316003

main90333-16003

9046709206

main90467-09206

9095001620

main90950-01620

9095001919

main90950-01919

9095001956

main90950-01956

9095001A02

main90950-01A02

9167380616

main91673-80616

58 parts on this diagram · 2 diagrams in section
