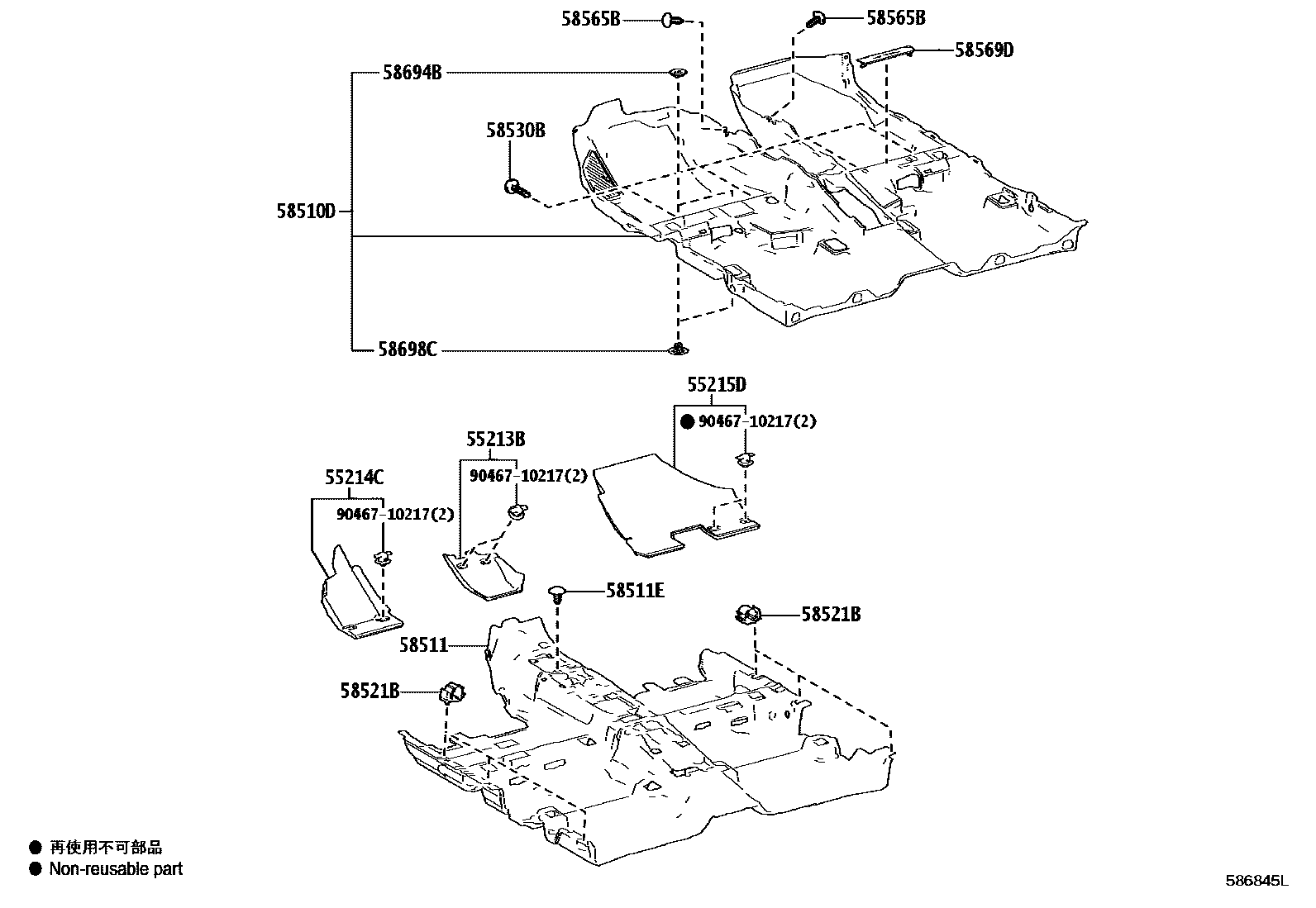

MAT & CARPET
55213BPAD, DASH PANEL INSULATOR, NO.1
55214CPAD, DASH PANEL INSULATOR, NO.2
55215DPAD, DASH PANEL INSULATOR, NO.3
58510DCARPET ASSY, FLOOR, FRONT
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#
main58510-12R00-C0supersedes 58510-12S30-C0iMZEA12..CVT..D; MZEA12..L; ZRE212..RHD..D; ZRE212..RHD..L201909-202004
BLACK,TRIM0#,1#,2#; BLACK,TRIM1#,2#; FIJI SPEC,BLACK,TRIM0#,1#,2#; FIJI SPEC,BLACK,TRIM1#,2#
BLACK,TRIM2#
BLACK,TRIM1#,2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#; BLACK,TRIM1#,2#
BLACK,TRIM2#
BLACK,TRIM2#
SOUTH AFRICA SPEC,BLACK,TRIM2#
CENTRAL AMERICA 1 SPEC,BLACK,TRIM0#,2#; CENTRAL AMERICA 2 SPEC,BLACK,TRIM0#,2#
CENTRAL AMERICA 1 SPEC,BLACK,TRIM0#,2#; CENTRAL AMERICA 2 SPEC,BLACK,TRIM0#,2#
CENTRAL AMERICA 1 SPEC,BLACK,TRIM1#,2#; CENTRAL AMERICA 2 SPEC,BLACK,TRIM1#,2#
MAURITIUS SPEC,BLACK,TRIM2#; SOUTH AFRICA SPEC,BLACK,TRIM2#
BLACK,TRIM0#,1#,2#; BLACK,TRIM1#,2#; SOUTH AFRICA SPEC,BLACK,TRIM2#
58511MAT, FLOOR, FRONT
SOUTH AFRICA SPEC
SOUTH AFRICA SPEC
MAURITIUS SPEC; SOUTH AFRICA SPEC
MAURITIUS SPEC; SOUTH AFRICA SPEC
58511ECLIP(FOR FRONT FLOOR MAT)
BLACK,TRIM0#,1#,2#; BLACK,TRIM1#,2#
58521BHOOK, FLOOR CARPET
58530BCLIP(FOR FRONT FLOOR CARPET)
BLACK,TRIM0#,1#,2#; BLACK,TRIM0#,2#; BLACK,TRIM1#,2#
BLACK,TRIM0#,1#,2#; BLACK,TRIM0#,2#; BLACK,TRIM1#,2#
58565BCLIP
BLACK,TRIM2#
58569DCOVER, FRONT FLOOR CAUTION PLATE
BLACK,TRIM2#
58694BPLATE, MAT SET, UPPER
58698CPLATE, MAT SET, LOWER
9046710217
main90467-10217
13 parts on this diagram · 6 diagrams in section
