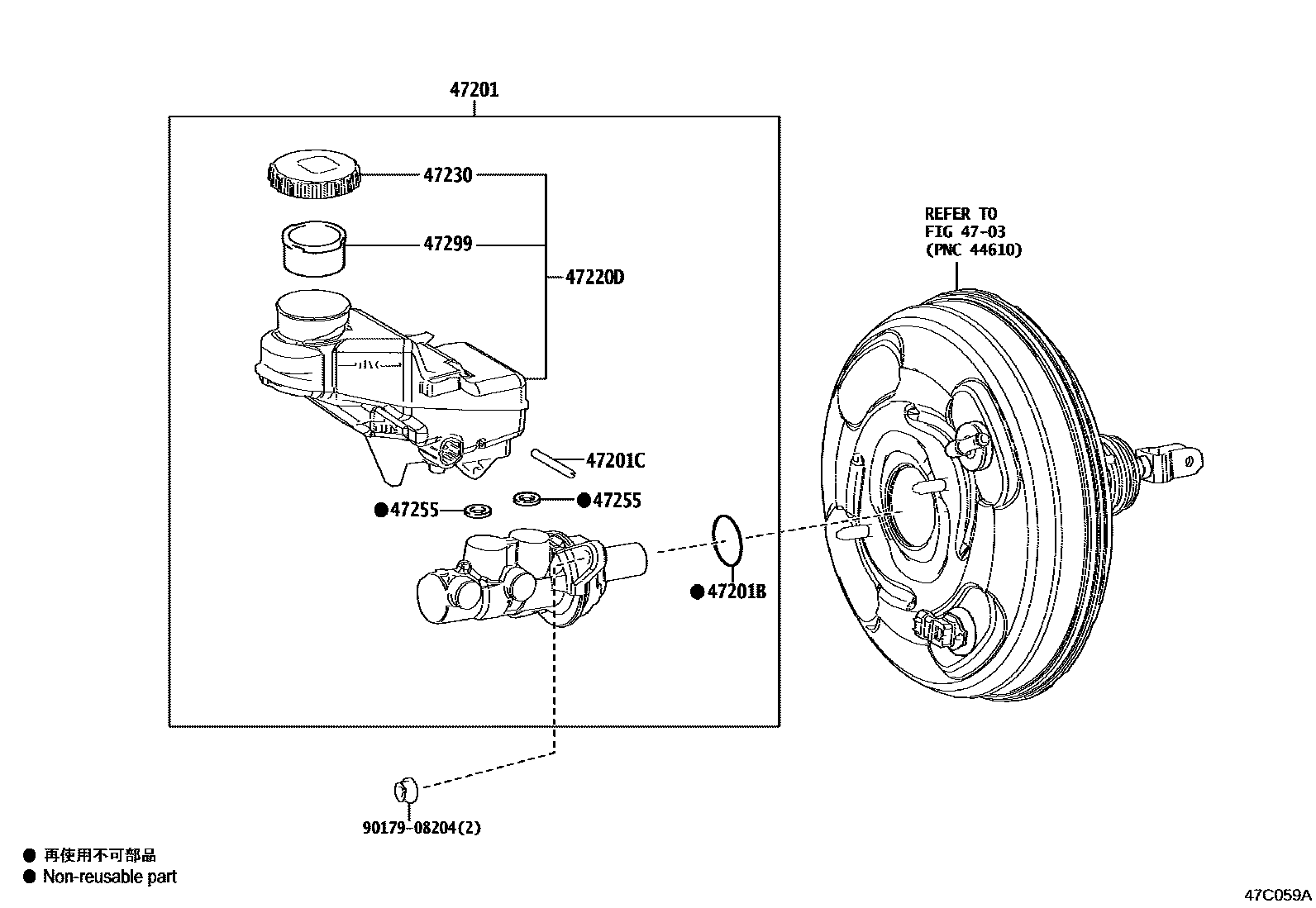

BRAKE MASTER CYLINDER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-12C30iMZEA18202409

main47201-12C40iZRE212..6F201901-202004

main47201-12C50iMZEA12..D202409-202507

main47201-12C60iMZEA12..6F202004-202208

main47201-19095iZWE219..ARL202209-202409

main47201-19105iZWE219..MXC202409

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iMZEA12,ZRE212201901-202004

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iMZEA12,ZRE212201901-202004

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-12320iZRE212..LHD..CVT202004-202208

main47220-12330iZRE212..6F202004-202208

main47220-12350iMZEA12,ZRE212..RHD..CVT201909-202004

main47220-12360iMZEA12..6F201909-202004

main47220-19015iZWE219..ARL202409

main47220-19025iZWE219..MXC202409

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-33330iZWE21#202004-202006

main47230-47090iMZEA18;MZEA12..L202409

47255GROMMET, MASTER CYLINDER RESERVOIR

main90029-48001×2iMZEA12..D202409-202507

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iMZEA12..D202409-202507

main47299-52110iZWE219202409

9017908204

main90179-08204

9 parts on this diagram · 6 diagrams in section
