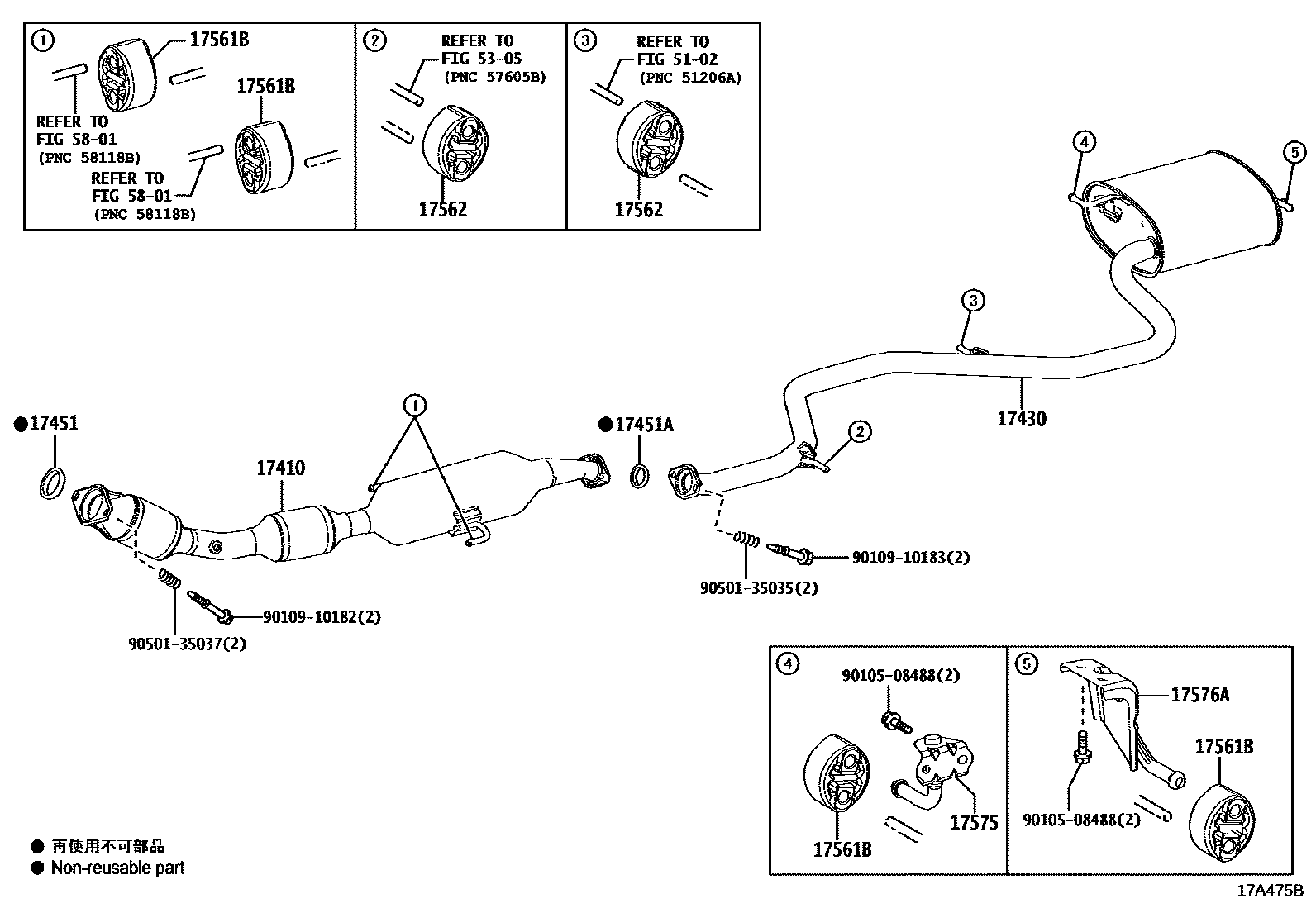

EXHAUST PIPE

0001 1 0002 1 0003 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-24310iM20AFKS..MZEA12201909-202004

main17410-24620iM20AFKS..MZEA18..LHD202209-202409

main17410-37B10i2ZRFXE..ZWE211201901-202004

main17410-37B11i2ZRFXE..ZWE21#202004-202208

main17410-37C00i2ZRFAE..ZRE212201901-202004

main17410-37E90i2ZRFXE..ZWE219202209-202409

main17410-37F70i2ZRFXE..ZWE219202409

main17410-24390supersedes 17410-24310iM20AFKS..MZEA12..L202409-202508

SOUTH AFRICA SPEC

17430PIPE ASSY, EXHAUST, TAIL

main17430-24340iM20AFKS..MZEA12201909-202004

main17430-24500iM20AFKS..MZEA18..LHD202209-202409

main17430-37690i2ZRFAE..ZRE212201901-202004

main17430-37700i2ZRFXE..ZWE211201901-202004

17451GASKET, EXHAUST PIPE

main17451-24010i2ZRFXE..ZWE21#202004-202208

main17451-28040iM20AFKS,2ZR#..MZEA12,ZRE212,ZWE211201901-202004

main17451-28041iM20AFKS..MZEA12..D202409-202507

17451AGASKET, EXHAUST PIPE, NO.2

main17451-23042iM20AFKS,2ZR#..MZEA12,ZRE212,ZWE211201901-202004

main17451-23043iM20AFKS..MZEA12..D202409-202507

main17451-24020i2ZRFXE..ZWE21#202004-202208

17561BSUPPORT, EXHAUST PIPE, NO.1

main17565-22040×4iM20AFKS,2ZR#..MZEA12,ZRE212,ZWE211201901-202004

17562SUPPORT, EXHAUST PIPE, NO.2

main17565-28010×2iM20AFKS,2ZR#..MZEA12,ZRE212,ZWE211201901-202004

17575BRACKET, EXHAUST PIPE SUPPORT, NO.5

main17575-24070iM20AFKS,2ZR#..MZEA12,ZRE212,ZWE211201901-202004

17576ABRACKET, EXHAUST PIPE SUPPORT, NO.6

main17576-24070iM20AFKS,2ZR#..MZEA12,ZRE212,ZWE211201901-202004

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

5305FLOOR SIDE MEMBER

→ Go to FIG 53-05

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

9010508488

main90105-08488

9010910182

main90109-10182

9010910183

main90109-10183

9050135035

main90501-35035

9050135037

main90501-35037

16 parts on this diagram · 3 diagrams in section
