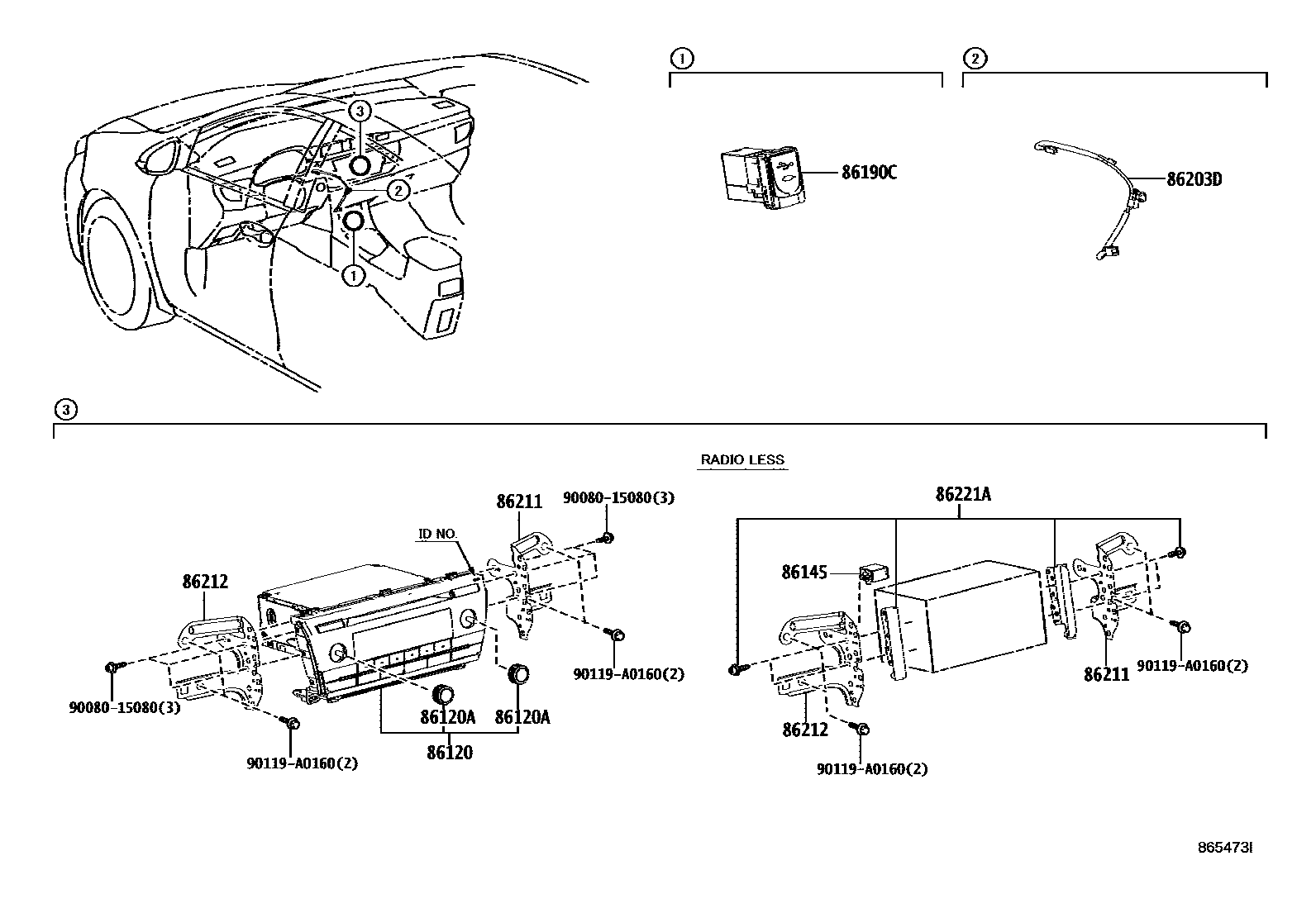

RADIO RECEIVER & AMPLIFIER & CONDENSER

86120RECEIVER ASSY, RADIO

main86120-02F60i201308-201608

PANASONIC,ID=518C6; PANASONIC,ID=518C6,MEXICO DECONTENT; PANASONIC,ID=518C6,MEXICO DECONTENT&BACK MONITOR(REAR TELEVISION CAMERA)-WITH

main86120-02G20supersedes 86120-02K10i201404-201608

PANASONIC,ID=528CM; PANASONIC,ID=528CM,AUDIO-RADIO LESS & 4SPEAKER; PANASONIC,ID=528CM,AUDIO-RADIO LESS & 6SPEAKER

86120AKNOB, RADIO RECEIVER SWITCH

main90011-25244×2i201308-201608

MEXICO DECONTENT; MEXICO DECONTENT&BACK MONITOR(REAR TELEVISION CAMERA)-WITH

86145CONNECTOR, ANTENNA MALE

main86145-52010i201404-201608

AUDIO-RADIO LESS & 4SPEAKER; AUDIO-RADIO LESS & 6SPEAKER

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-0R010i201308-201408

86203DWIRE, STEREO COMPONENT, NO.1

main86203-02170i201308-201408

AUDIO-RADIO LESS & 4SPEAKER

86211BRACKET, RADIO, NO.1

main86211-02280i201308-201408

86212BRACKET, RADIO, NO.2

main86212-02270i201308-201408

86221APANEL, RADIO RECEIVER

main86221-35020i201404-201608

AUDIO-RADIO LESS & 4SPEAKER; AUDIO-RADIO LESS & 6SPEAKER

9008015080

90119A0160

10 parts on this diagram · 3 diagrams in section
