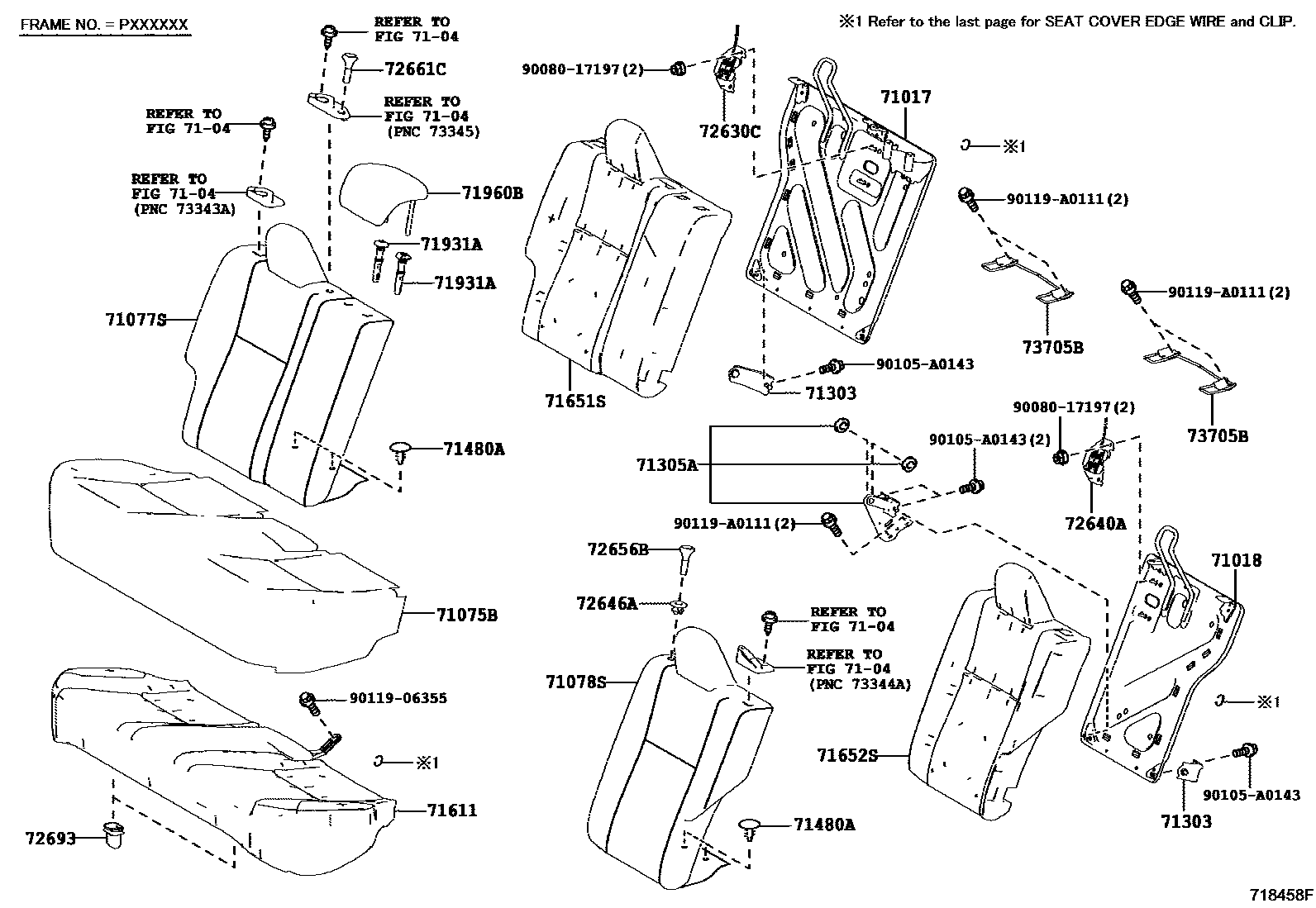

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-02580i201608

*348

main71017-02590i201308-201608

*213

main71017-02620i201308-201408

SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),*348; SEAT COVER MATERIAL-LEATHER,*348

main71017-02630i201308-201408

SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),*213; SEAT COVER MATERIAL-LEATHER,*213

main71017-02890supersedes 71017-02A20i201408-201608

SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),*213; SEAT COVER MATERIAL-LEATHER,*213

main71017-02A20i201408-201608

*348; REAR ARMREST-WITH; REAR ARMREST-WITH&SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P)

main71017-02A30supersedes 71017-02A20i201408-201608

SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),*348; SEAT COVER MATERIAL-LEATHER,*348

71018FRAME SUB-ASSY, REAR SEATBACK, LH

main71018-02330i201308-201608

*348; MEXICO DECONTENT

main71018-02340i201608

*213

main71018-02390i201608

SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH,*348; SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT),*348

main71018-02400i201308-201608

SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),*213; SEAT COVER MATERIAL-LEATHER,*213

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71075-02R40-B0i201404-201608

STEEL GRAY,TRIM1#

main71075-02R40-B1i201608-201903

STEEL GRAY,TRIM1#

main71075-02R90-B0i201308-201608

STEEL GRAY,TRIM1#,*348

main71075-02R90-B1i201608-201708

STEEL GRAY,TRIM1#,*348

main71075-02R92-B1i201708-201903

STEEL GRAY,TRIM1#,*348

main71075-02S00-A0i201308-201608

IVORY,TRIM0#,*348

main71075-02S00-A3i201608-201708

FLAXEN,TRIM0#,*348

main71075-02S00-B0i201308-201608

GRAY,TRIM1#,*348

main71075-02S00-B3i201608-201708

GRAY,TRIM1#,*348

main71075-02S00-E0i201308-201608

AMBER,TRIM4#,*348

main71075-02S02-A3i201708-201903

FLAXEN,TRIM0#,*348

main71075-02S02-B3i201708-201903

GRAY,TRIM1#,*348

main71075-02S10-23i201308-201608

BLACK,TRIM2#,*348

main71075-02S10-E0i201308-201608

BLACK,TRIM4#,*348

main71075-02S10-J0i201308-201608

BLACK,TRIM8#,*348

main71075-02S30-B1i201308-201608

STEEL GRAY,TRIM1#,*213

main71075-02S30-B2i201608-201708

STEEL GRAY,TRIM1#,*213

main71075-02S31-B2i201708-201903

STEEL GRAY,TRIM1#,*213

main71075-02S40-A1i201308-201608

IVORY,TRIM0#,*213

main71075-02S40-A4i201608-201708

FLAXEN,TRIM0#,*213

main71075-02S40-B1i201308-201608

GRAY,TRIM1#,*213

main71075-02S40-B4i201608-201708

GRAY,TRIM1#,*213

main71075-02S40-E2i201308-201608

AMBER,TRIM4#,*213

main71075-02S41-A4i201708-201903

FLAXEN,TRIM0#,*213

main71075-02S41-B4i201708-201903

GRAY,TRIM1#,*213

main71075-02S50-20i201308-201601

BLACK,TRIM2#,*213

main71075-02S50-27i201601-201608

BLACK/GRAY,TRIM2#,*213

main71075-02S50-E3i201308-201601

BLACK,TRIM4#,*213

main71075-02S50-E6i201601-201608

BLACK/AMBER,TRIM4#,*213

main71075-02S50-J3i201308-201601

BLACK,TRIM8#,*213

main71075-02S50-J6i201601-201608

BLACK/STEEL BLUE,TRIM8#,*213

main71075-02X20-A0i201404-201608

IVORY,TRIM0#

main71075-02X20-A3i201608-201708

FLAXEN,TRIM0#

main71075-02X20-B0i201404-201608

GRAY,TRIM1#

main71075-02X20-B3i201608-201708

GRAY,TRIM1#

main71075-02X20-C3i201608-201708

BLACK,TRIM2#

main71075-02X20-E0i201404-201608

AMBER,TRIM4#

main71075-02X21-A3i201708-201903

FLAXEN,TRIM0#

main71075-02X21-B3i201708-201903

GRAY,TRIM1#

main71075-02X21-C3i201708-201903

BLACK,TRIM2#

main71075-02X30-C0i201404-201608

BLACK/BLACK,TRIM2#

main71075-02X30-E0i201404-201608

BLACK/AMBER,TRIM4#

main71075-02X30-J0i201404-201608

STEEL BLUE,TRIM8#

main71075-0Z240-C2i201608-201903

BLACK/BLUE,TRIM2#

main71075-0Z240-E2i201608-201903

BLACK/ORANGE,TRIM4#

main71075-0Z240-J2i201608-201903

BLACK/BLUE,TRIM8#

main71075-0Z250-E2i201608-201708

BLACK/ORANGE,TRIM4#,*348

main71075-0Z250-J2i201608-201708

BLACK/BLUE,TRIM8#,*348

main71075-0Z251-E2i201708-201903

BLACK/ORANGE,TRIM4#,*348

main71075-0Z251-J2i201708-201903

BLACK/BLUE,TRIM8#,*348

main71075-0Z270-E2i201608-201708

ORANGE,TRIM4#,*213

main71075-0Z270-J2i201608-201708

BLUE,TRIM8#,*213

main71075-0Z271-E2i201708-201903

ORANGE,TRIM4#,*213

main71075-0Z271-J2i201708-201903

BLUE,TRIM8#,*213

main71075-02R40i201608-201708

MEXICO DECONTENT

main71075-02S20-C4i201308-201608

SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),BLACK,TRIM2#,*348; SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#,*348

main71075-02S60-C5i201308-201601

SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),BLACK,TRIM2#,*213; SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#,*213

main71075-02S60-C8i201601-201608

SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),BLACK,TRIM2#,*213; SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#,*213

main71075-0Z230-C3supersedes 71075-0Z270-C5i201608-201708

SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH,BLACK,TRIM2#,*348; SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT),BLACK,TRIM2#,*348

main71075-0Z230-C4supersedes 71075-02S40-C8i201608-201708

SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH,BLACK,TRIM2#,*348; SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT),BLACK,TRIM2#,*348

main71075-0Z231-C3supersedes 71075-0Z271-C5i201708-201903

SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH,BLACK,TRIM2#,*348; SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT),BLACK,TRIM2#,*348

main71075-0Z231-C4supersedes 71075-02S41-C8i201708-201903

SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH,BLACK,TRIM2#,*348; SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT),BLACK,TRIM2#,*348

main71075-0Z260-C4supersedes 71075-0Z270-C5i201608-201708

SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH,BLACK,TRIM2#,*213; SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT),BLACK,TRIM2#,*213

main71075-0Z260-C5supersedes 71075-02S40-C8i201608-201708

SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH,BLACK,TRIM2#,*213; SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT),BLACK,TRIM2#,*213

main71075-0Z261-C4supersedes 71075-0Z271-C5i201708-201903

SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH,BLACK,TRIM2#,*213; SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT),BLACK,TRIM2#,*213

main71075-0Z261-C5supersedes 71075-02S41-C8i201708-201903

SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH,BLACK,TRIM2#,*213; SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT),BLACK,TRIM2#,*213

71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)

main71077-02U90-A0i201408-201608

IVORY,TRIM0#,*213

main71077-02U90-A3i201608-201708

FLAXEN,TRIM0#,*213

main71077-02U90-B0i201408-201608

GRAY,TRIM1#,*213

main71077-02U90-B3i201608-201708

GRAY,TRIM1#,*213

main71077-02U90-E0i201408-201608

AMBER,TRIM4#,*213

main71077-02U91-A3i201708

FLAXEN,TRIM0#,*213

main71077-02U91-B3i201708

GRAY,TRIM1#,*213

main71077-02V00-C1i201408-201601

BLACK,TRIM2#,*213

main71077-02V00-C7i201601-201608

BLACK/GRAY,TRIM2#,*213

main71077-02V00-E0i201408-201601

AMBER,TRIM4#,*213

main71077-02V00-E3i201601-201608

BLACK/AMBER,TRIM4#,*213

main71077-02V00-J0i201408-201601

STEEL BLUE,TRIM8#,*213

main71077-02V00-J3i201601-201608

BLACK/STEEL BLUE,TRIM8#,*213

main71077-02V50-C0i201312-201408

BLACK/BLACK,TRIM2#,*348

main71077-02V50-E0i201312-201408

BLACK/AMBER,TRIM4#,*348

main71077-02V50-J0i201312-201408

BLACK/STEEL BLUE,TRIM8#,*348

main71077-02W10-B2i201308-201608

STEEL GRAY,TRIM1#,*348

main71077-02W10-B3i201608-201708

STEEL GRAY,TRIM1#,*348

main71077-02W12-B3i201708

STEEL GRAY,TRIM1#,*348

main71077-02W20-A2i201308-201408

IVORY,TRIM0#,*348

main71077-02W20-B2i201308-201408

GRAY,TRIM1#,*348

main71077-02W20-E3i201308-201408

AMBER,TRIM4#,*348

main71077-02W30-C6i201308-201312

BLACK,TRIM2#,*348

main71077-02W30-E5i201308-201312

BLACK,TRIM4#,*348

main71077-02W30-J5i201308-201312

BLACK,TRIM8#,*348

main71077-02W70-B2i201308-201608

STEEL GRAY,TRIM1#,*213

main71077-02W70-B3i201608-201708

STEEL GRAY,TRIM1#,*213

main71077-02W71-B3i201708

STEEL GRAY,TRIM1#,*213

main71077-02W80-A2i201308-201408

IVORY,TRIM0#,*213

main71077-02W80-B2i201308-201408

GRAY,TRIM1#,*213

main71077-02W80-E3i201308-201408

AMBER,TRIM4#,*213

main71077-02W90-21i201308-201408

BLACK,TRIM2#,*213

main71077-02W90-E4i201308-201408

BLACK,TRIM4#,*213

main71077-02W90-J4i201308-201408

BLACK,TRIM8#,*213

main71077-0Z310-B1i201404-201408

STEEL GRAY,TRIM1#

main71077-0Z311-B1i201408-201608

MEXICO DECONTENT,STEEL GRAY,TRIM1#; STEEL GRAY,TRIM1#

main71077-0Z311-B2i201608

STEEL GRAY,TRIM1#

main71077-0Z380-A1i201408-201608

IVORY,TRIM0#,*348

main71077-0Z380-A3i201608-201708

FLAXEN,TRIM0#,*348

main71077-0Z380-B1i201408-201608

GRAY,TRIM1#,*348

main71077-0Z380-B3i201608-201708

GRAY,TRIM1#,*348

main71077-0Z380-E1i201408-201608

AMBER,TRIM4#,*348

main71077-0Z382-A3i201708

FLAXEN,TRIM0#,*348

main71077-0Z382-B3i201708

GRAY,TRIM1#,*348

main71077-0Z390-C1i201408-201608

BLACK/BLACK,TRIM2#,*348

main71077-0Z390-E1i201408-201608

BLACK/AMBER,TRIM4#,*348

main71077-0Z390-J1i201408-201608

BLACK/STEEL BLUE,TRIM8#,*348

main71077-0ZC50-C3i201608-201708

BLACK/ORANGE,TRIM4#,*348

main71077-0ZC50-C4i201608-201708

BLACK/BLUE,TRIM8#,*348

main71077-0ZC51-C7i201708

BLACK/ORANGE,TRIM4#,*348

main71077-0ZC51-C8i201708

BLACK/BLUE,TRIM8#,*348

main71077-0ZC90-C4i201608-201708

BLACK/BLUE,TRIM8#,*213

main71077-0ZC90-C5i201608-201708

BLACK/ORANGE,TRIM4#,*213

main71077-0ZC91-C4i201708

BLACK/BLUE,TRIM8#,*213

main71077-0ZC91-C5i201708

BLACK/ORANGE,TRIM4#,*213

main71077-02W40-C5i201308-201408

SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),BLACK,TRIM2#,*348; SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#,*348

main71077-02X00-C6i201308-201408

SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),BLACK,TRIM2#,*213; SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#,*213

main71077-0Z370-C0i201408-201601

SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),BLACK,TRIM2#,*213; SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#,*213

main71077-0Z370-C5i201601-201608

SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),BLACK,TRIM2#,*213; SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#,*213

main71077-0Z400-C1i201408-201608

SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),BLACK,TRIM2#,*348; SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#,*348

main71077-0Z411-A1supersedes 71077-0Z341-A1i201408-201608

REAR ARMREST-WITH&SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P),IVORY,TRIM0#; REAR ARMREST-WITH,IVORY,TRIM0#

main71077-0Z411-A3i201608-201707

REAR ARMREST-WITH&SRS AIR BAG-W(*CUSA, *DRP, CUSHION, KNEE & SIDE),FLAXEN,TRIM0#

main71077-0Z411-B1i201408-201608

REAR ARMREST-WITH&SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P),GRAY,TRIM1#; REAR ARMREST-WITH,GRAY,TRIM1#

main71077-0Z411-B3i201608-201707

REAR ARMREST-WITH&SRS AIR BAG-W(*CUSA, *DRP, CUSHION, KNEE & SIDE),GRAY,TRIM1#

main71077-0Z411-C2supersedes 71077-0Z341-C3i201608-201708

REAR ARMREST-WITH,BLACK,TRIM2#

main71077-0Z411-E1i201408-201608

REAR ARMREST-WITH&SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P),AMBER,TRIM4#; REAR ARMREST-WITH,AMBER,TRIM4#

main71077-0Z412-A3supersedes 71077-0Z342-A4i201708

REAR ARMREST-WITH,FLAXEN,TRIM0#

main71077-0Z412-B3supersedes 71077-0Z342-B4i201708

REAR ARMREST-WITH,GRAY,TRIM1#

main71077-0Z412-C2supersedes 71077-0Z342-C3i201708

REAR ARMREST-WITH,BLACK,TRIM2#

main71077-0Z421-C1supersedes 71077-02V61-C0i201408-201608

REAR ARMREST-WITH,BLACK/BLACK,TRIM2#

main71077-0Z421-E1supersedes 71077-02V61-E0i201408-201608

REAR ARMREST-WITH,BLACK/AMBER,TRIM4#

main71077-0Z421-J1supersedes 71077-02V61-J0i201408-201608

REAR ARMREST-WITH,BLACK/STEEL BLUE,TRIM8#

main71077-0ZC30-C3supersedes 71077-0ZC90-C3i201608-201708

SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH,BLACK,TRIM2#,*348; SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT),BLACK,TRIM2#,*348

main71077-0ZC30-C4supersedes 71077-0Z380-C2i201608-201708

SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH,BLACK,TRIM2#,*348; SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT),BLACK,TRIM2#,*348

main71077-0ZC31-C5supersedes 71077-0ZC91-C3i201708

SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH,BLACK,TRIM2#,*348; SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT),BLACK,TRIM2#,*348

main71077-0ZC31-C6supersedes 71077-0Z382-C2i201708

SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH,BLACK,TRIM2#,*348; SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT),BLACK,TRIM2#,*348

main71077-0ZC60-C1supersedes 71077-0ZC40-C1i201608-201708

REAR ARMREST-WITH,BLACK/BLUE,TRIM2#

main71077-0ZC60-C2supersedes 71077-0ZC40-C2i201608-201708

REAR ARMREST-WITH,BLACK/ORANGE,TRIM4#

main71077-0ZC60-C3supersedes 71077-0ZC40-C3i201608-201708

REAR ARMREST-WITH,BLACK/BLUE,TRIM8#

main71077-0ZC60-C4supersedes 71077-0ZC40-C4i201708

REAR ARMREST-WITH,BLACK/BLUE,TRIM2#

main71077-0ZC60-C5supersedes 71077-0ZC40-C5i201708

REAR ARMREST-WITH,BLACK/ORANGE,TRIM4#

main71077-0ZC60-C6supersedes 71077-0ZC40-C6i201708

REAR ARMREST-WITH,BLACK/BLUE,TRIM8#

main71077-0ZC80-C4supersedes 71077-0ZC90-C3i201608-201708

SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH,BLACK,TRIM2#,*213; SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT),BLACK,TRIM2#,*213

main71077-0ZC80-C5supersedes 71077-0Z380-C2i201608-201708

SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH,BLACK,TRIM2#,*213; SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT),BLACK,TRIM2#,*213

main71077-0ZC81-C4supersedes 71077-0ZC91-C3i201708

SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH,BLACK,TRIM2#,*213; SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT),BLACK,TRIM2#,*213

main71077-0ZC81-C5supersedes 71077-0Z382-C2i201708

SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH,BLACK,TRIM2#,*213; SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT),BLACK,TRIM2#,*213

71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71078-02M80-B2i201308-201608

STEEL GRAY,TRIM1#,*348

main71078-02M80-B3i201608-201708

STEEL GRAY,TRIM1#,*348

main71078-02M82-B3i201708

STEEL GRAY,TRIM1#,*348

main71078-02M90-A2i201308-201608

IVORY,TRIM0#,*348

main71078-02M90-A4i201608-201708

FLAXEN,TRIM0#,*348

main71078-02M90-B2i201308-201608

GRAY,TRIM1#,*348

main71078-02M90-B4i201608-201708

GRAY,TRIM1#,*348

main71078-02M90-E3i201308-201608

AMBER,TRIM4#,*348

main71078-02M92-A4i201708

FLAXEN,TRIM0#,*348

main71078-02M92-B4i201708

GRAY,TRIM1#,*348

main71078-02N00-C6i201308-201312

BLACK,TRIM2#,*348

main71078-02N00-E5i201308-201312

BLACK,TRIM4#,*348

main71078-02N00-J5i201308-201312

BLACK,TRIM8#,*348

main71078-02N40-B2i201308-201608

STEEL GRAY,TRIM1#,*213

main71078-02N40-B3i201608-201708

STEEL GRAY,TRIM1#,*213

main71078-02N41-B3i201708

STEEL GRAY,TRIM1#,*213

main71078-02N50-A2i201308-201608

IVORY,TRIM0#,*213

main71078-02N50-A4i201608-201708

FLAXEN,TRIM0#,*213

main71078-02N50-B2i201308-201608

GRAY,TRIM1#,*213

main71078-02N50-B4i201608-201708

GRAY,TRIM1#,*213

main71078-02N50-E3i201308-201608

BLACK,TRIM4#,*213

main71078-02N51-A4i201708

FLAXEN,TRIM0#,*213

main71078-02N51-B4i201708

GRAY,TRIM1#,*213

main71078-02N60-21i201308-201601

BLACK,TRIM2#,*213

main71078-02N60-28i201601-201608

BLACK/MD.GRAY,TRIM2#,*213

main71078-02N60-E4i201308-201601

BLACK,TRIM4#,*213

main71078-02N60-E7i201601-201608

BLACK/AMBER,TRIM4#,*213

main71078-02N60-J4i201308-201601

BLACK,TRIM8#,*213

main71078-02N60-J7i201601-201608

BLACK/STEEL BLUE,TRIM8#,*213

main71078-02U20-B1i201404-201408

STEEL GRAY,TRIM1#

main71078-02U21-B1i201408-201608

MEXICO DECONTENT,STEEL GRAY,TRIM1#; STEEL GRAY,TRIM1#

main71078-02U21-B3i201608

STEEL GRAY,TRIM1#

main71078-02U30-A1i201404-201408

IVORY,TRIM0#

main71078-02U30-B1i201404-201408

GRAY,TRIM1#

main71078-02U30-E1i201404-201408

AMBER,TRIM4#

main71078-02U31-A1i201408-201608

IVORY,TRIM0#

main71078-02U31-A4i201608-201708

FLAXEN,TRIM0#

main71078-02U31-B1i201408-201608

GRAY,TRIM1#

main71078-02U31-B4i201608-201708

GRAY,TRIM1#

main71078-02U31-C3i201608-201708

BLACK,TRIM2#

main71078-02U31-E1i201408-201608

AMBER,TRIM4#

main71078-02U32-A4i201708

FLAXEN,TRIM0#

main71078-02U32-B4i201708

GRAY,TRIM1#

main71078-02U32-C3i201708

BLACK,TRIM2#

main71078-02U90-C0i201312-201608

BLACK/BLACK,TRIM2#,*348

main71078-02U90-E0i201312-201608

BLACK/AMBER,TRIM4#,*348

main71078-02U90-J0i201312-201608

BLACK/STEEL BLUE,TRIM8#,*348

main71078-02V00-C0i201404-201408

BLACK/BLACK,TRIM2#

main71078-02V00-E0i201404-201408

BLACK/AMBER,TRIM4#

main71078-02V00-J0i201404-201408

BLACK/STEEL BLUE,TRIM8#

main71078-02V01-C0i201408-201608

BLACK/BLACK,TRIM2#

main71078-02V01-E0i201408-201608

BLACK/AMBER,TRIM4#

main71078-02V01-J0i201408-201608

BLACK/STEEL BLUE,TRIM8#

main71078-0Z050-C3i201608-201708

BLACK/ORANGE,TRIM4#,*348

main71078-0Z050-C4i201608-201708

BLACK/BLUE,TRIM8#,*348

main71078-0Z051-C3i201708

BLACK/ORANGE,TRIM4#,*348

main71078-0Z051-C4i201708

BLACK/BLUE,TRIM8#,*348

main71078-0Z060-C1i201608

BLACK/BLACK,TRIM2#

main71078-0Z060-C2i201608

BLACK/BLUE,TRIM8#

main71078-0Z060-C3i201608

BLACK/ORANGE,TRIM4#

main71078-0Z090-C4i201608-201708

BLACK/BLUE,TRIM8#,*213

main71078-0Z090-C5i201608-201708

BLACK/ORANGE,TRIM4#,*213

main71078-0Z091-C4i201708

BLACK/BLUE,TRIM8#,*213

main71078-0Z091-C5i201708

BLACK/ORANGE,TRIM4#,*213

main71078-02N10-C5i201308-201608

SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),BLACK,TRIM2#,*348; SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#,*348

main71078-02N70-21i201601-201608

SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),BLACK,TRIM2#,*213; SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#,*213

main71078-02N70-C6i201308-201601

SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),BLACK,TRIM2#,*213; SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#,*213

main71078-0Z040-C3supersedes 71078-0Z090-C3i201608-201708

SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH,BLACK,TRIM2#,*348; SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT),BLACK,TRIM2#,*348

main71078-0Z040-C4supersedes 71078-02N50-C7i201608-201708

SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH,BLACK,TRIM2#,*348; SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT),BLACK,TRIM2#,*348

main71078-0Z041-C3supersedes 71078-0Z091-C3i201708

SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH,BLACK,TRIM2#,*348; SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT),BLACK,TRIM2#,*348

main71078-0Z041-C4supersedes 71078-02N51-C7i201708

SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH,BLACK,TRIM2#,*348; SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT),BLACK,TRIM2#,*348

main71078-0Z080-C4supersedes 71078-0Z090-C3i201608-201708

SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH,BLACK,TRIM2#,*213; SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT),BLACK,TRIM2#,*213

main71078-0Z080-C5supersedes 71078-02N50-C7i201608-201708

SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH,BLACK,TRIM2#,*213; SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT),BLACK,TRIM2#,*213

main71078-0Z081-C4supersedes 71078-0Z091-C3i201708

SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH,BLACK,TRIM2#,*213; SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT),BLACK,TRIM2#,*213

main71078-0Z081-C5supersedes 71078-02N51-C7i201708

SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH,BLACK,TRIM2#,*213; SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT),BLACK,TRIM2#,*213

71303HINGE SUB-ASSY, REAR SEATBACK

main71303-02220×2i201308-201408

*213,*348

71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER

main71305-02230i201308-201608

*213,*348

71480ACLIP (FOR REAR SEATBACK)

main90467-09156-C0×4i201608

BLACK

71611PAD, REAR SEAT CUSHION

main71503-02280i201608-201708

*213

main71503-02281i201708

*213

main71503-02450i201608-201708

*348

main71503-02451i201708

*348

main71503-02460i201404-201408

main71503-02461i201608

main71503-02590i201408-201608

MEXICO DECONTENT

71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)

main71651-02520i201308-201608

*213

main71651-02521i201708

*213

main71651-02720i201308-201608

*348; MEXICO DECONTENT

main71651-02721i201708

*348

main71651-02560i201308-201408

SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),*213; SEAT COVER MATERIAL-LEATHER,*213

main71651-02730i201308-201408

SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),*348; SEAT COVER MATERIAL-LEATHER,*348

main71651-02780supersedes 71651-02790i201408-201608

SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),*213; SEAT COVER MATERIAL-LEATHER,*213

main71651-02781supersedes 71651-02791i201708

SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH,*213; SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT),*213

main71651-02790i201608-201708

*348; REAR ARMREST-WITH; REAR ARMREST-WITH&SRS AIR BAG-W(*CUSA, *DRP, CUSHION, KNEE & SIDE)

main71651-02800supersedes 71651-02790i201608-201708

SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH,*348; SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT),*348

main71651-02802supersedes 71651-02791i201708

SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH,*348; SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT),*348

71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71652-02450i201308-201608

*213

main71652-02451i201708

*213

main71652-02660i201308-201608

*348; MEXICO DECONTENT

main71652-02661i201708

*348

main71652-02510i201308-201608

SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),*213; SEAT COVER MATERIAL-LEATHER,*213

main71652-02511i201708

SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH,*213; SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT),*213

main71652-02670i201308-201608

SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),*348; SEAT COVER MATERIAL-LEATHER,*348

main71652-02672i201708

SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH,*348; SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT),*348

71931ASUPPORT, REAR SEAT HEADREST

main71930-44020-21supersedes 71970-02040-C0i201710

W(LOCK),BLACK,TRIM1#; W(LOCK),BLACK,TRIM1#,*348; W(LOCK),BLACK,TRIM2#; W(LOCK),BLACK,TRIM2#,*348; W(LOCK),BLACK,TRIM2#,4#,8#; W(LOCK),BLACK,TRIM2#,4#,8#,*348

main71930-44020-A0supersedes 71970-02040-A0i201404-201608

W(LOCK),IVORY,TRIM0#

main71930-44020-A7supersedes 71970-02040-A1i201608

W(LOCK),FLAXEN,TRIM0#; W(LOCK),FLAXEN,TRIM0#,*348

main71930-44020-B2supersedes 71970-02040-B9i201608

W(LOCK),GRAY,TRIM1#; W(LOCK),GRAY,TRIM1#,*348

main71930-44020-C0supersedes 71970-02040-C0i201608-201710

W(LOCK),BLACK,TRIM1#; W(LOCK),BLACK,TRIM1#,*348; W(LOCK),BLACK,TRIM2#; W(LOCK),BLACK,TRIM2#,*348; W(LOCK),BLACK,TRIM2#,4#,8#; W(LOCK),BLACK,TRIM2#,4#,8#,*348

main71931-47010-02i201608

W/O(LOCK),FLAXEN,TRIM0#; W/O(LOCK),FLAXEN,TRIM0#,*348

main71931-47010-A0i201408-201608

W/O(LOCK),IVORY,TRIM0#,*348

main71931-47010-C0i201608-201710

W/O(LOCK),BLACK,TRIM1#; W/O(LOCK),BLACK,TRIM1#,*348; W/O(LOCK),BLACK,TRIM2#; W/O(LOCK),BLACK,TRIM2#,*348; W/O(LOCK),BLACK,TRIM2#,4#,8#; W/O(LOCK),BLACK,TRIM2#,4#,8#,*348

main71931-47010-C8i201710

W/O(LOCK),BLACK,TRIM1#; W/O(LOCK),BLACK,TRIM1#,*348; W/O(LOCK),BLACK,TRIM2#; W/O(LOCK),BLACK,TRIM2#,*348; W/O(LOCK),BLACK,TRIM2#,4#,8#; W/O(LOCK),BLACK,TRIM2#,4#,8#,*348

main71931-47010-P4i201608

W/O(LOCK),GRAY,TRIM1#; W/O(LOCK),GRAY,TRIM1#,*348

main71956-02040-A0i201408-201608

W/O(LOCK),IVORY,TRIM0#,*213

main71956-02040-B3i201408-201608

W/O(LOCK),GRAY,TRIM1#,*213

main71956-02040-C0i201608

W/O(LOCK),BLACK,TRIM1#,*213; W/O(LOCK),BLACK,TRIM2#,*213; W/O(LOCK),BLACK,TRIM2#,4#,8#,*213

main71970-02040-A0i201408-201608

W(LOCK),IVORY,TRIM0#,*213

main71970-02040-B9i201408-201608

W(LOCK),GRAY,TRIM1#,*213

main71970-02040-C0i201408-201601

W(LOCK),BLACK,TRIM4#,*213

main71930-52030-C0i201308-201608

W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(*DRP(SEAT CUSHION &BACK)),BLACK,TRIM2#,*213; W(LOCK)&W(BUTTON),SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#,*213

main71931-42020-C0i201608

W(LOCK)&W/O(BUTTON),SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH,BLACK,TRIM2#,*213; W(LOCK)&W/O(BUTTON),SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT),BLACK,TRIM2#,*213

main71931-47010i201608-201708

W/O(LOCK),MEXICO DECONTENT

71960BHEADREST ASSY, REAR SEAT, CENTER

main71960-02B50-B1i201608

STEEL GRAY,TRIM1#; STEEL GRAY,TRIM1#,*348

main71960-02B50-B2supersedes 71960-02C90-B2i201404-201608

STEEL GRAY,TRIM1#

main71960-02B60-A2i201404-201608

IVORY,TRIM0#

main71960-02B60-A6i201608-201707

FLAXEN,TRIM0#,*348

main71960-02B60-B2i201404-201608

GRAY,TRIM1#

main71960-02B60-B6i201608-201707

GRAY,TRIM1#,*348

main71960-02B60-C3i201608-201708

BLACK,TRIM2#

main71960-02B60-E2i201308-201608

BLACK,TRIM4#,*348

main71960-02B61-A6i201708

FLAXEN,TRIM0#,*348

main71960-02B61-B6i201708

GRAY,TRIM1#,*348

main71960-02B61-C3i201708

BLACK,TRIM2#,*348

main71960-02B70-C2i201308-201608

BLACK,TRIM2#,4#,8#,*348; SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),BLACK,TRIM2#,*348; SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#,*348

main71960-02B70-C6i201608-201709

BLACK/BLUE,TRIM2#,8#; BLACK/BLUE,TRIM2#,8#,*348

main71960-02B70-C8i201608-201709

BLACK/ORANGE,TRIM4#; BLACK/ORANGE,TRIM4#,*348

main71960-02B71-C6i201709

BLACK/BLUE,TRIM2#,8#; BLACK/BLUE,TRIM2#,8#,*348

main71960-02B71-C8i201709

BLACK/ORANGE,TRIM4#; BLACK/ORANGE,TRIM4#,*348

main71960-02C90-B1i201608

STEEL GRAY,TRIM1#,*213

main71960-02D00-A2i201308-201608

IVORY,TRIM0#,*213

main71960-02D00-A6i201608-201707

FLAXEN,TRIM0#,*213

main71960-02D00-B2i201308-201608

GRAY,TRIM1#,*213

main71960-02D00-B6i201608-201707

GRAY,TRIM1#,*213

main71960-02D00-E2i201308-201608

BLACK,TRIM4#,*213

main71960-02D01-A6i201708

FLAXEN,TRIM0#,*213

main71960-02D01-B6i201708

GRAY,TRIM1#,*213

main71960-02D01-C3i201708

BLACK,TRIM2#,*213

main71960-02D10-20i201608

BLACK/ORANGE,TRIM4#,*213

main71960-02D10-C2i201308-201608

BLACK,TRIM2#,4#,8#,*213; SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),BLACK,TRIM2#,*213; SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#,*213

main71960-02D10-C8i201608

BLACK/BLUE,TRIM2#,8#,*213

main71960-02B70i201608-201708

REAR ARMREST-WITH

main71960-02B70-C7supersedes 71960-02D00-C3i201608-201709

SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH,BLACK,TRIM2#,*348; SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT),BLACK,TRIM2#,*348

main71960-02B71-C7supersedes 71960-02D00-C3i201709

SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH,BLACK,TRIM2#,*348; SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT),BLACK,TRIM2#,*348

main71960-02D10-C9supersedes 71960-02D00-C3i201608

SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH,BLACK,TRIM2#,*213; SEAT COVER MATERIAL-LEATHER&W(*DRS:POWER SEAT & *PAS:MANUAL SEAT),BLACK,TRIM2#,*213

72630CLOCK ASSY, REAR SEATBACK, RH

main72630-02120i201608

72640ALOCK ASSY, REAR SEATBACK, LH

main72640-02120i201608

72646AGROMMET, REAR SEATBACK STOP BUTTON

main72646-33010-A0i201308-201408

IVORY,TRIM01,*348

main72646-33010-A3i201608

FLAXEN,TRIM0#; FLAXEN,TRIM0#,*348

main72646-33010-B8i201608

GRAY,TRIM1#; GRAY,TRIM1#,*348

main72646-33010-C0supersedes 72646-AA020-C0i201608
