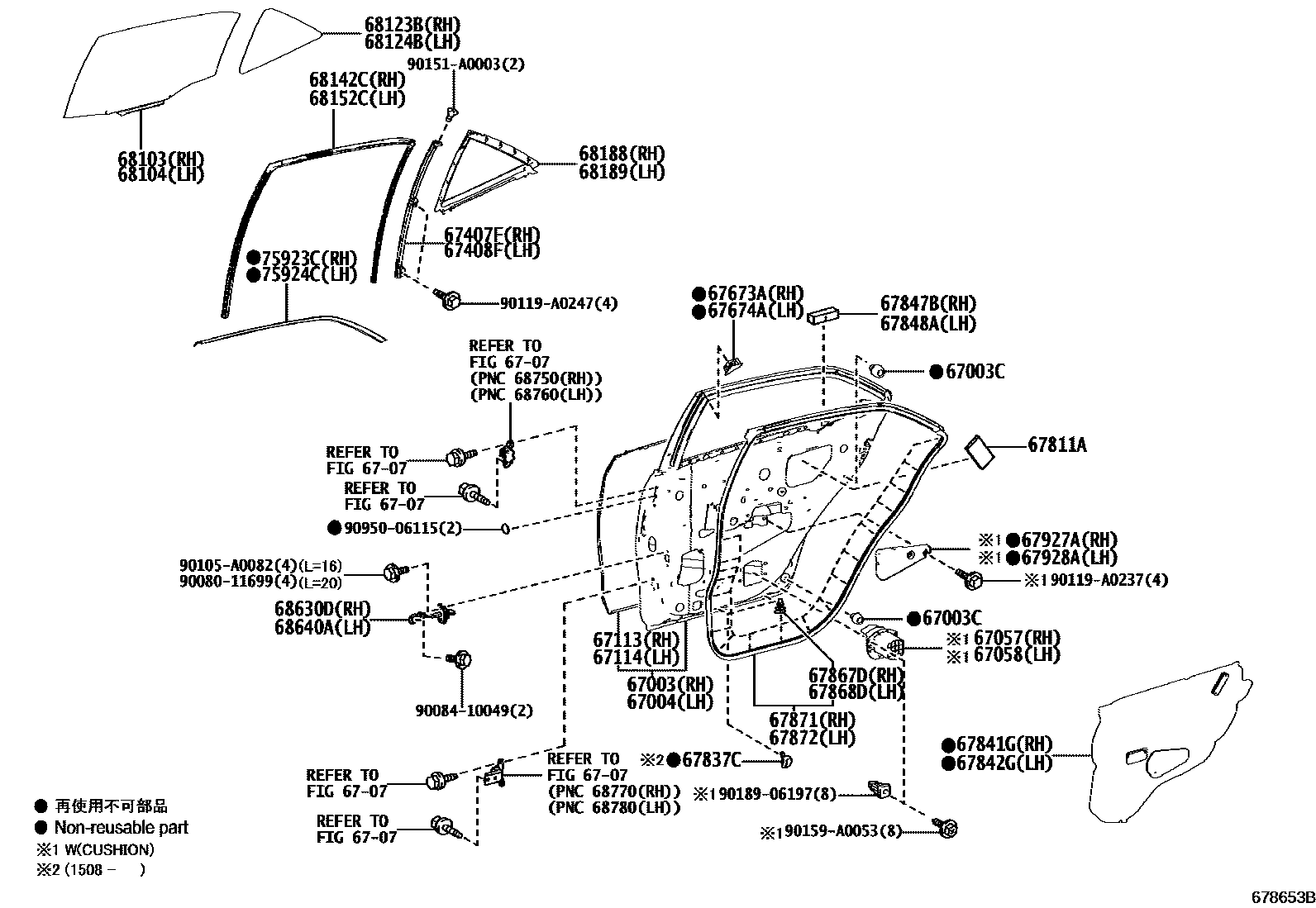

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-02400iZRE172..(CVT,MTM)..MXC201308-201608

main67003-02520iZRE172..GEN201608

67003CCUSHION, REAR DOOR PANEL

main90541-09124×4iZRE172201608

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-02400iZRE172..MXC201608

main67004-02520iZRE172..(CVT,MTM)..STD..MXC; ZRE172..GEN201404-201608

MEXICO DECONTENT

67057REINFORCE SUB-ASSY, REAR DOOR INSIDE PANEL, RH

main67057-02010iZRE172..4FC201308-201408

67058REINFORCE SUB-ASSY, REAR DOOR INSIDE PANEL, LH

main67057-02010iZRE172..4FC201308-201408

6707REAR DOOR WINDOW REGULATOR & HINGE

→ Go to FIG 67-07

67113PANEL, REAR DOOR, OUTER RH

main67113-02190iZRE172..4FC201308-201408

67114PANEL, REAR DOOR, OUTER LH

main67114-02190iZRE172..4FC201308-201408

67407FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH

main67407-02110iZRE172..4FC201308-201408

67408FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH

main67408-02110iZRE172..4FC201308-201408

67673AGARNISH, REAR DOOR FRAME, RH

main67673-0E010iZRE172..4FC201308-201408

67674AGARNISH, REAR DOOR FRAME, LH

main67674-0E010iZRE172..4FC201308-201408

67811APAD, REAR DOOR SILENCER

main67811-AA040×2iZRE172..4FC201308-201408

67837CSEAL, REAR DOOR DUST PROOF

main67837-0E060×4iZRE172201508-201608

67841GCOVER, SLIDE DOOR SERVICE HOLE, RH

main67841-02260iZRE172..4FC201308-201408

67842GCOVER, SLIDE DOOR SERVICE HOLE, LH

main67842-02240iZRE172..4FC201308-201408

67847BSEAL, REAR DOOR VENT, RH NO.1

main67847-02030iZRE172..4FC201308-201408

67848ASEAL, REAR DOOR VENT, LH NO.1

main67847-02030iZRE172..4FC201308-201408

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-12150×18iZRE172201608

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-12150×18iZRE172..4FC201308-201408

67871WEATHERSTRIP, REAR DOOR, RH

main67871-02230iZRE172..4FC201308-201408

67872WEATHERSTRIP, REAR DOOR, LH

main67872-02230iZRE172..4FC201308-201408

67927ACUSHION, REAR DOOR STIFFENER, RH

main67927-02050iZRE172..4FC201308-201408

67928ACUSHION, REAR DOOR STIFFENER, LH

main67928-02060iZRE172..4FC201308-201408

68103GLASS SUB-ASSY, REAR DOOR, RH

main68103-02400iZRE172..4FC201308-201408

*TEM,T=3.1,GREEN

68104GLASS SUB-ASSY, REAR DOOR, LH

main68104-02400iZRE172..4FC201308-201408

*TEM,T=3.1,GREEN

68123BGLASS, REAR DOOR QUARTER WINDOW, RH

main68123-02320iZRE172..4FC201308-201408

*TEM,T=3.1,GREEN

68124BGLASS, REAR DOOR QUARTER WINDOW, LH

main68124-02320iZRE172..4FC201308-201408

*TEM,T=3.1,GREEN

68142CRUN, REAR DOOR GLASS, RH

main68142-02290iZRE172..4FC201308-201408

68152CRUN, REAR DOOR GLASS, LH

main68152-02290iZRE172..4FC201308-201408

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-02160iZRE172..4FC201308-201408

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-02160iZRE172..4FC201308-201408

68630DCHECK ASSY, REAR DOOR, RH

main68630-02240iZRE172..4FC201308-201408

68640ACHECK ASSY, REAR DOOR, LH

main68630-02240iZRE172..4FC201308-201408

75923CTAPE, BLACK OUT, NO.2 RH

main75923-02220iZRE172..4FC201308-201408

75924CTAPE, BLACK OUT, NO.2 LH

main75924-02220iZRE172..4FC201308-201408

9008011699

main90080-11699

9008410049

main90084-10049

90105A0082

main90105-A0082

90119A0237

main90119-A0237

90119A0247

main90119-A0247

90151A0003

main90151-A0003

90159A0053

main90159-A0053

9018906197

main90189-06197

9095006115

main90950-06115

45 parts on this diagram · 2 diagrams in section
