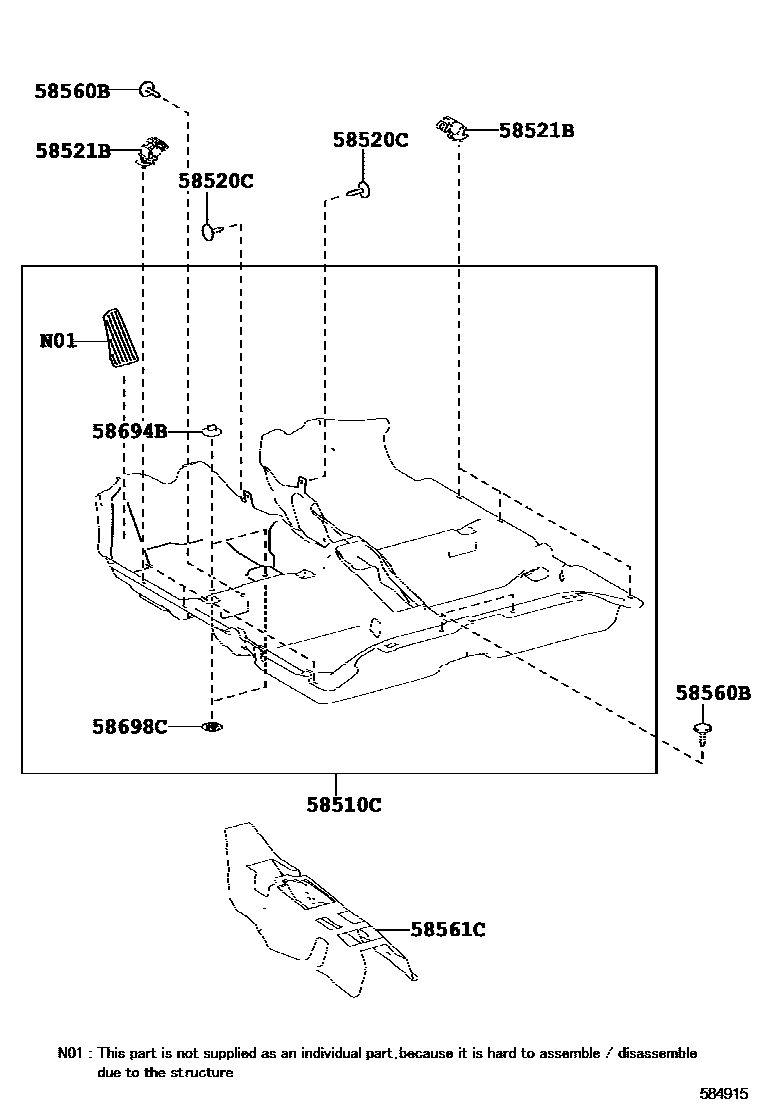

MAT & CARPET
58510CCARPET ASSY, FRONT FLOOR, FRONT
BLACK,TRIM1#; BLACK,TRIM2#,4#,8#
BLACK,TRIM0#,1#,4#; BLACK,TRIM1#; BLACK,TRIM2#,4#,8#
BLACK,TRIM0#,1#,4#; BLACK,TRIM1#; BLACK,TRIM2#,4#,8#
BLACK,TRIM0#,1#,2#; BLACK,TRIM1#; BLACK,TRIM2#,4#,8#
BLACK,TRIM0#,1#,2#; BLACK,TRIM1#; BLACK,TRIM2#,4#,8#
BLACK,TRIM0#,1#,4#
main58510-02M31-C0iZRE172..CVT..LE..GEN; ZRE172..CVT..S; ZRE172..CVT..STD; ZRE172..LE..MXC201508-201608
BLACK,TRIM0#,1#,2#,4#; BLACK,TRIM0#,1#,4#; BLACK,TRIM1#; BLACK,TRIM2#,4#,8#
main58510-02M32-C0iZRE172..CVT..LE..GEN; ZRE172..CVT..S; ZRE172..CVT..STD; ZRE172..LE..MXC201507-201508
BLACK,TRIM0#,1#,2#,4#; BLACK,TRIM0#,1#,4#; BLACK,TRIM1#; BLACK,TRIM2#,4#,8#
58520CCLIP(FOR FRONT FLOOR CARPET)
main90467-05164-C0×2iZRE172..6F..STD..MXC;ZRE172..(ATM,CVT)..STD; ZRE172..LE..MXC; ZRE172..S201308-201608
BLACK,TRIM0#,1#,2#,4#; BLACK,TRIM1#; BLACK,TRIM2#,4#,8#
BLACK,TRIM0#,1#,2#; BLACK,TRIM1#; BLACK,TRIM2#,4#,8#
58521BHOOK, FLOOR CARPET
58560BCLIP(FOR FLOOR CARPET, REAR)
BLACK,TRIM0#,1#,2#; BLACK,TRIM1#; BLACK,TRIM2#,4#,8#
BLACK,TRIM0#,1#,2#; BLACK,TRIM1#; BLACK,TRIM2#,4#,8#
58561CSILENCER, FRONT FLOOR, NO.1
58694BPLATE, MAT SET, UPPER
58698CPLATE, MAT SET, LOWER
7 parts on this diagram · 1 diagram in section
