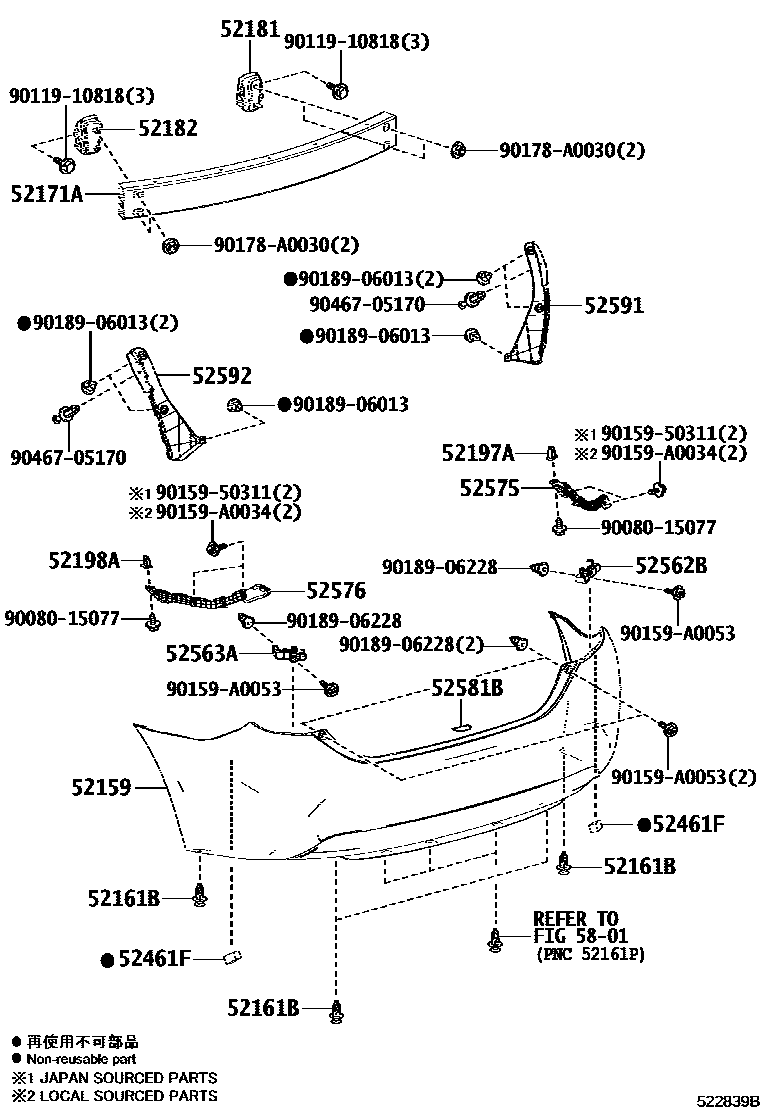

REAR BUMPER & BUMPER STAY

52159COVER, REAR BUMPER

main52159-03901iZRE172..4FC201308-201408

PAINT REQ.

52161BPIECE, REAR BUMPER

main52161-02020×4iZRE172..4FC201308-201408

52171AREINFORCEMENT, REAR BUMPER, NO.1

main52171-02230iZRE172..4FC201308-201408

52181ARM, REAR BUMPER, RH

main52181-02160iZRE172..4FC201308-201408

52182ARM, REAR BUMPER, LH

main52182-02130iZRE172..4FC201308-201408

52197ABRACKET, REAR BUMPER SEAL, RH

main52197-22020iZRE172..4FC201308-201408

52198ABRACKET, REAR BUMPER SEAL, LH

main52197-22020iZRE172..4FC201308-201408

52461FPAD, REAR BUMPER

main52462-02150×2iZRE172..4FC201308-201408

52562BRETAINER, REAR BUMPER, UPPER RH

main52562-02210iZRE172..4FC201308-201408

52563ARETAINER, REAR BUMPER, UPPER LH

main52563-02210iZRE172..4FC201308-201408

52575RETAINER, REAR BUMPER SIDE, RH

main52575-02110iZRE172..4FC201308-201408

52576RETAINER, REAR BUMPER SIDE, LH

main52576-02110iZRE172..4FC201308-201408

52581BPROTECTOR, REAR BUMPER

main52581-02020iZRE172..4FC201308-201408

52591SEAL, REAR BUMPER SIDE, RH

main52591-02270iZRE172..4FC201308-201408

main52591-02271iZRE172201601-201608

52592SEAL, REAR BUMPER SIDE, LH

main52592-02260iZRE172..4FC201308-201408

main52592-02261iZRE172201601-201608

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

9008015077

main90080-15077

9011910818

main90119-10818

9015950311

main90159-50311

90159A0034

main90159-A0034

90159A0053

main90159-A0053

90178A0030

main90178-A0030

9018906013

main90189-06013

9018906228

main90189-06228

9046705170

main90467-05170

25 parts on this diagram · 1 diagram in section
