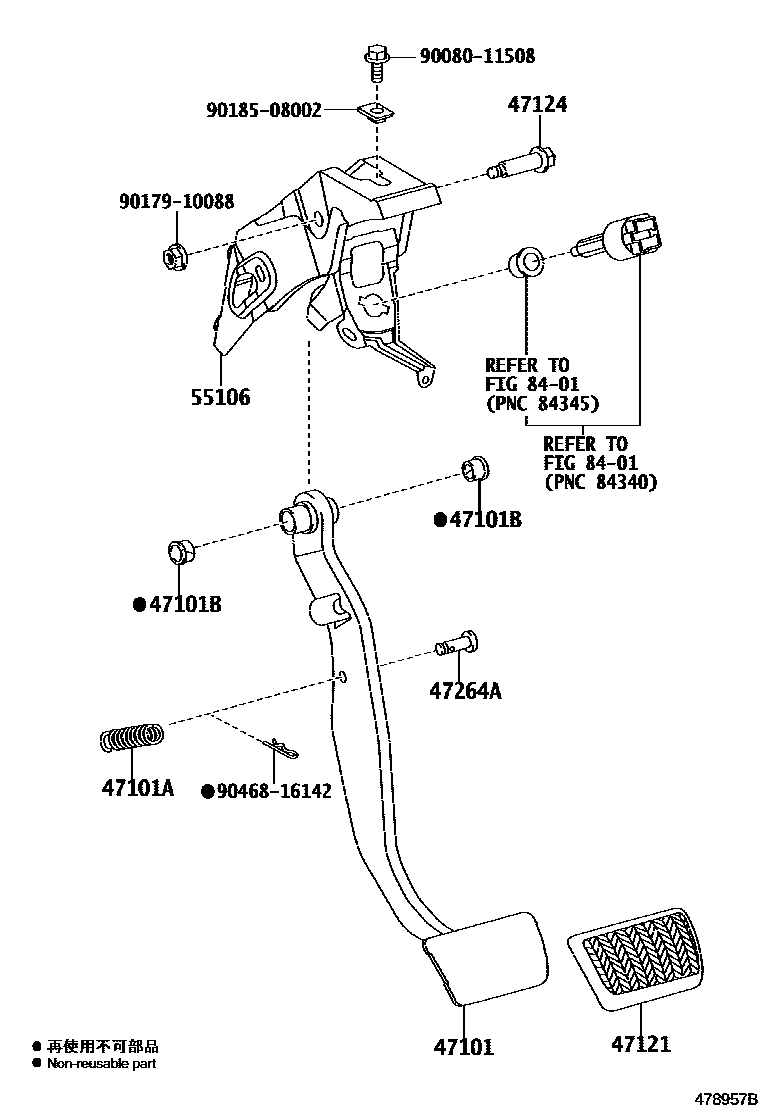

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-02510iZRE172..6F201308-201608

main47101-02520iZRE172..4FC201308-201408

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-15007iZRE172..4FC201308-201408

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015×2iZRE172..4FC201308-201408

47121PAD, BRAKE PEDAL

main31321-42010iZRE172..6F201308-201608

main47121-42010iZRE172..CVT201308-201608

47124SHAFT, BRAKE PEDAL

main90109-10174iZRE172..4FC201308-201408

47264APIN(FOR PUSH ROD)

main90249-08256iZRE172..4FC201308-201408

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-02150iZRE172..4FC201308-201408

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9008011508

main90080-11508

9017910088

main90179-10088

9018508002

main90185-08002

9046816142

main90468-16142

12 parts on this diagram · 1 diagram in section
