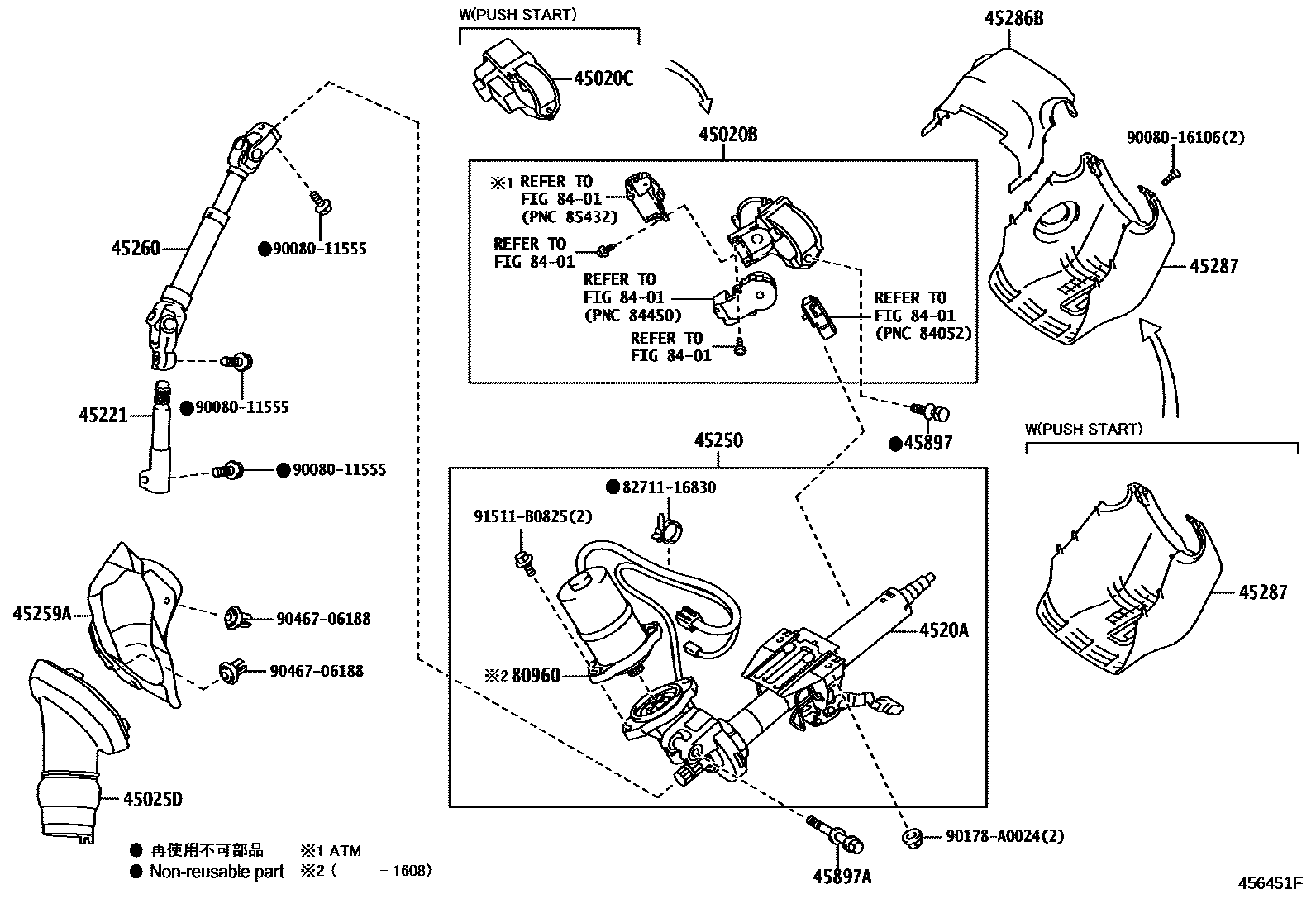

STEERING COLUMN & SHAFT
45020BACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK
45020CACTUATOR ASSY, STEERING LOCK(W/ECU)
STARTING SYSTEM-PUSH(WITH/SMART)
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
4520ACOLUMN SUB-ASSY, ELECTRIC POWER STEERING
STARTING SYSTEM-PUSH(WITH/SMART)
45221SHAFT, STEERING INTERMEDIATE
45250COLUMN ASSY, STEERING
45259ASHEET, COLUMN HOLE COVER SILENCER
45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45286BCOVER, STEERING COLUMN, UPR
BLACK,TRIM1#,4#
main45286-02430-C0supersedes 45286-02420-C0iZRE172..LE..GEN; ZRE172..LE..MXC; ZRE172..S..GEN; ZRE172..S..MXC201608
BLACK,TRIM0#,1#,2#; BLACK,TRIM2#,4#,8#; STARTING SYSTEM-PUSH(WITH/SMART),BLACK,TRIM0#,1#,2#; STARTING SYSTEM-PUSH(WITH/SMART),BLACK,TRIM2#,4#,8#
45287COVER, STEERING COLUMN, LWR
BLACK,TRIM0#,1#,2#; BLACK,TRIM1#; BLACK,TRIM2#,4#,8#
main45024-02030-C0supersedes 45024-02020-C0iZRE172..LE..GEN; ZRE172..LE..MXC; ZRE172..S..GEN; ZRE172..S..MXC201608
BLACK,TRIM0#,1#,2#; BLACK,TRIM2#,4#,8#; STARTING SYSTEM-PUSH(WITH/SMART),BLACK,TRIM0#,1#,2#; STARTING SYSTEM-PUSH(WITH/SMART),BLACK,TRIM2#,4#,8#
BLACK,TRIM0#,1#,2#,4#; BLACK,TRIM1#; BLACK,TRIM2#,4#,8#
BLACK,TRIM0#,1#,4#; BLACK,TRIM2#,4#,8#
45897BOLT, STEERING LOCK SET
45897ABOLT, TILT STEERING PAWL SET
80960MOTOR ASSY, POWER STEERING
8401SWITCH & RELAY & COMPUTER
8271116830WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-16830
9008011555
main90080-11555
9008016106
main90080-16106
90178A0024
main90178-A0024
9046706188
main90467-06188
91511B0825
main91511-B0825
20 parts on this diagram · 1 diagram in section
